- Coaxial RF current monitoring without interrupting the cable.
- Measures conducted RF current on coaxial cable shields.
- Outputs a voltage proportional to RF current for analysis.
- Designed for EMC pre-compliance and RF system diagnostics.
- Compact and rugged design suitable for lab and field use.
TBCCP1-400K600

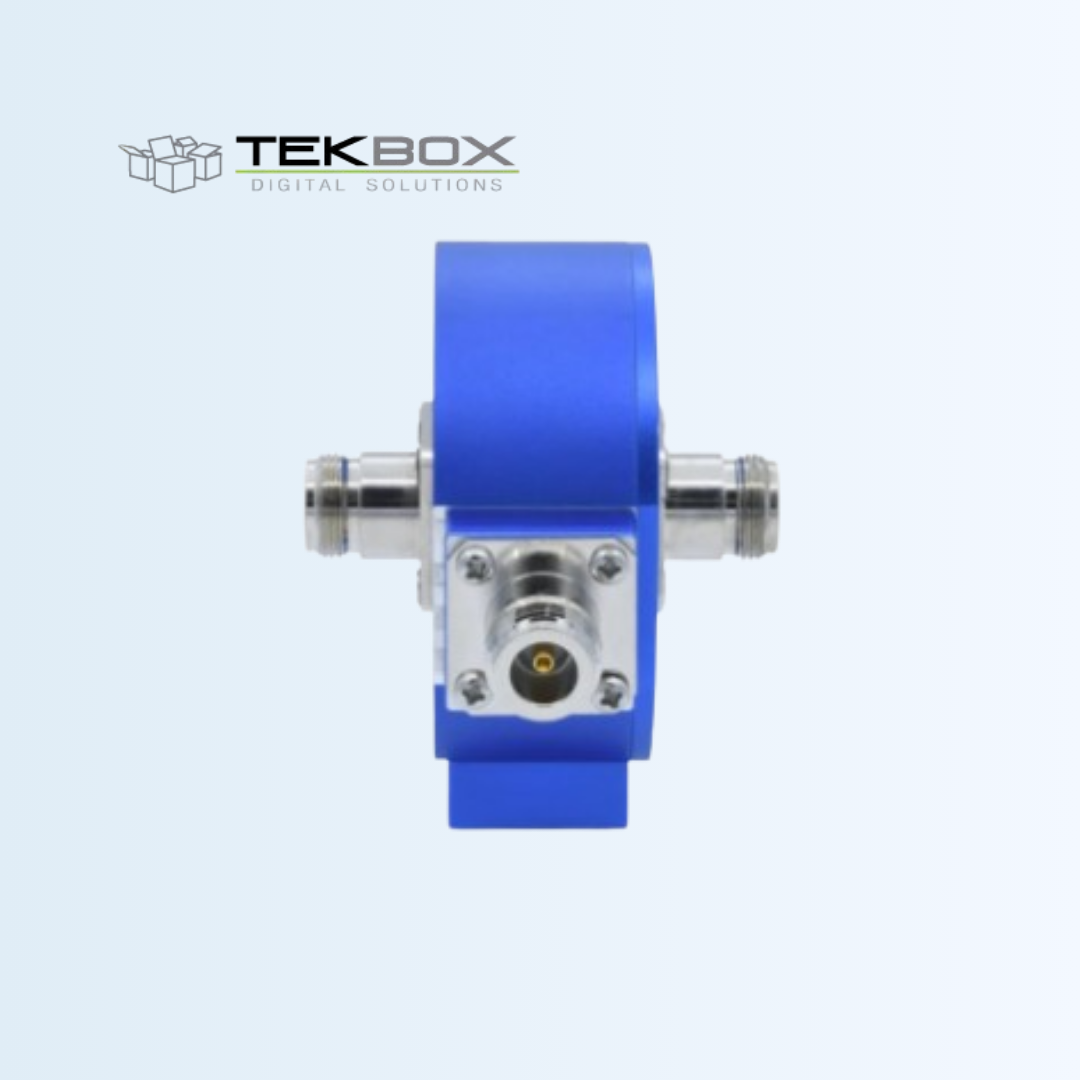

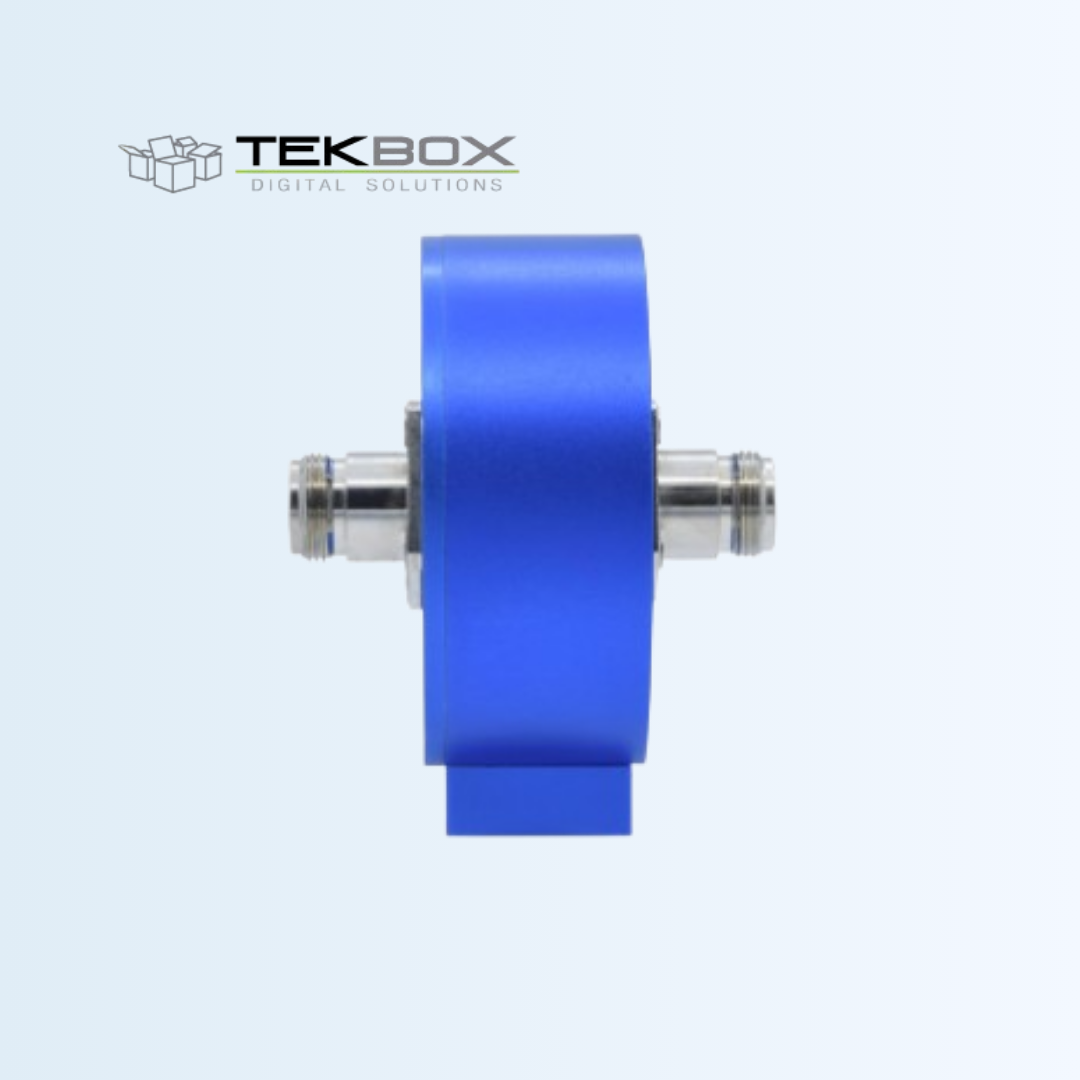

Coaxial RF Current Monitoring Probe
The TBCCP1-400K600 is a coaxial RF current monitoring probe designed to measure the RF current flowing on coaxial cables non-intrusively, without the need to disconnect the cable. Its frequency range supports conducted emission measurement and EMC troubleshooting across a broad band. The device outputs a voltage proportional to the RF current in the cable shield, enabling accurate current analysis with standard RF test equipment.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 10 Hz to 600 MHz |
| Transfer impedance | 23 dB Ohm |
| 3 dB bandwidth | 400 kHz to 600 MHz, typ. |
| Dimensions | 76 mm x 102 x 69 mm |
| Weight | 400 g |
| Connector type | N female |
| Max. primary current (RF) | 3 A |
| Max. core temperature | 125 °C |
