- Non-intrusive RF pulse current measurement.
- Designed to detect transient and pulsed current events.
- Suitable for conducted emission and EMC analysis.
- Robust construction for reliable use in lab and field measurements.
- Provides proportional voltage output for pulse current analysis.

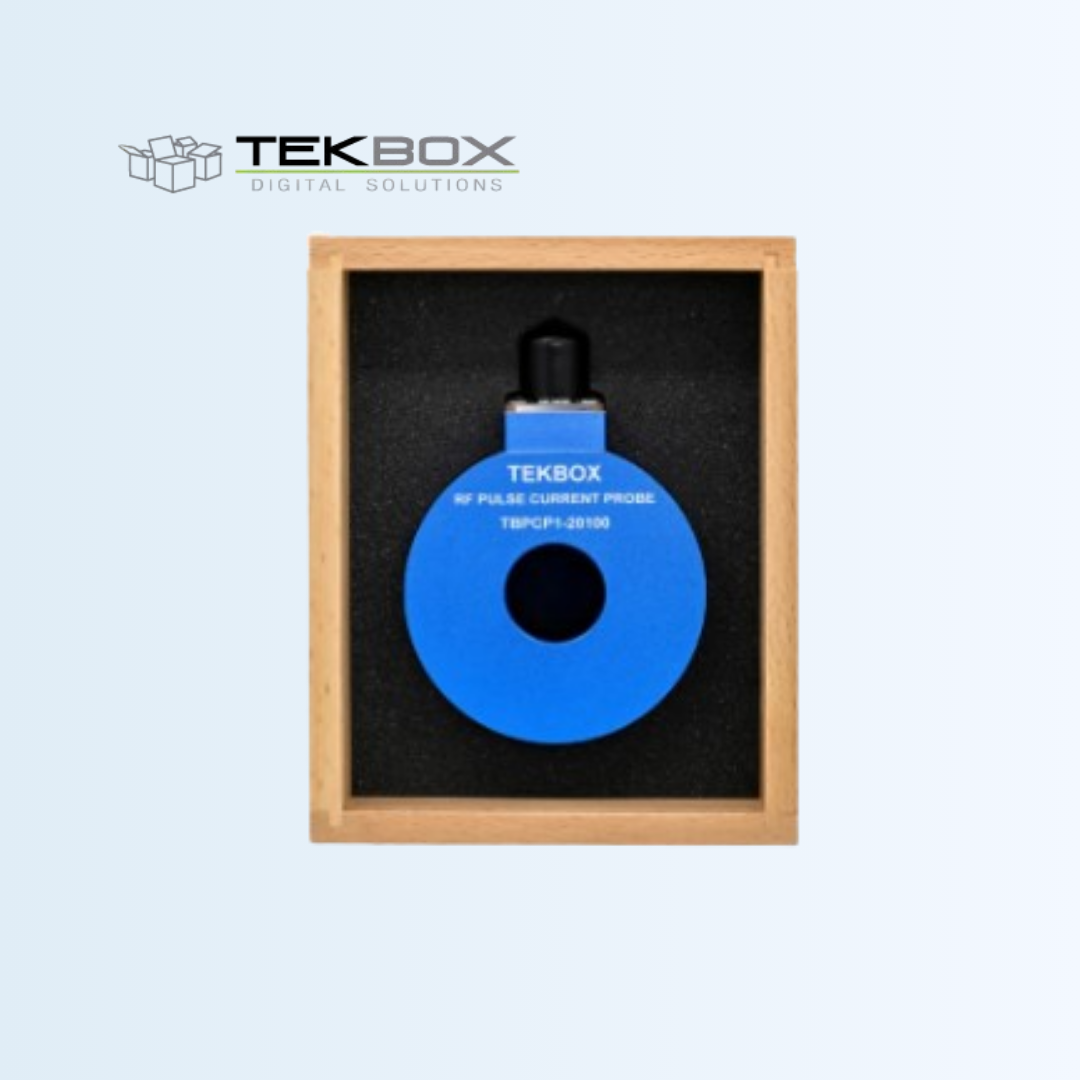

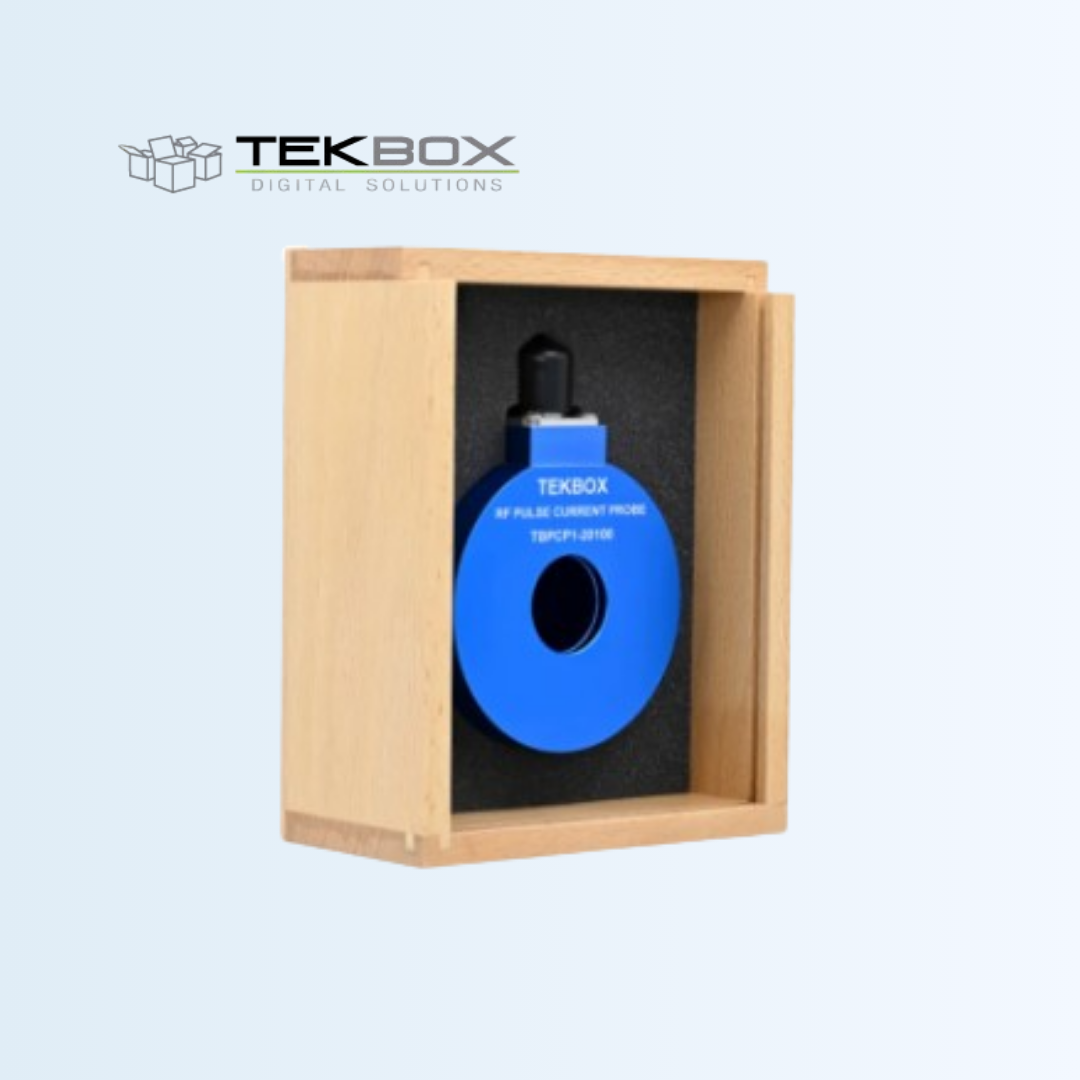

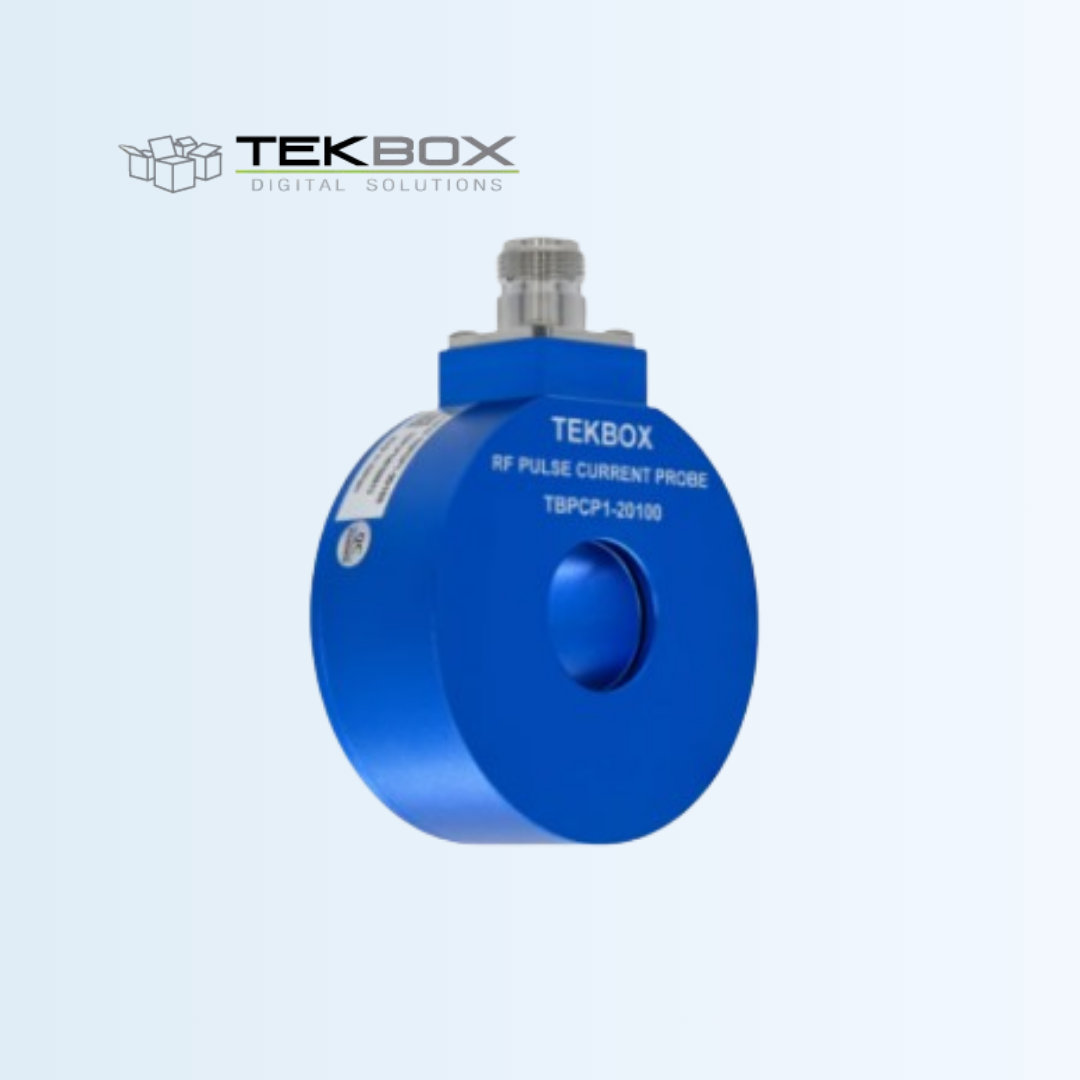

TBPCP1-20100
RF pulse current monitoring probe
The TBPCP1-20100 is a RF pulse current monitoring probe, expanding the Tekbox product range of affordable test equipment. The probe has a very flat response from 20 Hz to 100 MHz and is characterized over the frequency range from 1 Hz to 200 MHz. The TBPCP1-20100 is typically used for surge or RF pulse current monitoring applications in the time domain, in contrary to RF current monitoring probes designed for EMC applications, which are typically used for measurements in the frequency domain. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is -20 dB Ohm with a typical 3dB bandwidth from 20 Hz to 100 MHz.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 1 Hz to 200 MHz |
| 3 dB bandwidth | 20 Hz to 100 MHz (measured in a 50 + 50 Ohm loop) |
| Transfer impedance into 50 Ohm load | -20 dB Ohm; 0.1 V/A |
| Transfer impedance into high Z | 0.2 V/A |
| Probe port impedance | 50 Ohm |
| Droop rate | 10 %/ms |
| Rise time | < 5 ns |
| Max. RMS AC current | 22 A |
| Max. pulse current | 3000 A |
| Current time product | 0.08 Ampere seconds |
| Max. core temperature | 80 °C |
| Aperture diameter | 25 mm |
| Outside diameter | 76 mm |
| Height | 31 mm |
| Weight | 320 g |
| Connector type | N female |
