- Coaxial RF current monitoring without breaking the cable.
- Measures conducted RF current on coaxial cable shields.
- Provides voltage output proportional to RF current.
- Suitable for EMC pre-compliance and diagnostics.
- Compact and rugged design for lab or field use.

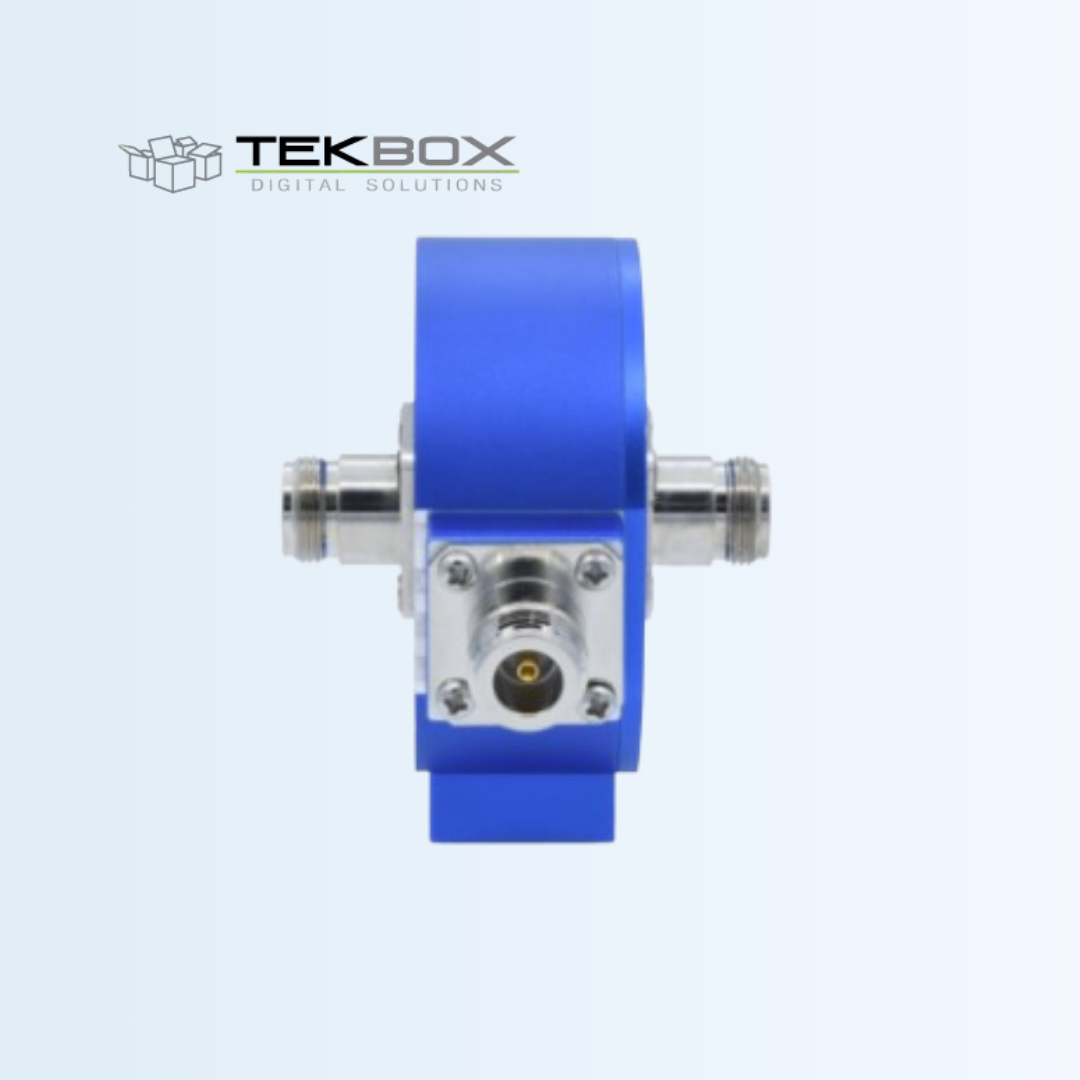

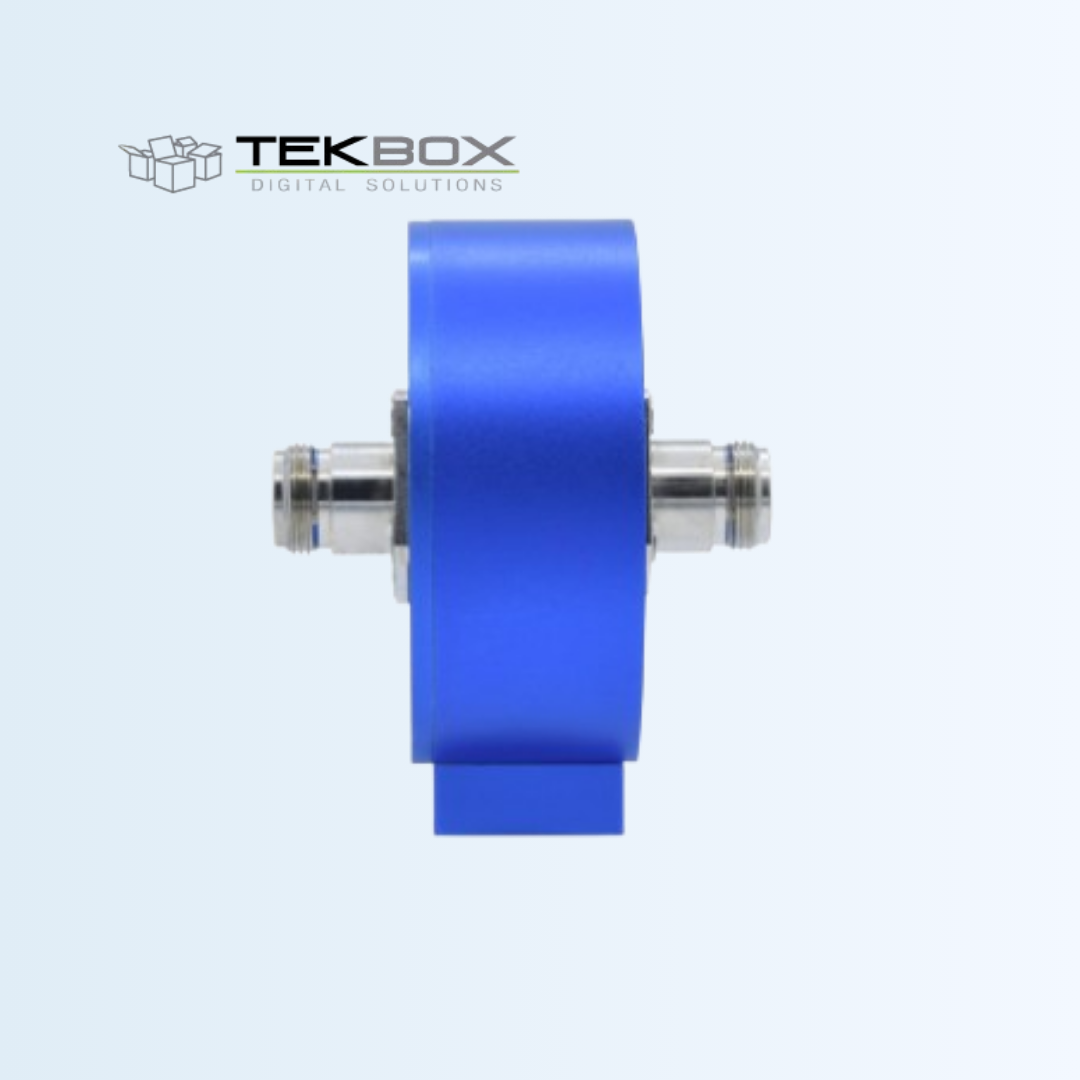

TBCCP1-3K100
Coaxial RF Current Monitoring Probe
The TBCCP1-3K100 is a coaxial RF current monitoring probe engineered to measure RF current flowing on coaxial cables without disconnecting or modifying the cable. Designed for conducted emission testing and EMC troubleshooting, this probe offers a defined frequency range and proportional voltage output that corresponds to the current in the cable shield, making it ideal for non-intrusive current measurement in RF systems.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 10 Hz to 100 MHz |
| Transfer impedance | 5 dB Ohm |
| 3 dB bandwidth | 3 kHz to 100 MHz, typ. |
| Dimensions | 76 mm x 102 x 69 mm |
| Weight | 400 g |
| Connector type | N female |
| Max. primary current (RF) | 3 A |
| Max. core temperature | 125 °C |
