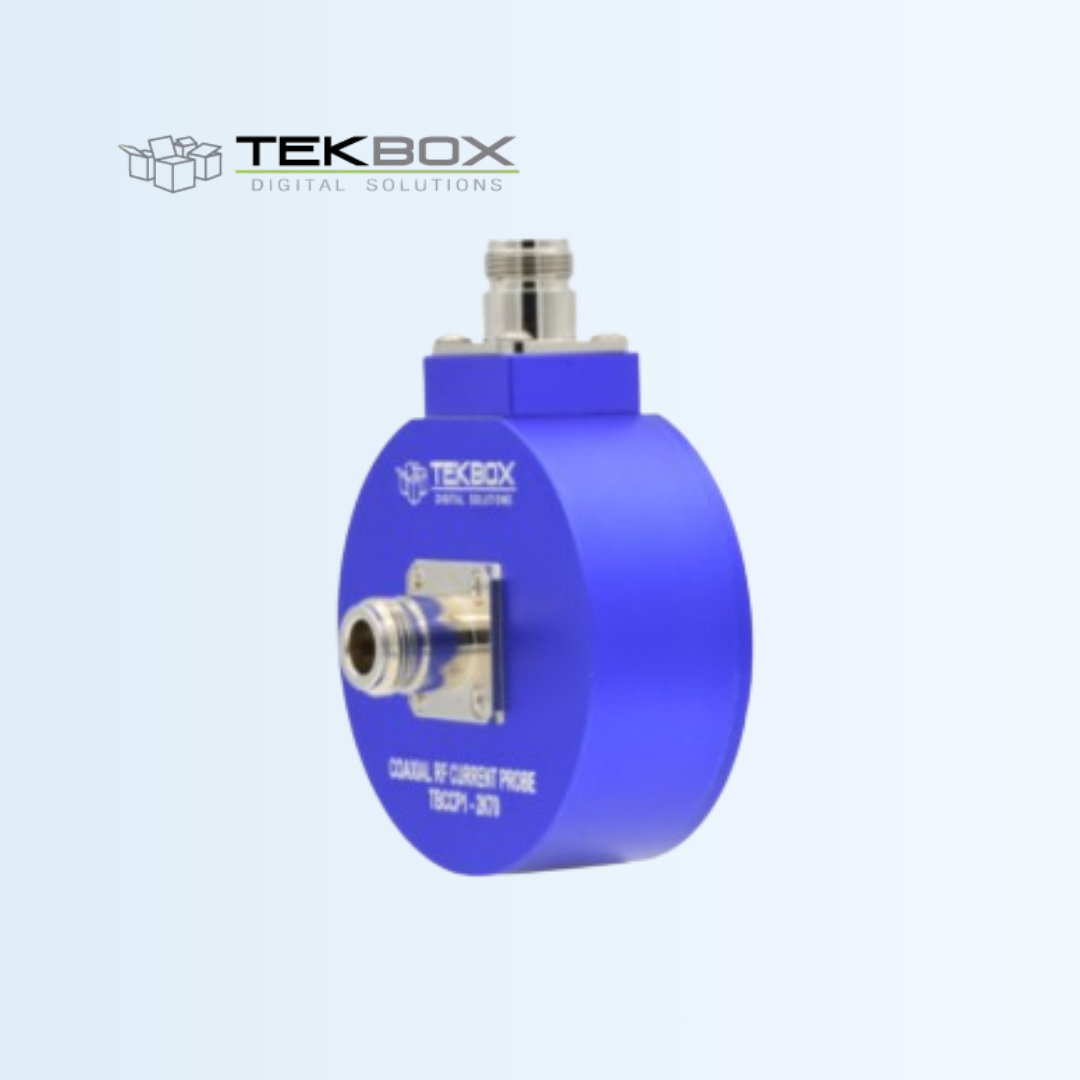

TBCCP1-2K70
Coaxial RF Current Monitoring Probe
The TBCCP1-2K70 is a coaxial RF current monitoring probe designed to measure RF current flowing on coaxial cables without interrupting the cable connection. By clamping around the coaxial line, it provides an output voltage proportional to the RF current in the cable shield. This makes it suitable for conducted emission measurements, EMC troubleshooting, and RF system diagnostics where non-intrusive current measurement is required.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 10 Hz to 100 MHz |
| Transfer impedance | 0 dBΩ when loaded with 50Ω |
| 3 dB bandwidth | 2 kHz to 70 MHz, typ. |
| Dimensions | 76 mm x 102 x 69 mm |
| Weight | 450 g |
| Connector type | N female |
| Max. primary current (RF) | 3 A |
| Max. core temperature | 125 °C |
