- Non-intrusive RF pulse current measurement.
- Detects and measures transient/pulsed current events.
- Suitable for conducted emission and EMC analysis.
- Compact and rugged design for lab and field use.
- Provides voltage output proportional to the measured current.
TBPCP2-3070

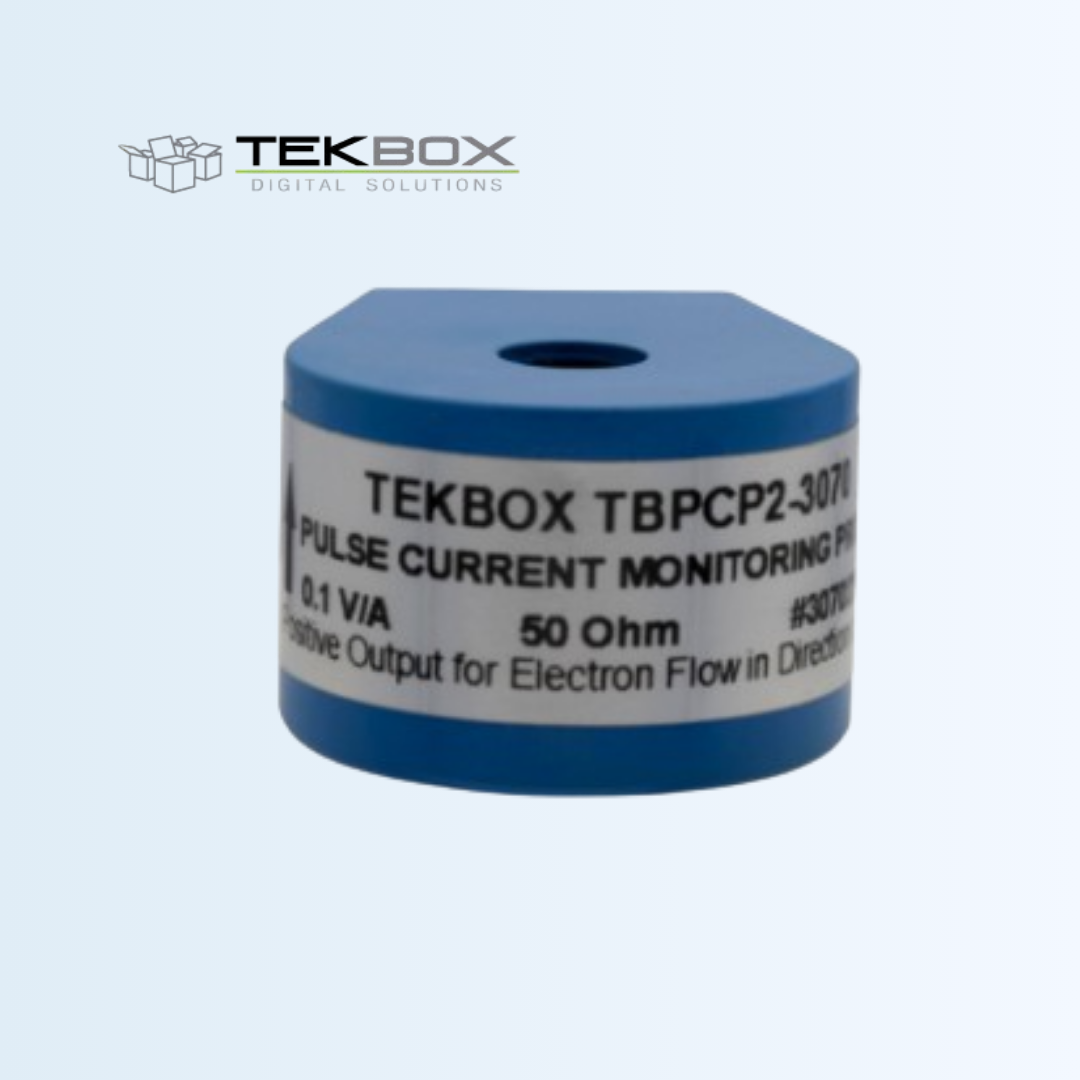

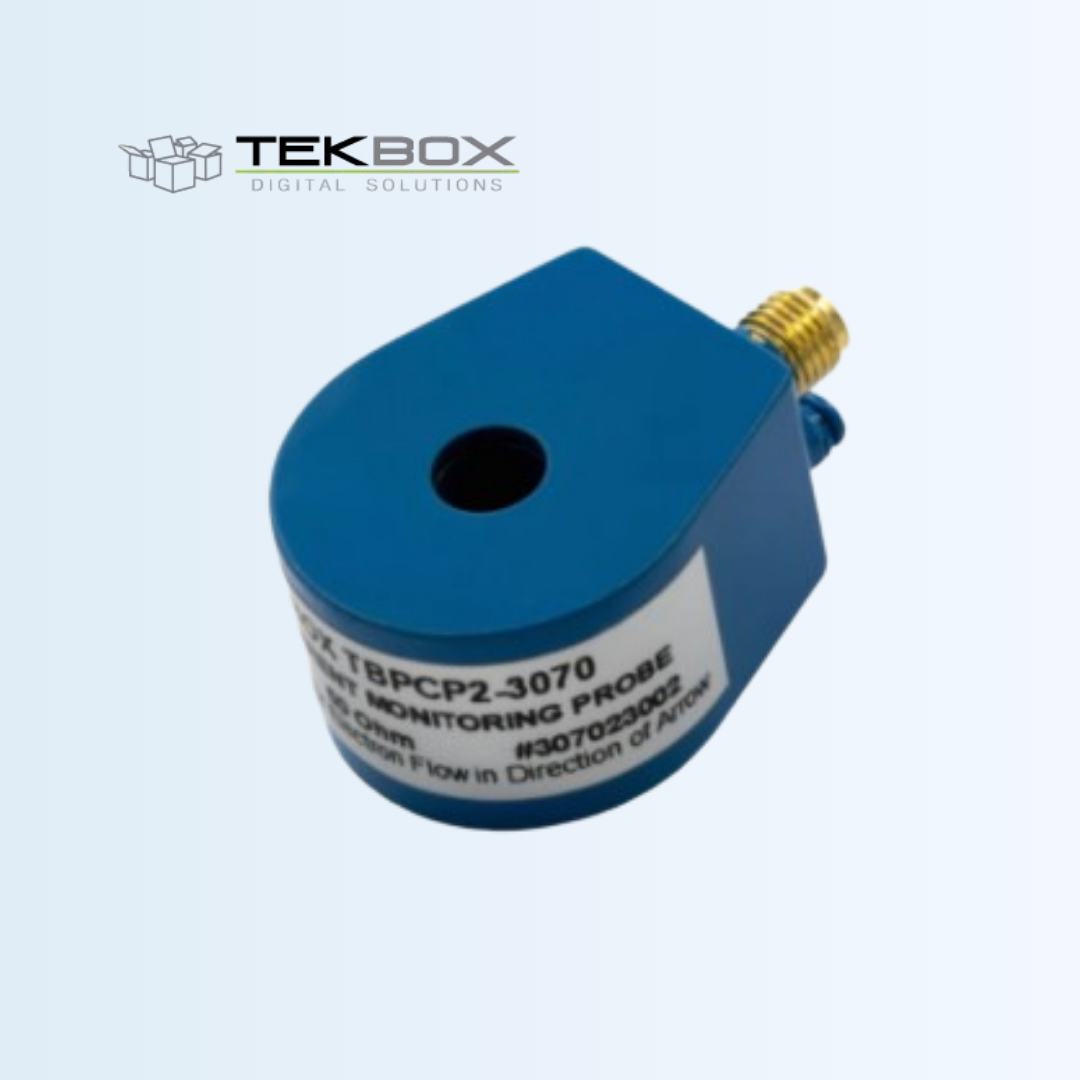

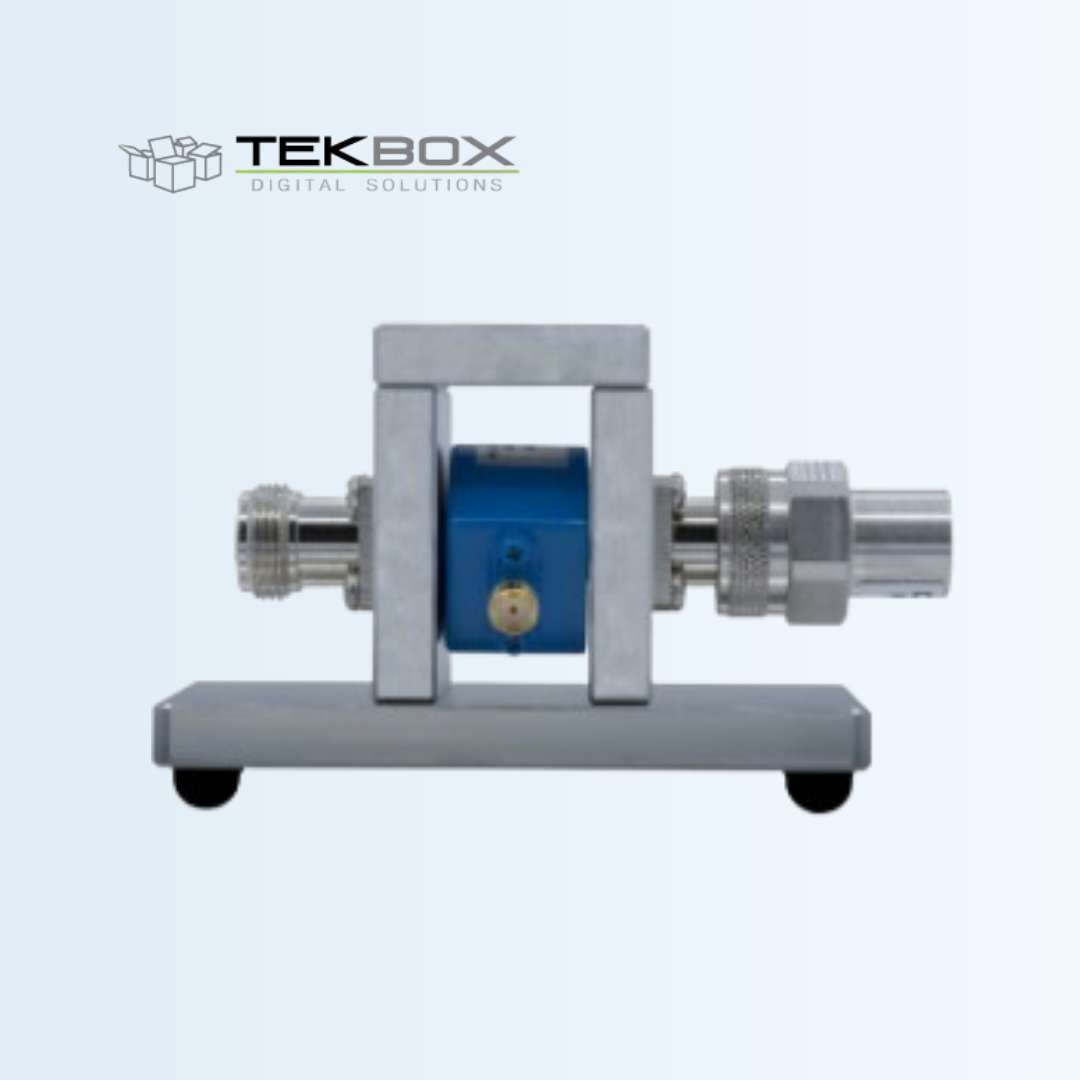

RF pulse current monitoring probe
The TBPCP2-3070 RF Pulse Current Monitoring Probe is a test probe designed to measure pulse-type and transient RF currents in cables or conductive paths non-intrusively, without disconnecting the cable. It provides reliable detection of pulsed currents over a broad frequency range, making it suitable for conducted emission analysis, EMC troubleshooting, and pulse current diagnostics in both laboratory and field environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 1 Hz to 200 MHz |
| 3 dB bandwidth | 30 Hz to 70 MHz (measured in a 50 + 50 Ohm loop) |
| Transfer impedance into 50 Ohm load | -26 dB Ohm; 0.05 V/A |
| Transfer impedance into high Z | 0.1 V/A |
| Probe port impedance | 50 Ohm |
| Droop rate | 20% / ms |
| Rise time | < 5 ns |
| Max. RMS AC current | 5 A |
| Max. pulse current | 600 A |
| Max. current time product | 0.02 Ampere seconds |
| Max. core temperature | 80 °C |
| Aperture diameter | 5.5 mm |
| Outside diameter | 27 mm |
| Length including SMA connector | 40mm |
| Height | 19 mm |
| Weight | 60 g |
| Connector type | SMA female |
