- High-pass RF filter with cutoff frequency at 150 kHz.
- Effectively reduces low-frequency noise and interference.
- Low insertion loss across the pass-band for minimal signal distortion.
- 50 Ω characteristic impedance for consistent RF performance.
- Robust and compact design for test bench or field applications.
- Suitable for use with spectrum analyzers and RF measurement systems.
- Stable and repeatable performance due to precision engineering.

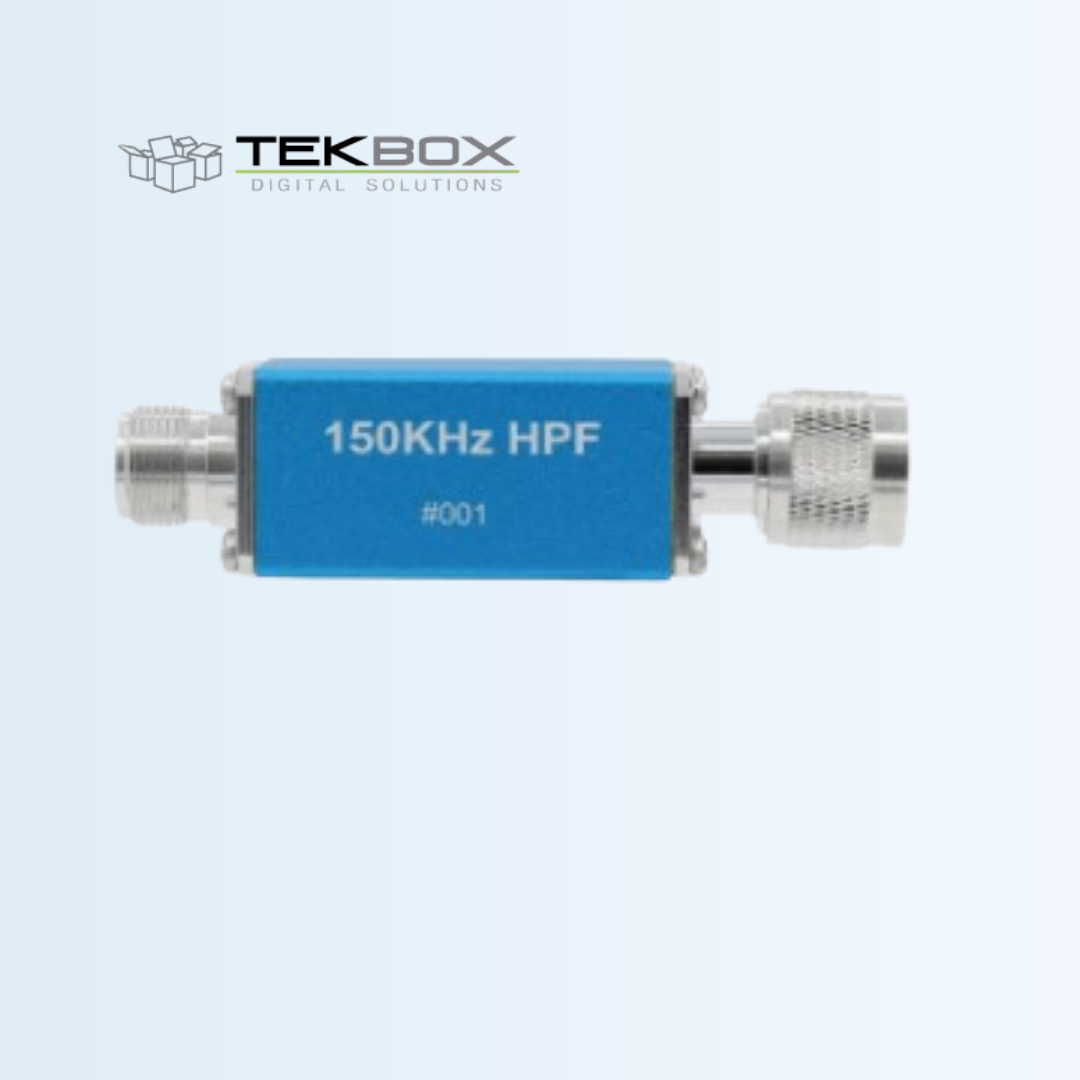

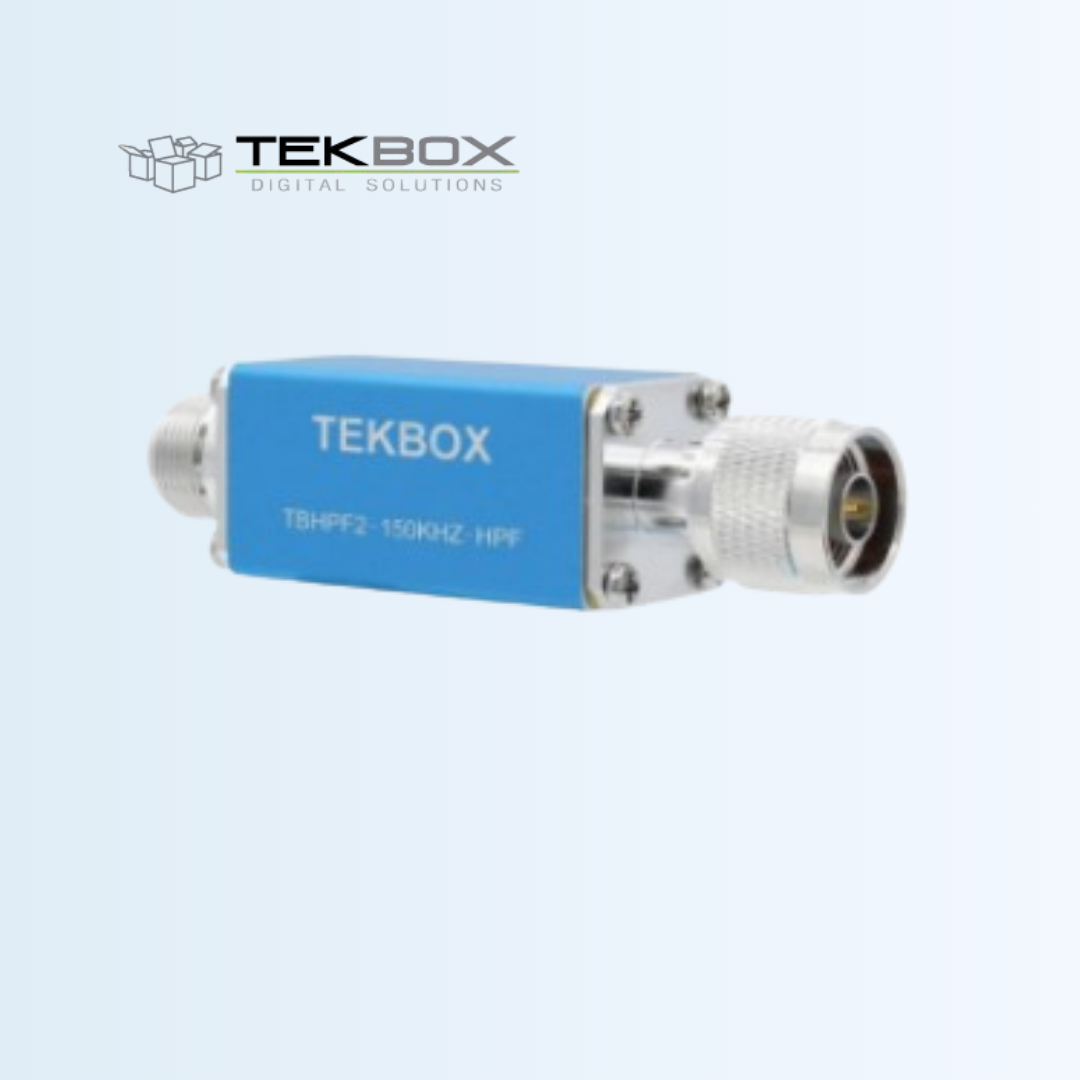

TBHPF2-150kHz
High Pass Filter
The TBHPF2-150kHz High-Pass Filter is a precision RF filter designed to pass frequencies above 150 kHz while attenuating lower-frequency components. Engineered for RF and EMC environments, it helps eliminate unwanted low-frequency noise and interference, improving the clarity and integrity of signals measured with spectrum analyzers, receivers, or other RF instruments. Its rugged construction makes it suitable for both laboratory and field use.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| 3dB bandwidth | 135 kHz – 1 GHz |
| S11, 150 kHz – 110 MHz | < -17 dB |
| Topology | 5 th order Chebyshev |
| Filter capacitor voltage rating | 250V |
| Filter inductor saturation current | 1.5 A |
| Maximum input power at frequencies 300 kHz – 1 GHz | 10W |
| Connectors | N-Male / N-Female |
| Dimensions | 26 x 26 x 97 mm |
| Weight | ca. 110g |
