- High-pass RF filter with cutoff frequency at 150 kHz.
- Effective suppression of low-frequency interference.
- Low insertion loss in the pass-band for minimal signal distortion.
- 50 Ω characteristic impedance for consistent performance.
- Sturdy and compact housing for reliable use.
- Suitable for use with spectrum analyzers and RF test equipment.
- Precision engineered for stable and repeatable performance.

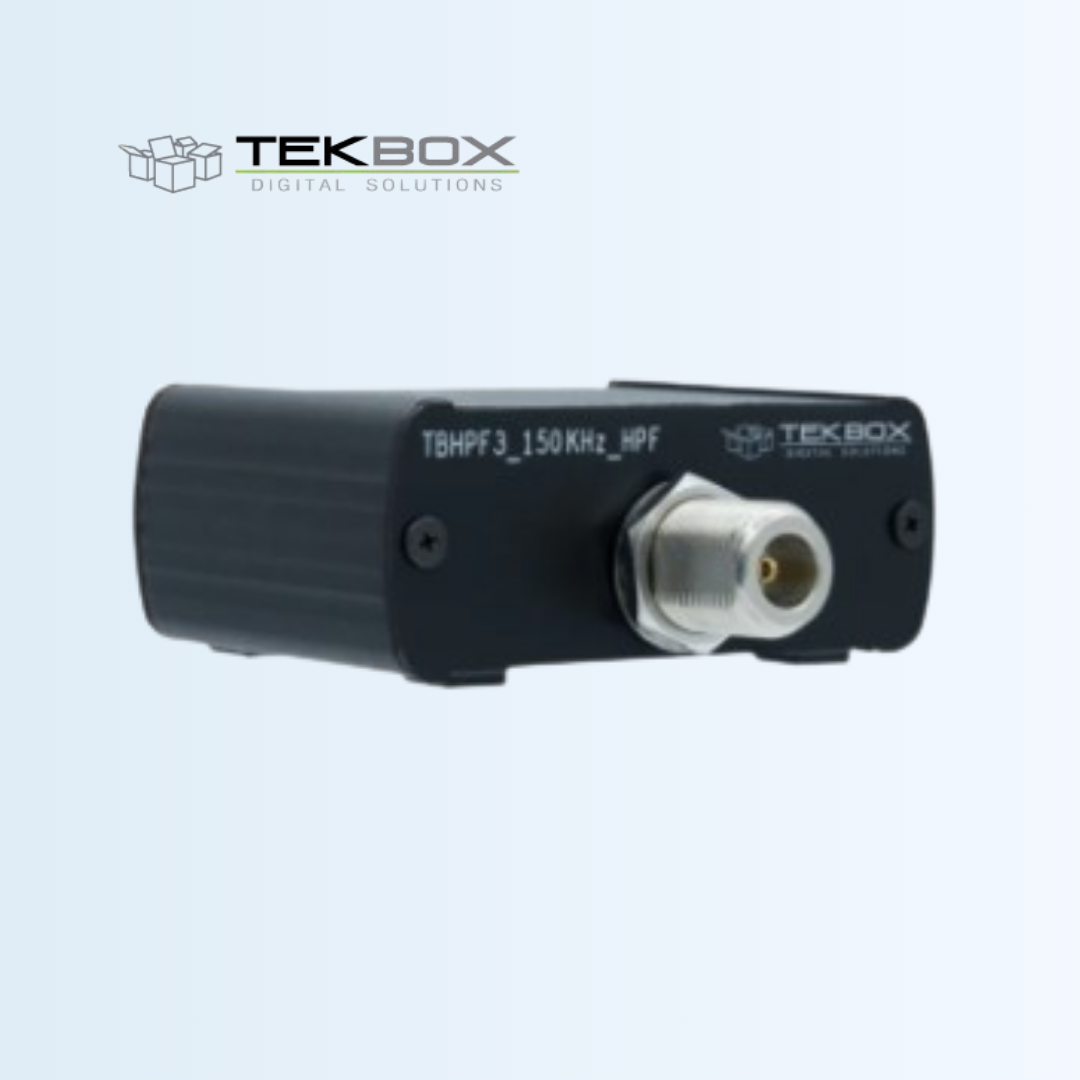

TBHPF3-150kHz
High Pass Filter
The TBHPF3-150kHz High-Pass Filter is a precision RF filter designed to pass signals above 150 kHz while significantly attenuating unwanted low-frequency content below this threshold. It is used in RF and EMC test setups to improve the quality of measured signals by reducing noise and interference at low frequencies. Its robust design ensures reliable performance in both laboratory and field environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| 3dB bandwidth | 135 kHz – 100 MHz |
| S11, 150 kHz – 110 MHz | < -17 dB |
| Topology | 5 th order Chebyshev |
| Filter capacitor voltage rating | 250V |
| Filter inductor saturation current | 5.6 A |
| Maximum input power at frequencies 300 kHz – 100 MHz | 10W |
| Connectors | N-Male / N-Female |
| Dimensions | 26 x 26 x 97 mm |
| Weight | ca. 110g |
