- High-pass RF filter with a defined cutoff frequency of 150 kHz.
- Effectively suppresses low-frequency noise and interference.
- Compact and durable housing for reliable use in test environments.
- Low insertion loss in the pass-band for minimal signal impact.
- Maintains 50 Ω impedance for consistent RF performance.
- Ideal for EMC, RF test benches, and measurement systems.
- Stable, repeatable performance with precision design.

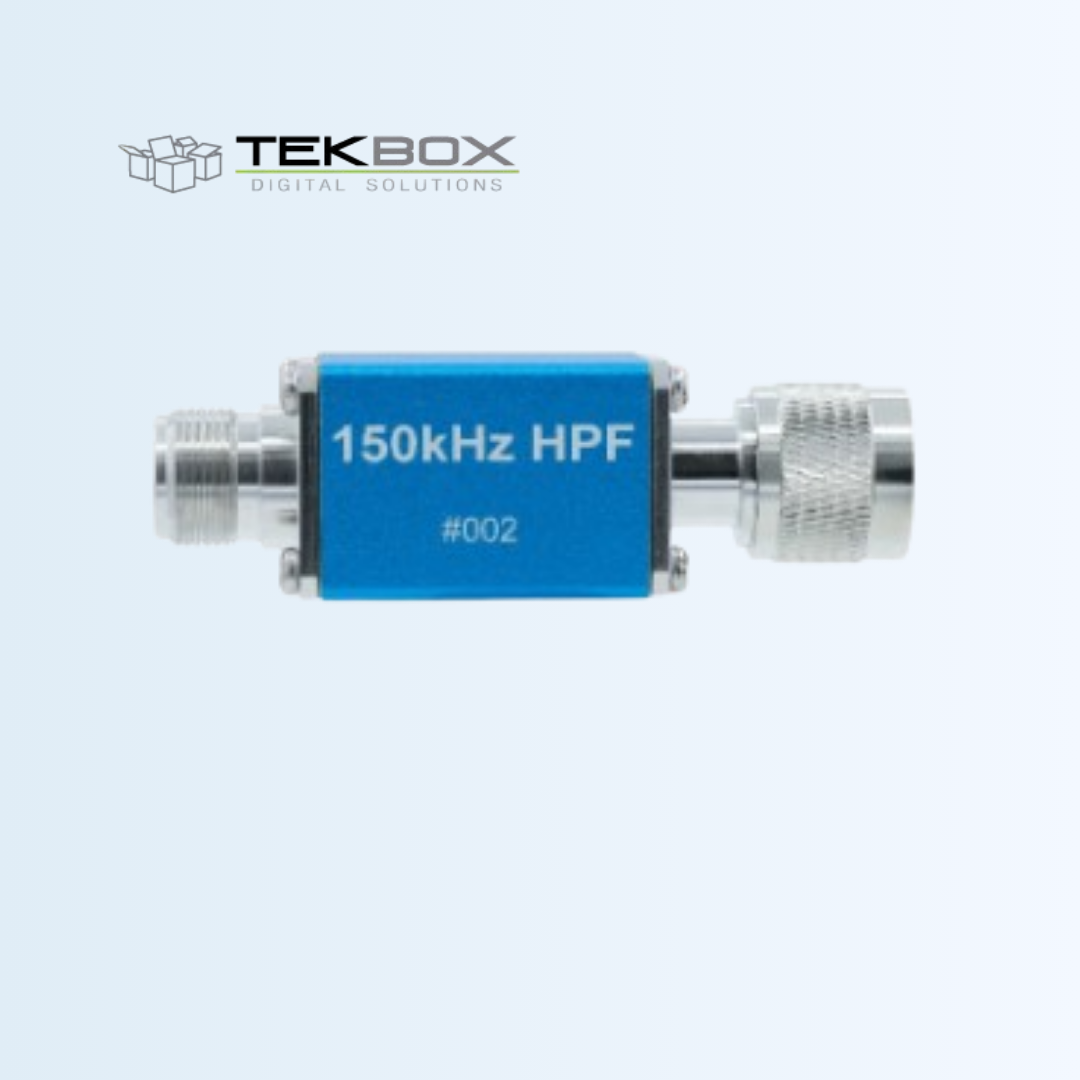

TBHPF1-150kHz-B
High-Pass Filter
The TBHPF1-150kHz-B High-Pass Filter is a precision RF filter engineered to allow frequencies above 150 kHz to pass while attenuating signals below this threshold. It is ideal for reducing low-frequency interference and improving signal quality in EMC and RF measurement systems. The filter’s compact and rugged design makes it suitable for laboratory test benches, field measurements, and integration with spectrum analyzers or other RF instruments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| 3dB bandwidth | 110 kHz – 3 GHz |
| S11, 150 kHz – 110 MHz | < -18 dB |
| Topology | 5 th order Chebyshev |
| Filter capacitor voltage rating | 100V |
| Filter inductor saturation current | 0.75 A |
| Maximum input power at frequencies 300 kHz – 1 GHz | 10W |
| Connectors | N-Male / N-Female |
| Dimensions | 26 x 26 x 82 mm |
| Weight | ca. 100g |
