- Complete set of fixed N-type attenuators covering a wide attenuation range.
- Frequency range extended up to 6 GHz for high-frequency applications.
- Rated for 2 W power handling.
- Low VSWR across the operating frequency for minimal signal reflection.
- N-male to N-female connectors for easy system integration.
- Stable and repeatable attenuation performance.
- Ideal for RF testing, EMC pre-compliance, and lab applications.

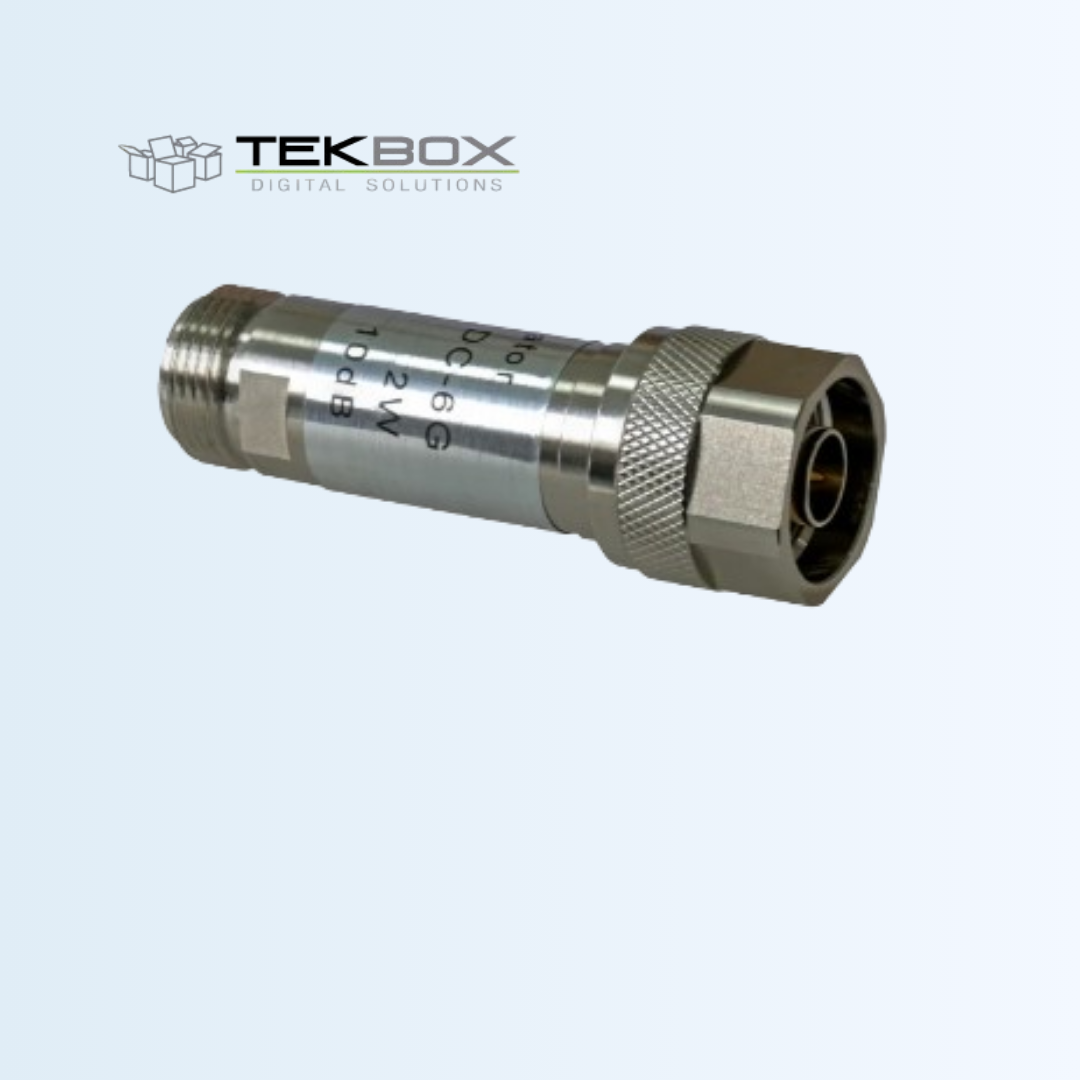

TBAS4
2W N Attenuator Set
The TBAS4 6 GHz 2 W N-Attenuator Set is a complete set of fixed-value RF attenuators designed for high-frequency RF and EMC test applications. With a frequency coverage up to 6 GHz and power handling up to 2 W, this attenuator set provides precise attenuation steps with low VSWR, making it ideal for signal conditioning, test bench calibration, and protection of sensitive RF equipment.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | DC – 6GHz |
| VSWR; 3, 6, 10, 20 dB | < 1.2 |
| Tolerance; 3, 6, 10, 20 dB | <+/- 0.3 dB |
| Power rating | 2W @ -55 to 40°C; up to 70°C with 50% power de-rating |
| Connectors | N-male / N-female; bidirectional |
| Dimensions | 150mm x 95mm x 45mm |
| Weight | 490g |
