TBAS3

10W N Attenuator Set

The TBAS3 10W N-Attenuator Set is a curated collection of fixed-value RF attenuators designed for RF bench testing, calibration, and signal conditioning. With power handling up to 10 watts, this set allows controlled attenuation across a wide frequency range and helps protect sensitive test equipment, support EMC/RF measurements, and provide consistent signal levels in test setups.

Datasheet

Features

Key capabilities and advantages

▼

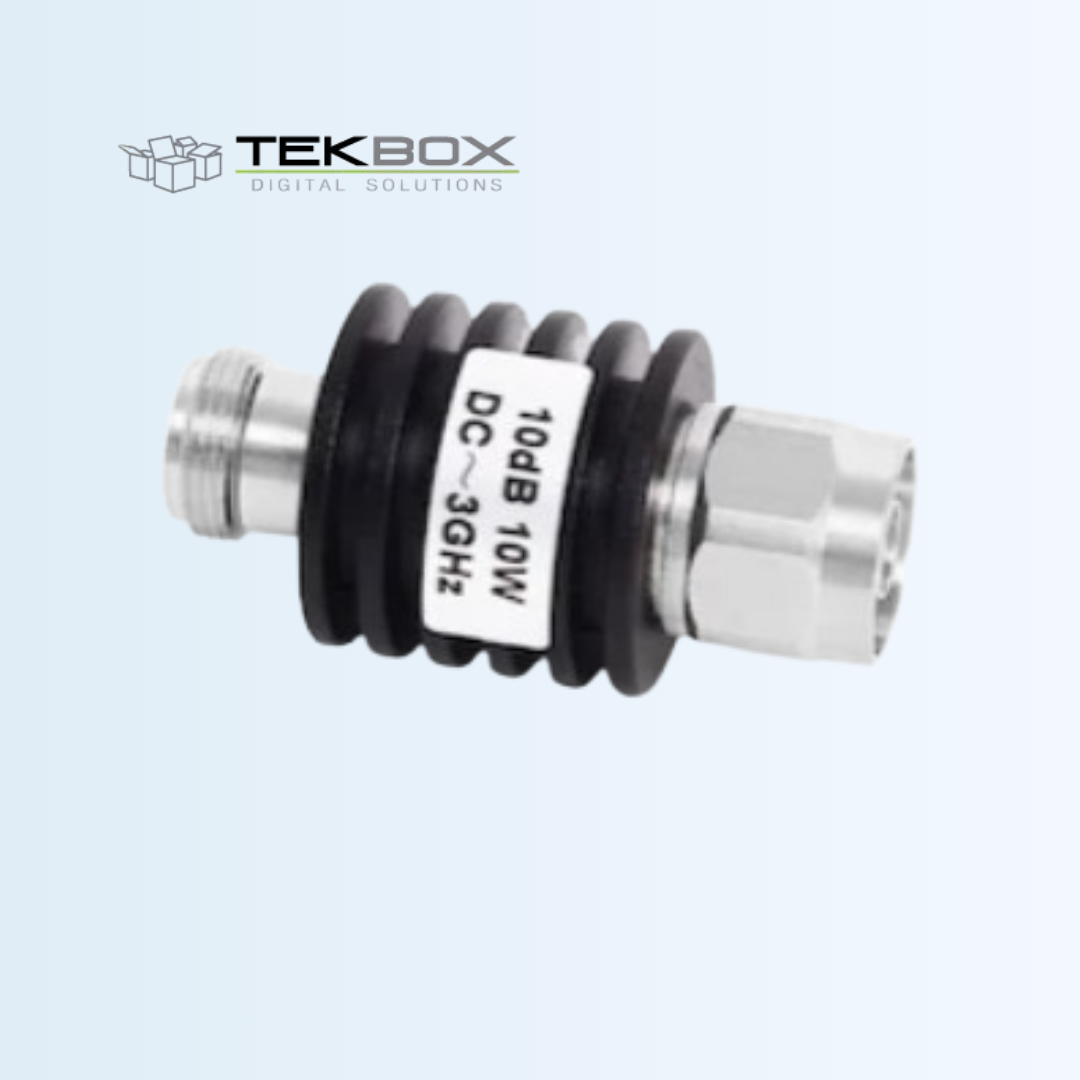

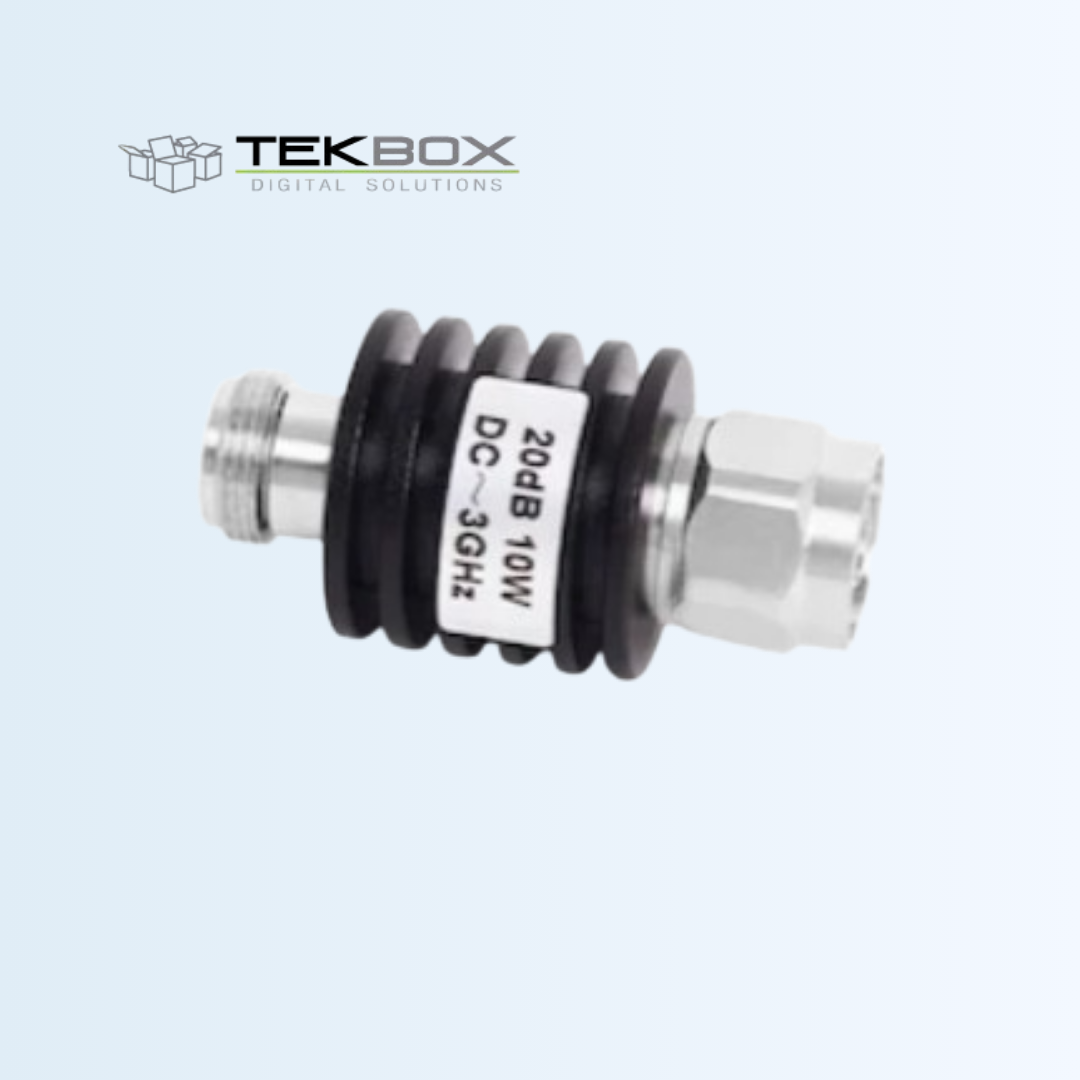

Set of fixed RF attenuators with defined attenuation values.
10 W power rating for each attenuator in the set.
Wide frequency range from DC to 3 GHz
Low VSWR for minimal signal reflection.
N-male to N-female connectors for easy integration.
Stable and repeatable attenuation performance.
Ideal for RF test benches, EMC measurements, and lab setups.

Specification

Technical specifications and parameters

▼

Tolerance	3, 6, 10 dB, +/- 0.5 dB, 20 dB, +/- 0.8 dB
Frequency range	DC-3GHz, VSWR < 1.3
Power rating	10W @ -55 to 40°C; up to 70°C with 50% power de-rating
Connectors	N-male / N-female; bidirectional
Dimensions	150mm x 95mm x 45mm
Weight	505g
