TBAS2

SMA Attenuator

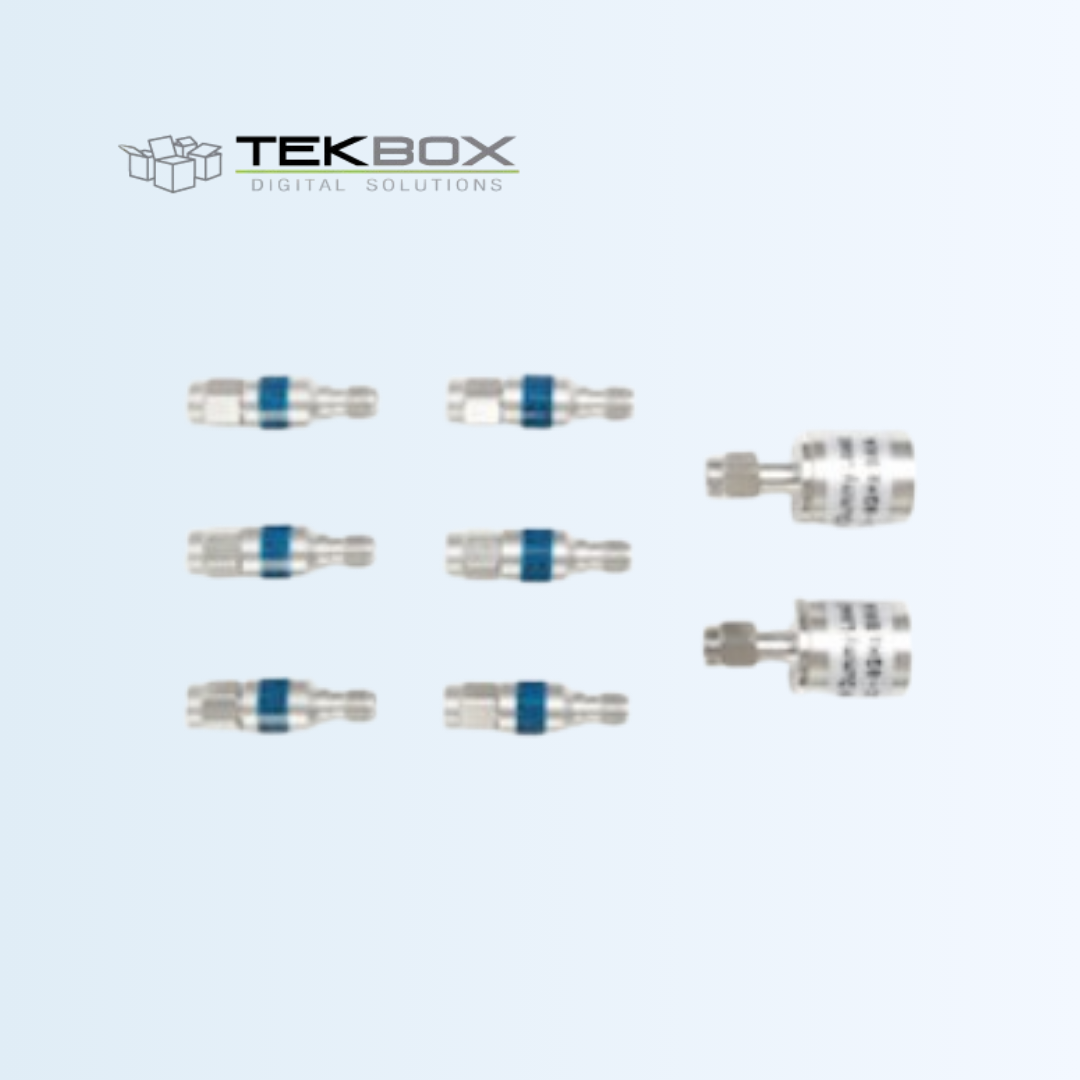

The TBAS2 SMA Attenuator/Termination Set is a complete RF accessory kit that includes a series of SMA fixed-value attenuators along with precision 50 Ω terminators. Designed for RF test benches, calibration, and signal conditioning, this set helps control signal levels, protect sensitive instruments, and support EMC/RF measurement setups.

Datasheet

Features

Key capabilities and advantages

▼

Set of fixed SMA attenuators covering a range of attenuation values.
Includes two 50 Ω SMA terminations for impedance matching.
Wide frequency coverage from DC up to 6 GHz.
Low VSWR for stable and reliable RF performance.
SMA male to SMA female connectors for easy integration.
Packaged in a compact and durable box for convenient storage and transport.
Ideal for RF testing, EMC measurements, signal conditioning, and lab use.

Specification

Technical specifications and parameters

▼

Attenuators	3, 6, 10, 15 dB, +/- 0.5 dB, 20, 30 dB, +/- 0.8 dB
Frequency Range	DC – 6GHz, VSWR <1.3
Power rating	1W @ -40 to 70°C; up to 70°C with 50% power de-rating
Connectors	SMA-male/SMA-female; bidirectional
Termination	50 Ohm
Frequency Range	DC – 6GHz, VSWR <1.2
Power rating	1W @ -40 to 70°C; up to 70°C with 50% power de-rating
Connectors	SMA-male
Dimensions	150mm x 95mm x 45mm
Weight	490g
