- High-pass RF filter with defined cutoff at 9 kHz.
- Effective suppression of low-frequency noise and interference.
- Compact and robust design for test bench or field applications.
- Suitable for use with spectrum .analyzers, receivers, and RF test equipment.
- Low insertion loss in pass-band for minimal signal distortion.
- Helps improve measurement quality in EMC and RF setups.
- Built with precision components for stable and repeatable performance.

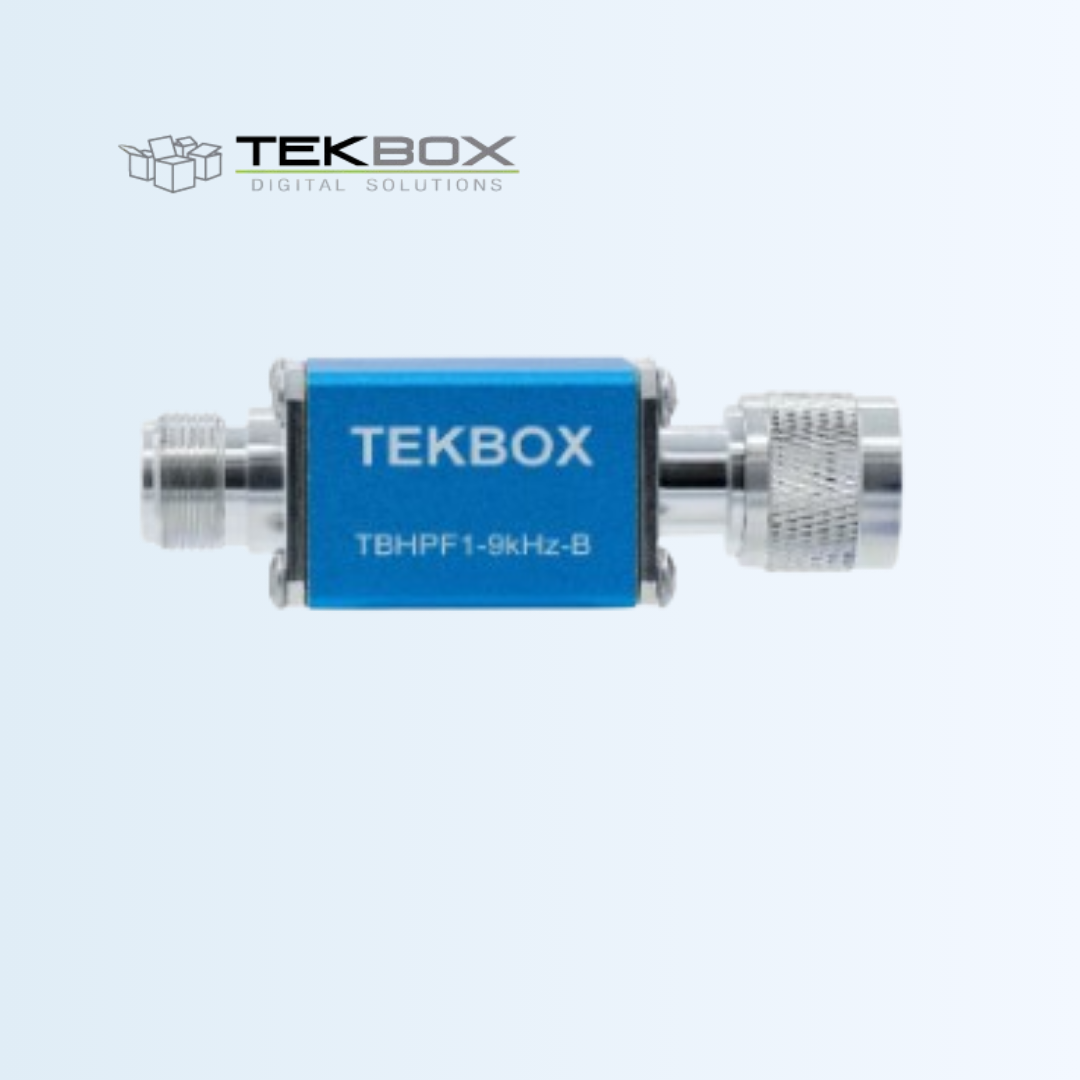

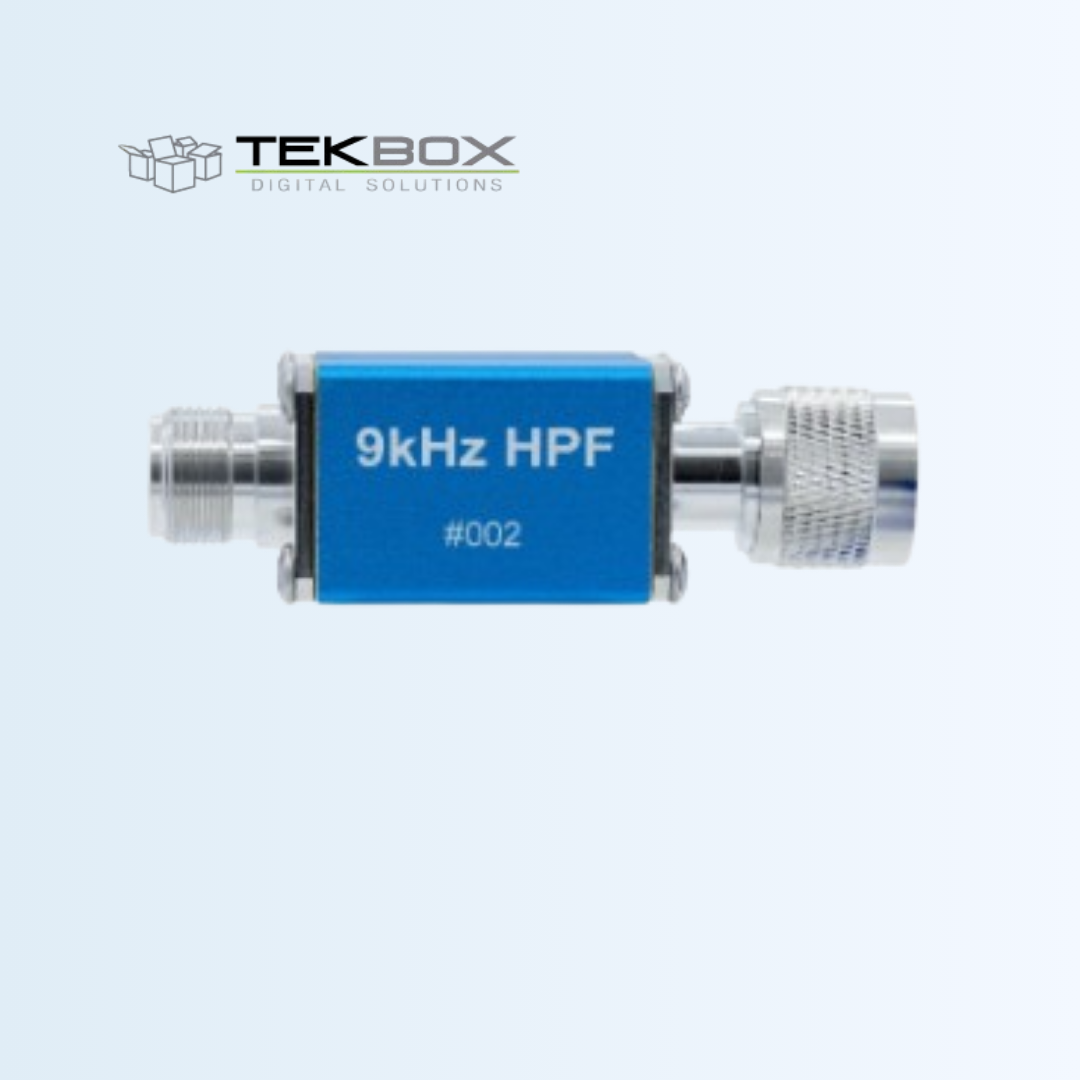

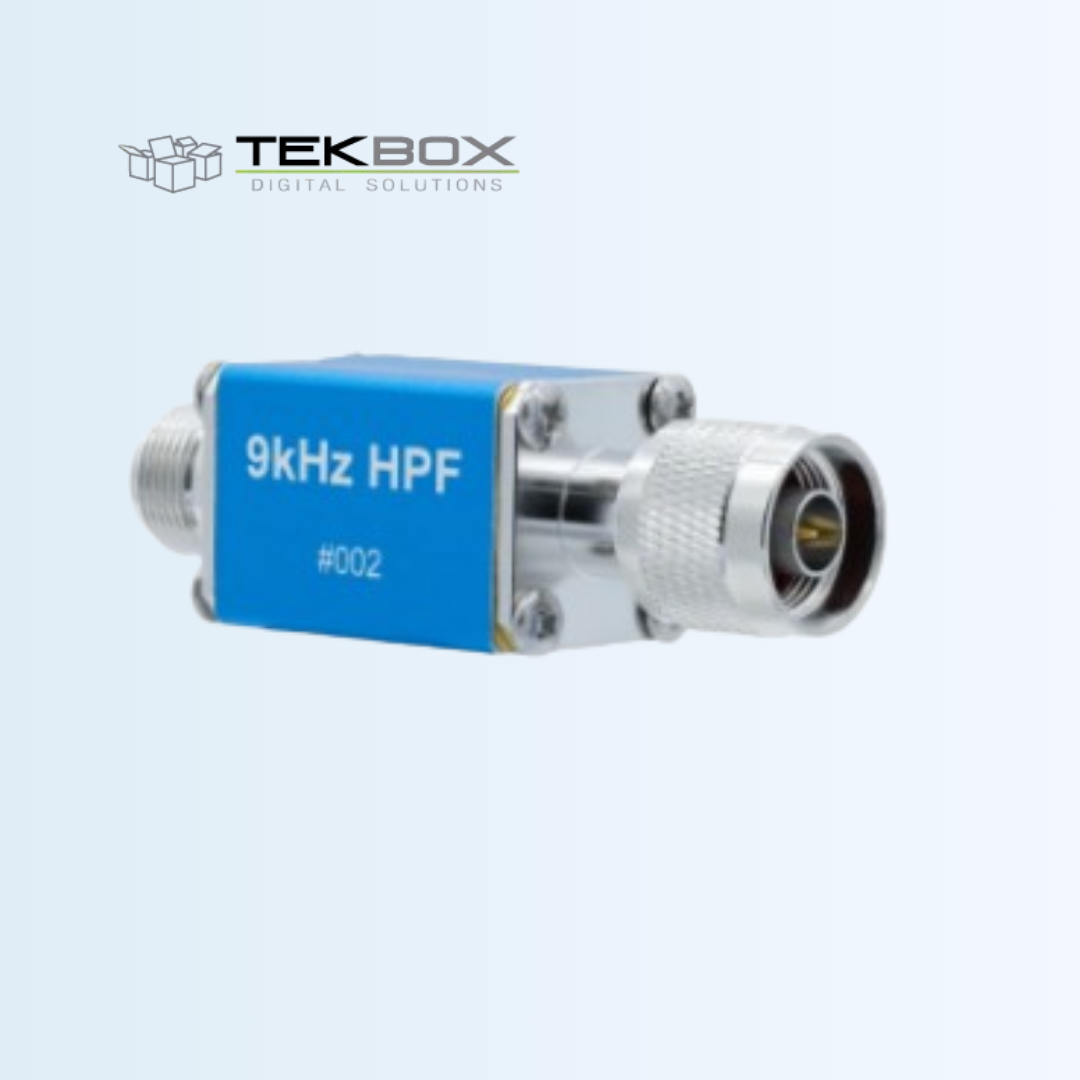

TBHPF1-9kHz-B
High Pass Filter
The TBHPF1-9kHz-B High-Pass Filter is a precision RF filter designed to allow frequencies above 9 kHz to pass while attenuating frequencies below this threshold. It is widely used in EMC and RF measurement systems to reduce low-frequency interference and noise, improving signal integrity for testing and analysis. Its compact design and reliable performance make it suitable for lab, bench, and field use.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| 3dB bandwidth | 9 kHz – 1 GHz |
| S11, 9 kHz – 110 MHz | < -12 dB |
| Topology | 5th order Chebyshev |
| Filter capacitor voltage rating | 100V |
| Filter inductor saturation current | 0.7 A |
| Maximum input power at frequencies 9 kHz – 1 GHz | 10W |
| Connectors | N-Male / N-Female |
| Dimensions | 26 x 26 x 82 mm |
| Weight | ca. 100g |
