- Protects RF test equipment from transient voltage and pulse spikes.
- Automatically limits harmful high-energy events while allowing normal signals.
- Low insertion loss for minimal impact on measurement accuracy.
- Designed to handle high-energy transients such as ESD and lightning pulses.
- Compact and rugged housing for lab and field applications.
- Easy integration into RF test setups with standard RF connectors.
- Suitable for protecting spectrum analyzers, receivers, and other sensitive RF instruments.
TBFL1
Transient Limiter

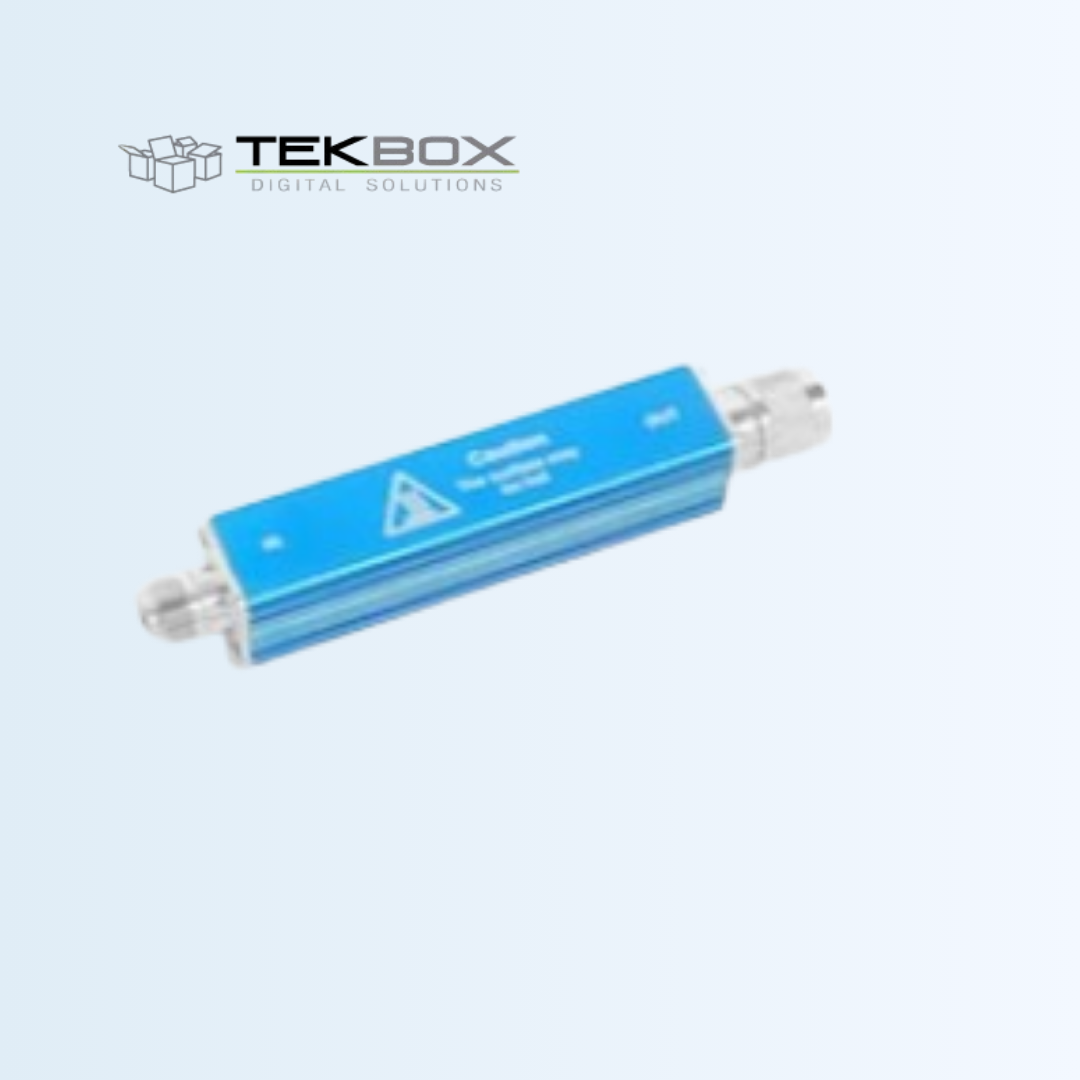

The TBFL1 Transient Limiter is a protection device designed to safeguard sensitive RF measurement equipment such as spectrum analyzers and receivers from high-energy transient pulses. It allows RF signals to pass normally under standard levels but automatically limits excessive transient energy, preventing potential damage from electrostatic discharge (ESD), lightning pulses, or other high-power RF events. The unit is compact and rugged, making it ideal for both laboratory and field use where transient protection is required.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | 9 kHz – 600 MHz |
| Attenuation | 10 dB – 0.8/+1.6 dB in-band (9 kHz to 600 MHz) |
| Attenuation HP-filter | > 40 dB @ 1kHz |
| Maximum continuous RF input power | 5W (+37 dBm) in-band |
| Maximum DC input voltage | ± 20V |
| Input matching, linear operating range | 9 kHz – 600 MHz < – 16 dB |
| Output matching, linear operating range | 9 kHz – 600 MHz < – 23 dB |
| Linear operating range | up to 0 dBm input level, in-band |
| Limiting threshold | +11 dBm (@ 37dBm input level) |
| Input connector | N-female |
| Output connector | N-male |
| Dimensions | 156 mm x 26 mm x 26mm |
| Weight | 170 g |
