- Compact EMC shielding solution.
- Dual-layer conductive fabric.
- Reduced filter panel for basic setups.
- Portable and quick to assemble.
- Suitable for small DUT testing.
TBST-86/49/45/1-B
Shielded Tents

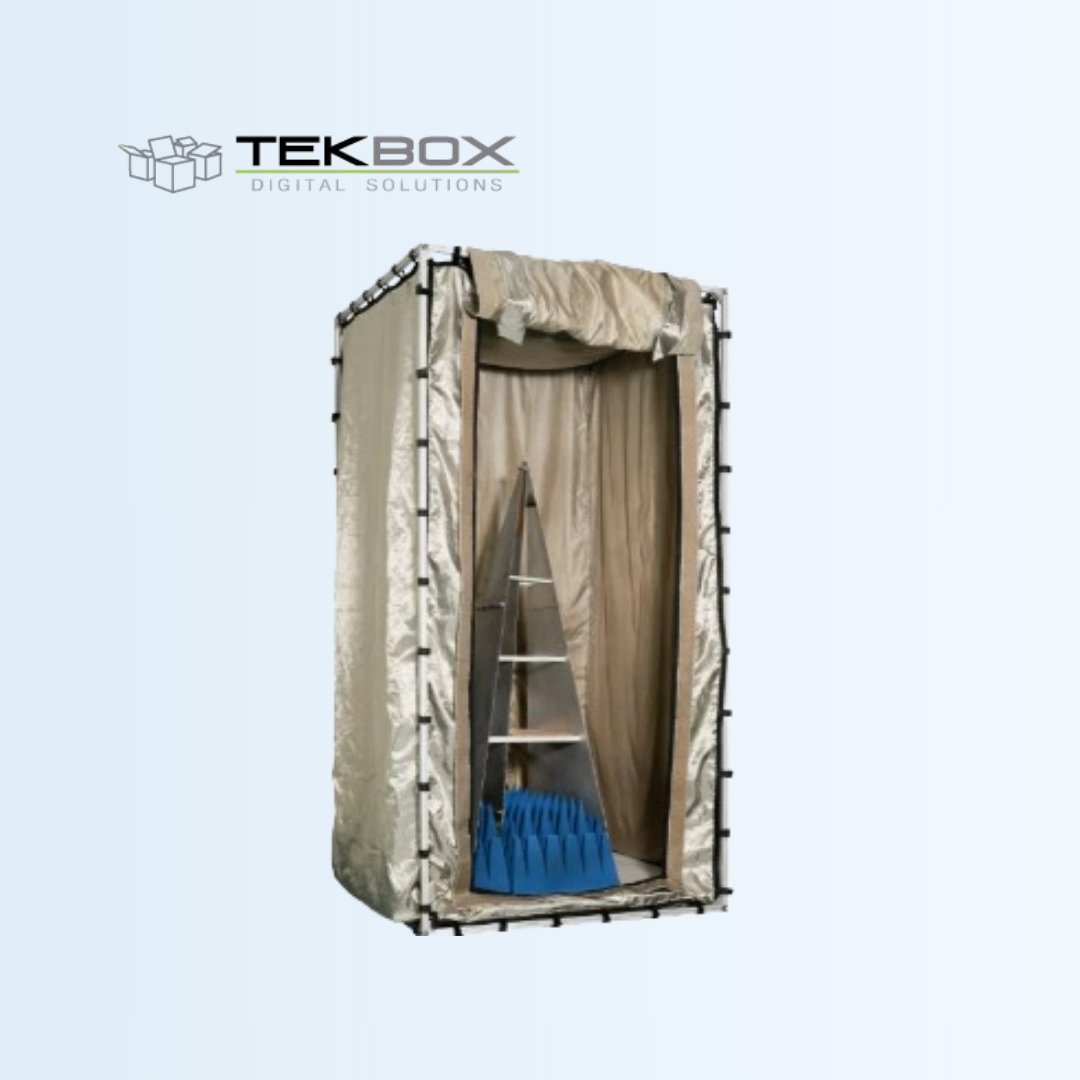

Compact EMC shielded tent optimized for simpler test setups, offering effective noise suppression with a reduced filter configuration.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer dimensions | 86 × 48 × 48 cm |
| Opening dimensions | 40 × 22 cm |
| Frame | 2020 extruded aluminium profiles |

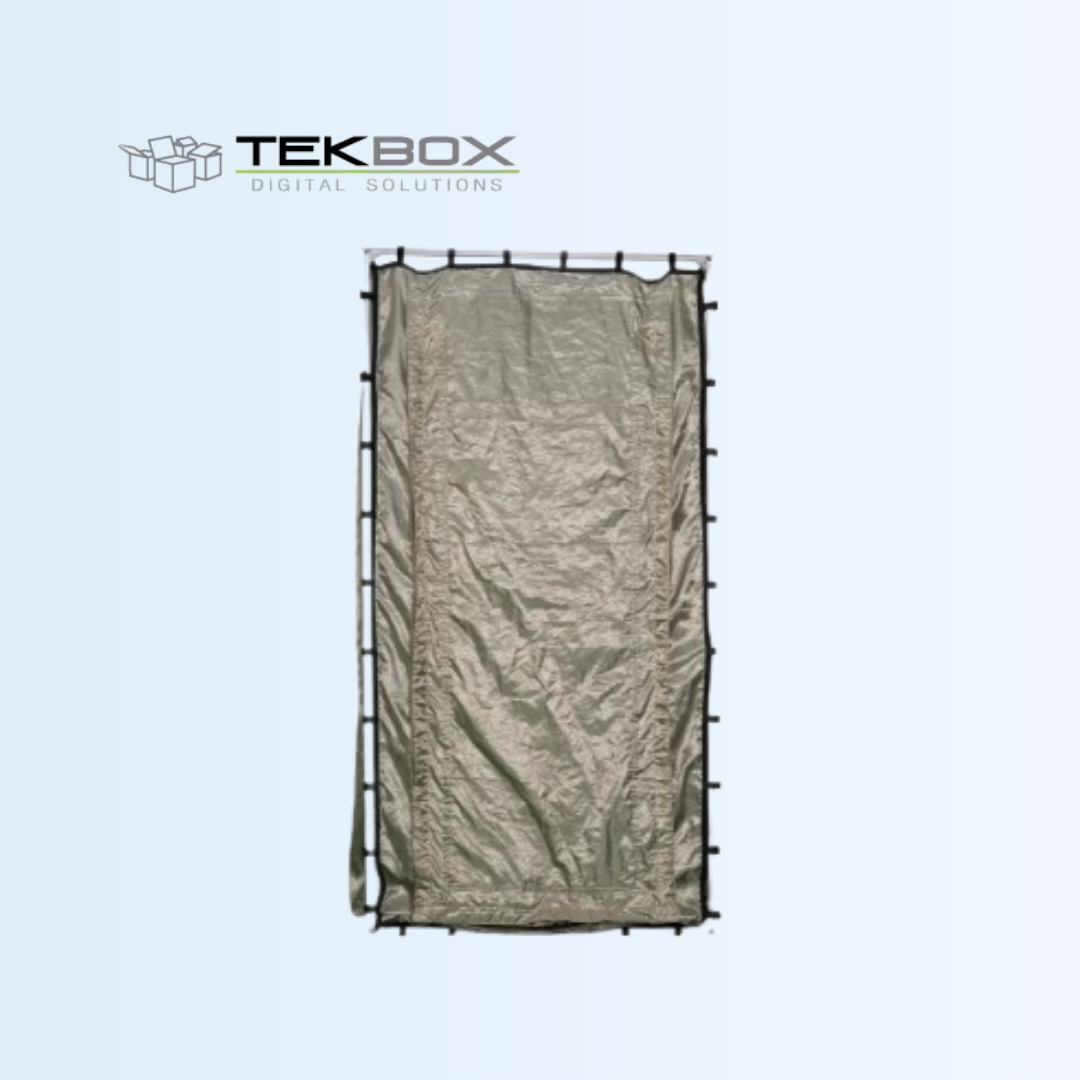

| Shielding | 2 layers of conductive fabrics |
| Seal | conductive Velcro tape |
| Suspension | Velcro straps |

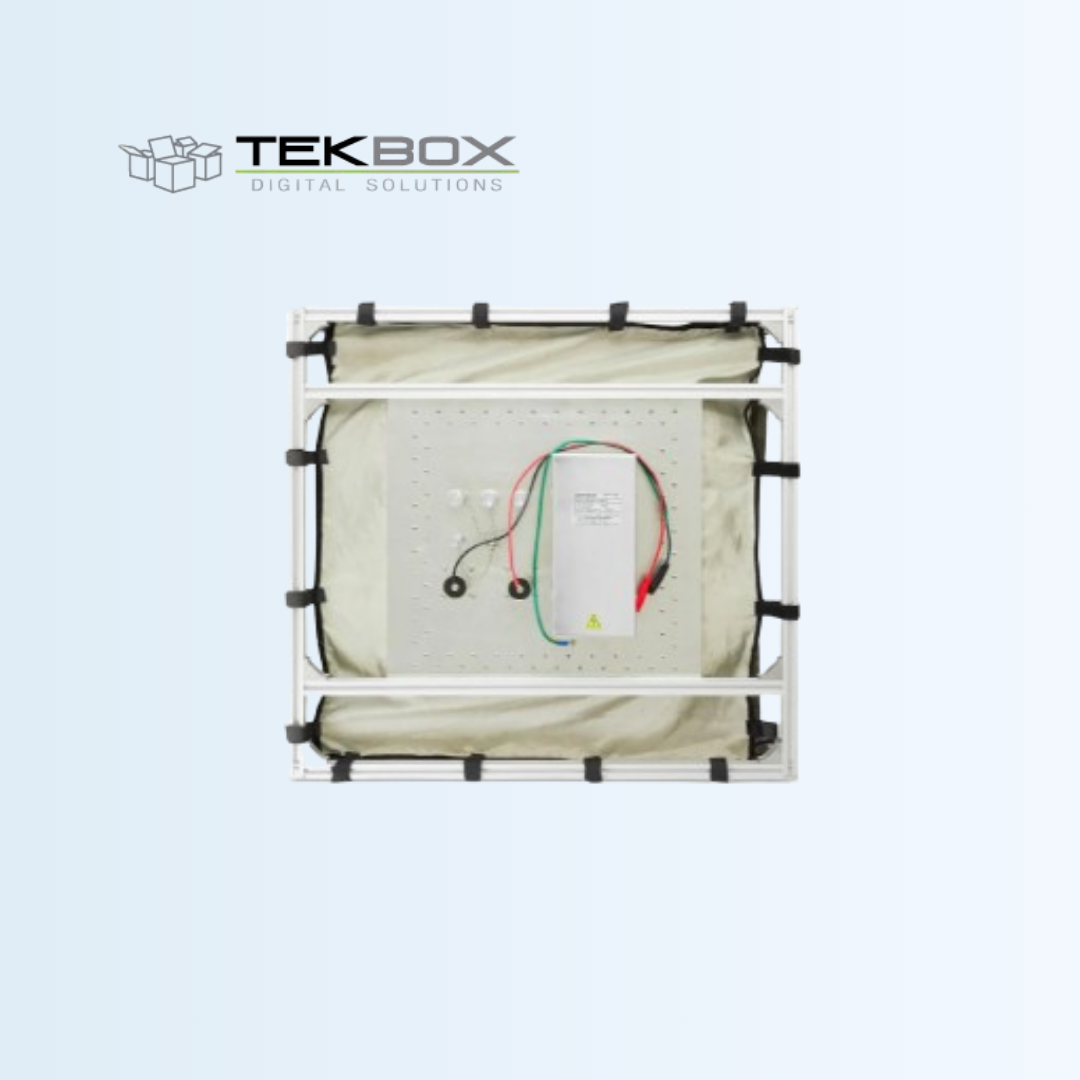

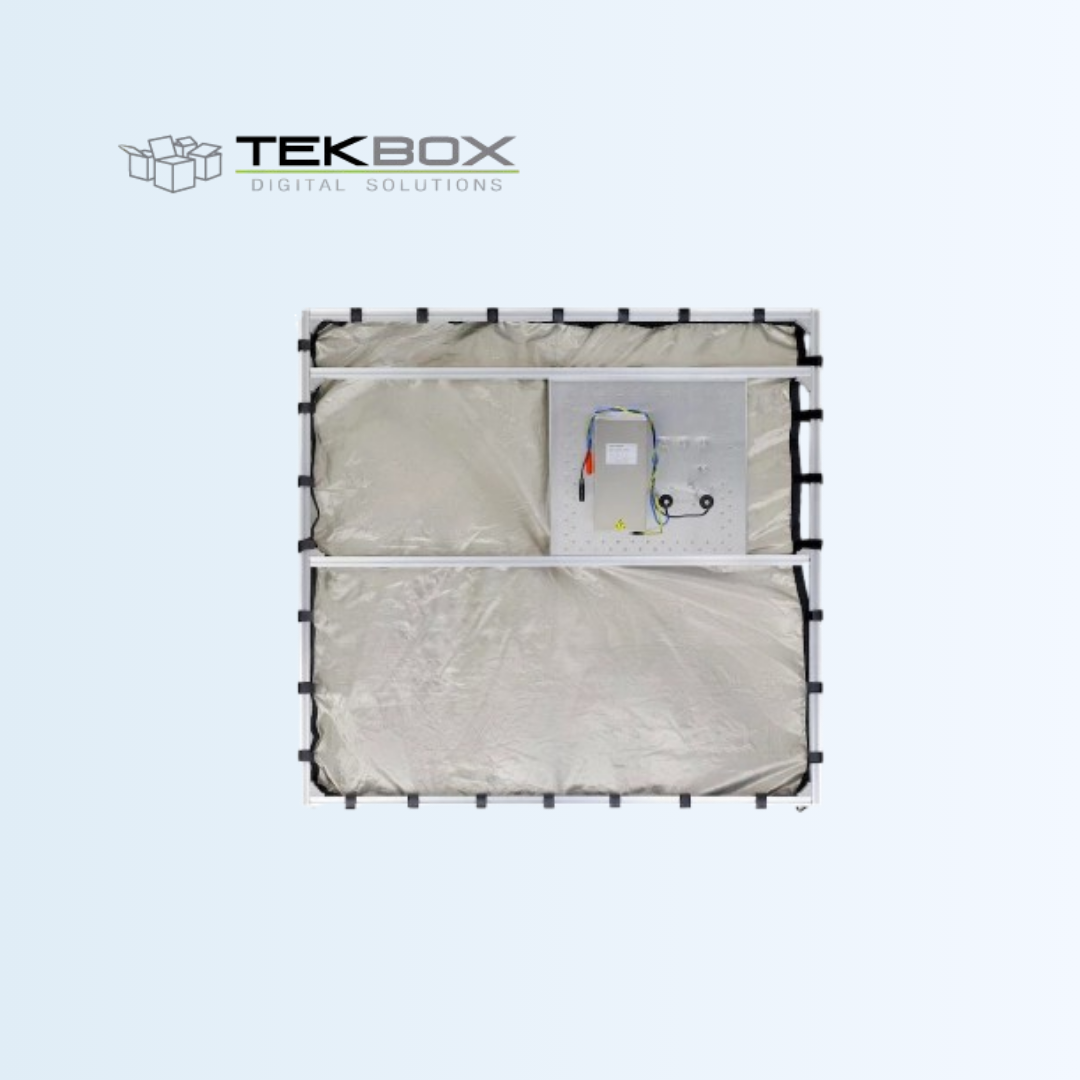

| AC mains filter | 1 × 240 V / 10 A, IEC socket |
| DC filters | not included |
| RF feedthroughs | 3 × N-female + 1 × BNC-female |
| Internal AC socket | pigtail with detachable mains socket (Type F, Schuko) |
| Attenuation | up to 50 dB (10 MHz – 6 GHz) |
| Suitable TEM cells | TBTCO, TBTC1, TBTC2 |
