- Compact shielded enclosure for EMC pre-compliance testing.
- Dual-layer conductive fabric for effective shielding.
- Integrated AC/DC filtering and RF feedthroughs.
- Lightweight aluminium frame for easy assembly.
- Compatible with Tekbox TEM cells.

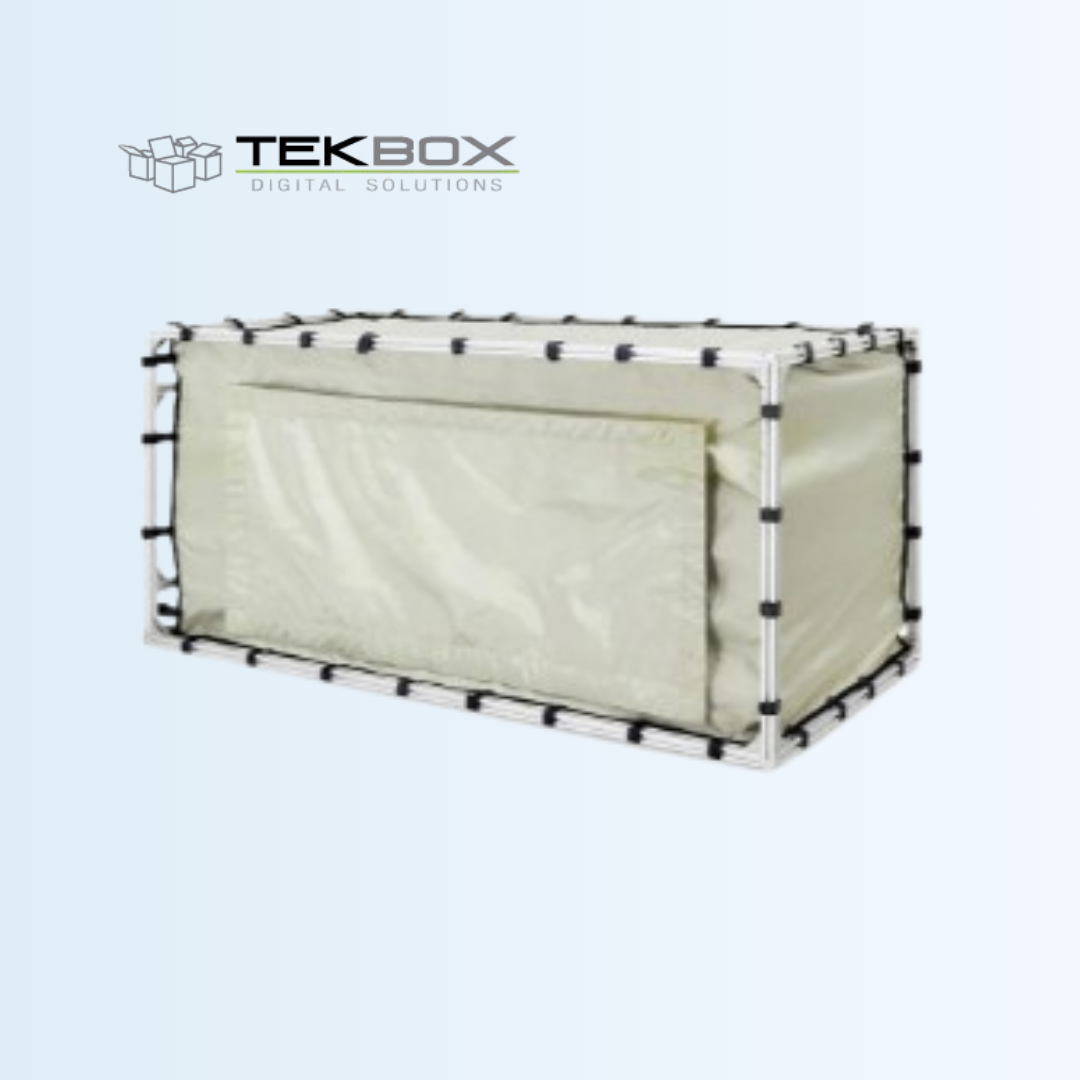

TBST-86/49/45/2-B
Shielded Tents
Compact EMC shielded tent designed for pre-compliance measurements and suppression of ambient electromagnetic interference. Suitable for small DUTs and portable EMC setups.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer dimensions | 86 × 48 × 48 cm |
| Opening dimensions | 40 × 22 cm |
| Frame | 2020 extruded aluminium profiles |
| Shielding | 2 layers of conductive fabrics |
| Seal | conductive Velcro tape |
| Suspension | Velcro straps |
| AC mains filter | 1 × 240 V / 10 A, IEC socket |
| DC filters | 2 × 240 V / 10 A with banana couplers |
| RF feedthroughs | 3 × N-female + 1 × BNC-female |
| Internal AC socket | pigtail with detachable mains socket (Type F, Schuko) |
| Attenuation | up to 50 dB (10 MHz – 6 GHz) |
| Suitable TEM cells | TBTCO, TBTC1, TBTC2 |
