- Dual-layer conductive fabric construction for effective EMI shielding.
- Conductive Velcro tape seal for reliable electrical continuity.
- Lightweight and portable design.
- Attenuation performance up to 50 dB.
- Compatible with Tekbox TEM cells.
- Cost-effective solution for EMC testing applications.
TBGP-250/140
Ground Plane

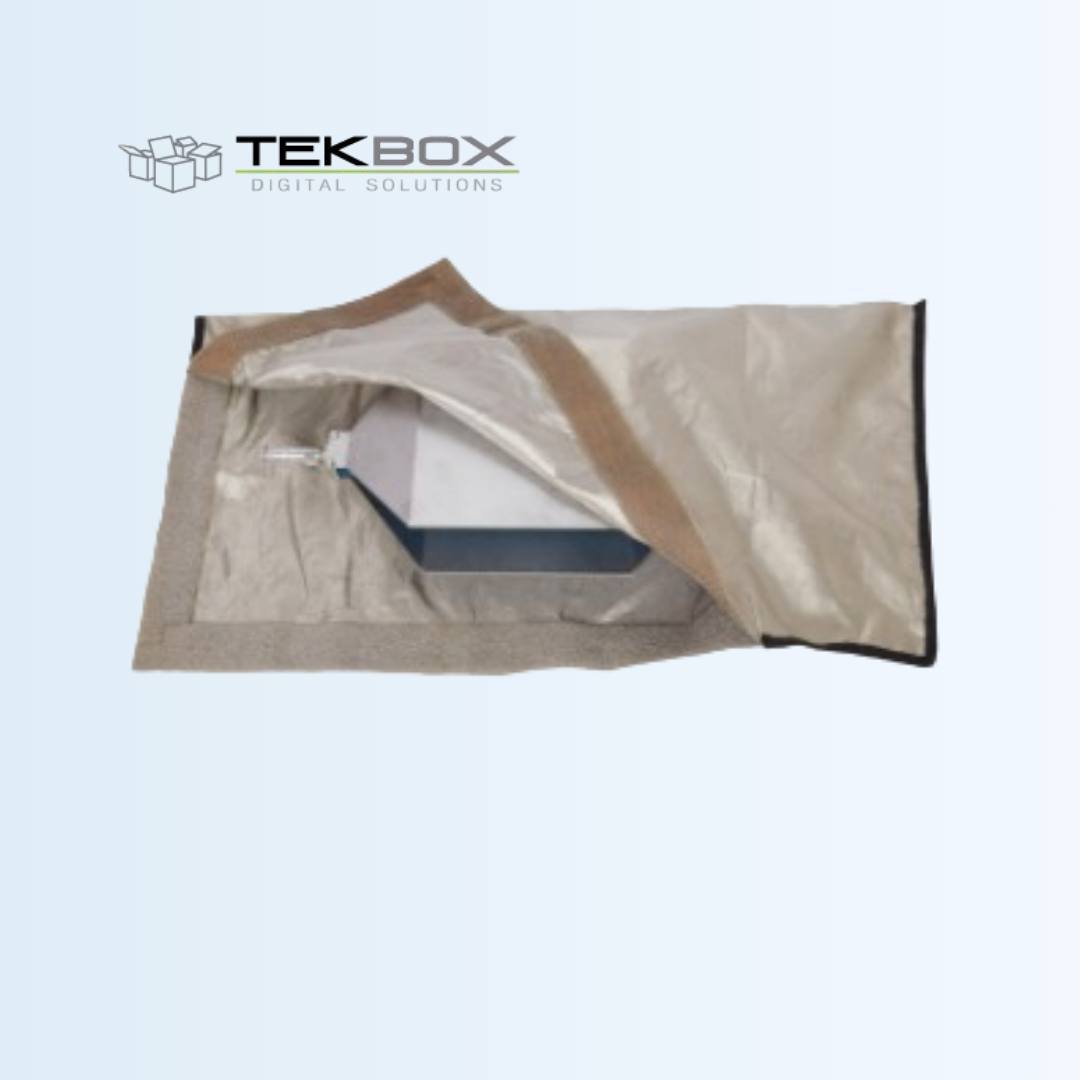

Tekbox Shielded Bags provide a simple and effective portable shielding solution for EMC testing applications. Constructed with two layers of conductive fabrics and sealed using conductive Velcro tape, these shielded bags significantly reduce electromagnetic interference. They are ideal for pre-compliance testing, troubleshooting, and isolation of electronic devices in laboratory or field environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer dimensions | TBSB-105/60: 105 cm x 60 cm TBSB-70/40: 70 cm x 40 cm |
| Opening dimensions | TBSB-105/60: diagonal 80 cm TBSB-70/40: diagonal 60 cm |
| Frame | none |
| Shielding | 2 layers of conductive fabrics |
| Seal | conductive Velcro tape |
| Filter panel | none |
| Attenuation | ~ 50 dB in the range 10 MHz to 6 GHz |
| Weight | TBSB-105/60: 250 g TBSB-70/40: 140 g |
