- Larger working volume for EMC testing.
- Dual-layer conductive shielding.
- Integrated AC/DC filtering and RF feedthroughs.
- Robust aluminium frame.
- Suitable for multiple Tekbox TEM cells.
TBST-120/60/60/2-B

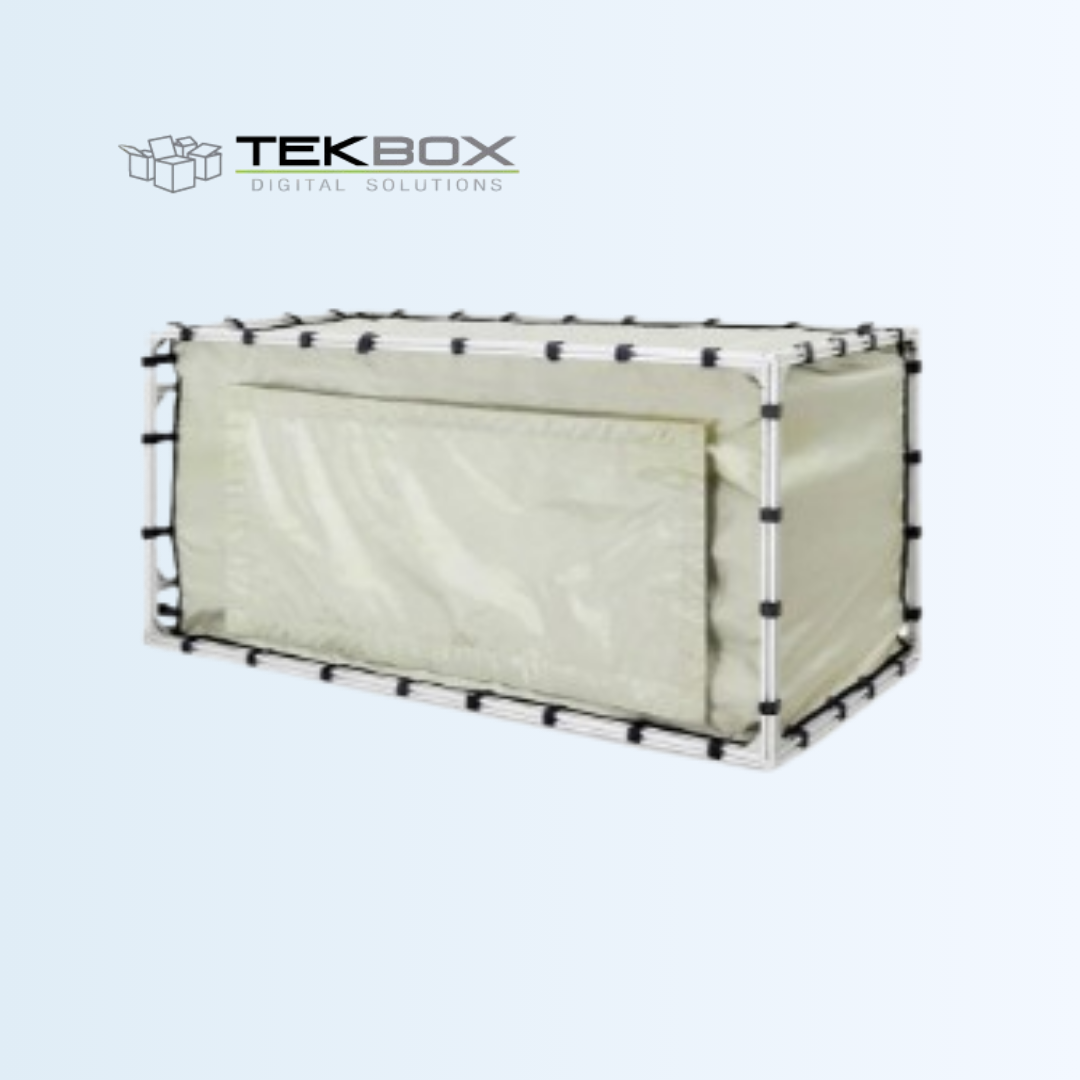

Medium-size EMC shielded tent providing additional internal space for larger DUTs and more complex pre-compliance setups.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer dimensions | 124 × 64 × 60 cm |
| Opening dimensions | 85 × 35 cm |
| Frame | 2020 extruded aluminium profiles |
| Shielding | 2 layers of conductive fabrics |
| Seal | conductive Velcro tape |
| Suspension | Velcro straps |

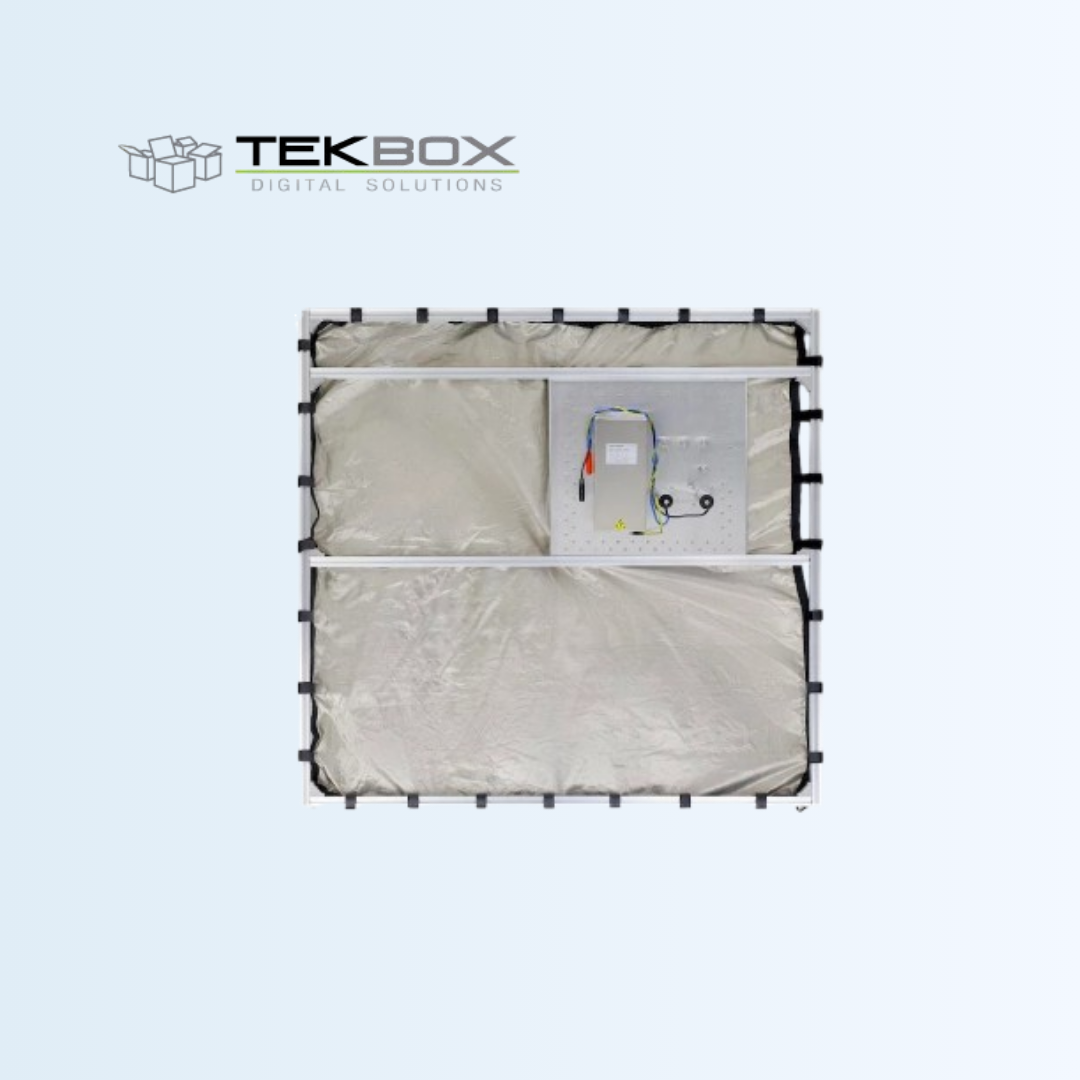

| AC mains filter | 1 × 240 V / 10 A, IEC socket |
| DC filters | 2 × 240 V / 10 A with banana couplers |
| RF feedthroughs | 3 × N-female + 1 × BNC-female |
| Internal AC socket | pigtail with detachable mains socket (Type F, Schuko) |
| Attenuation | up to 50 dB (10 MHz – 6 GHz) |
| Suitable TEM cells | TBTC0, TBTC1, TBTC2, TBTC3 |
