- Large internal volume for system-level EMC testing.
- High shielding effectiveness.
- Full filter panel with AC/DC power and RF feedthroughs.
- Stable aluminium frame for heavy equipment.
- Suitable for advanced pre-compliance setups.

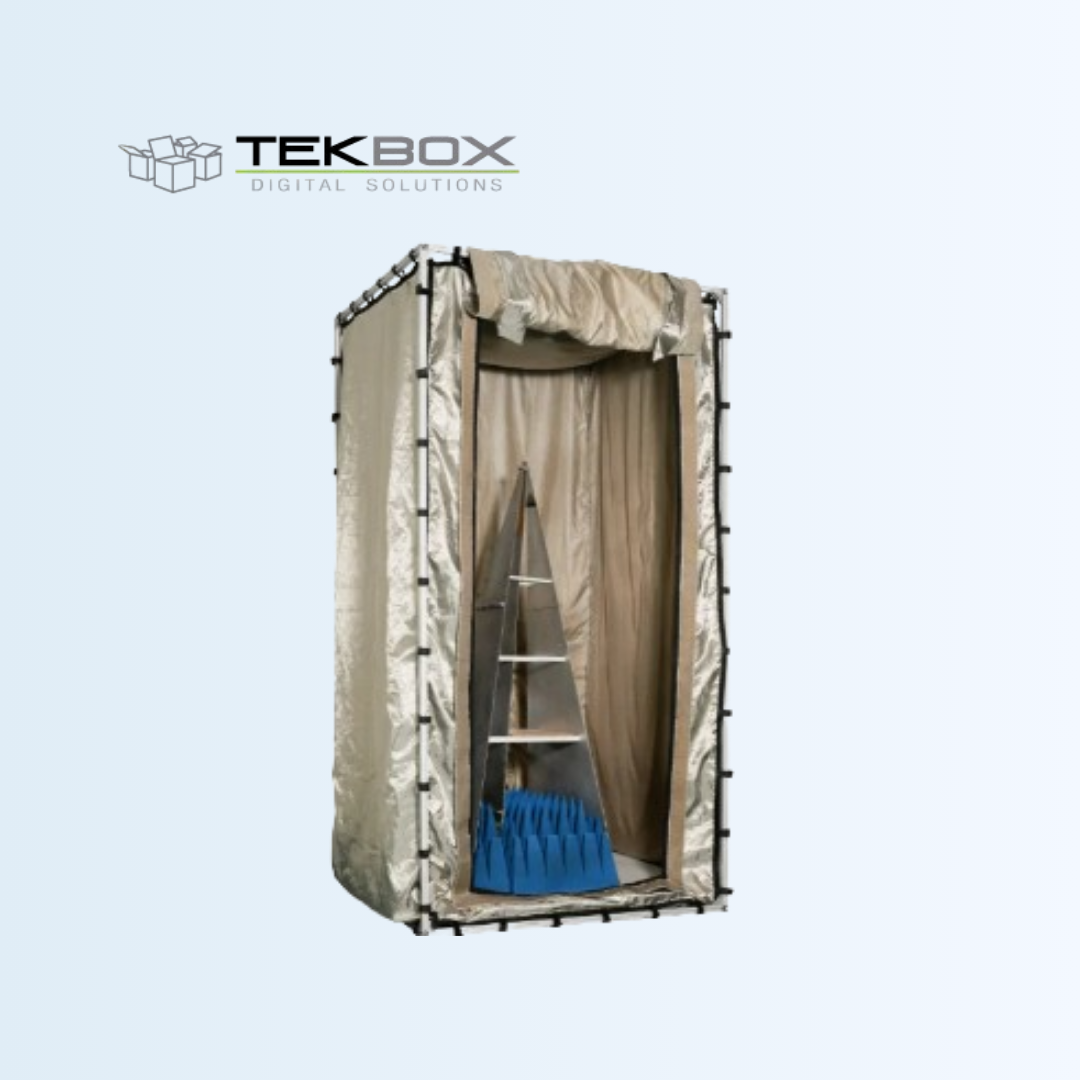

TBST-200/100/100
Shielded Tents
Large EMC shielded tent intended for bulky devices, system-level testing, and complex EMC pre-compliance environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer dimensions | 204 × 104 × 100 cm |
| Opening dimensions | 130 × 46 cm |
| Frame | 2020 extruded aluminium profiles |
| Shielding | 2 layers of conductive fabrics |
| Seal | conductive Velcro tape |
| Suspension | Velcro straps |
| AC mains filter | 1 × 240 V / 10 A, IEC socket |
| DC filters | 2 × 240 V / 10 A with banana couplers |
| RF feedthroughs | 3 × N-female + 1 × BNC-female |
| Internal AC socket | pigtail with detachable mains socket (Type F, Schuko) |
| Attenuation | up to 50 dB (10 MHz – 6 GHz) |
| Suitable TEM cells | TBTC0, TBTC1, TBTC2, TBTC3 |
