- Precision milled aluminium construction for strength and shielding.
- SMA-female connectors on both ends for easy RF integration.
- Built-in feed-through capacitor (10 nF / 50 V) to accommodate power or bias connections.
- Ideal for housing RF modules such as amplifiers or similar building blocks.
- Compact and lightweight for bench test setups and prototype enclosures.

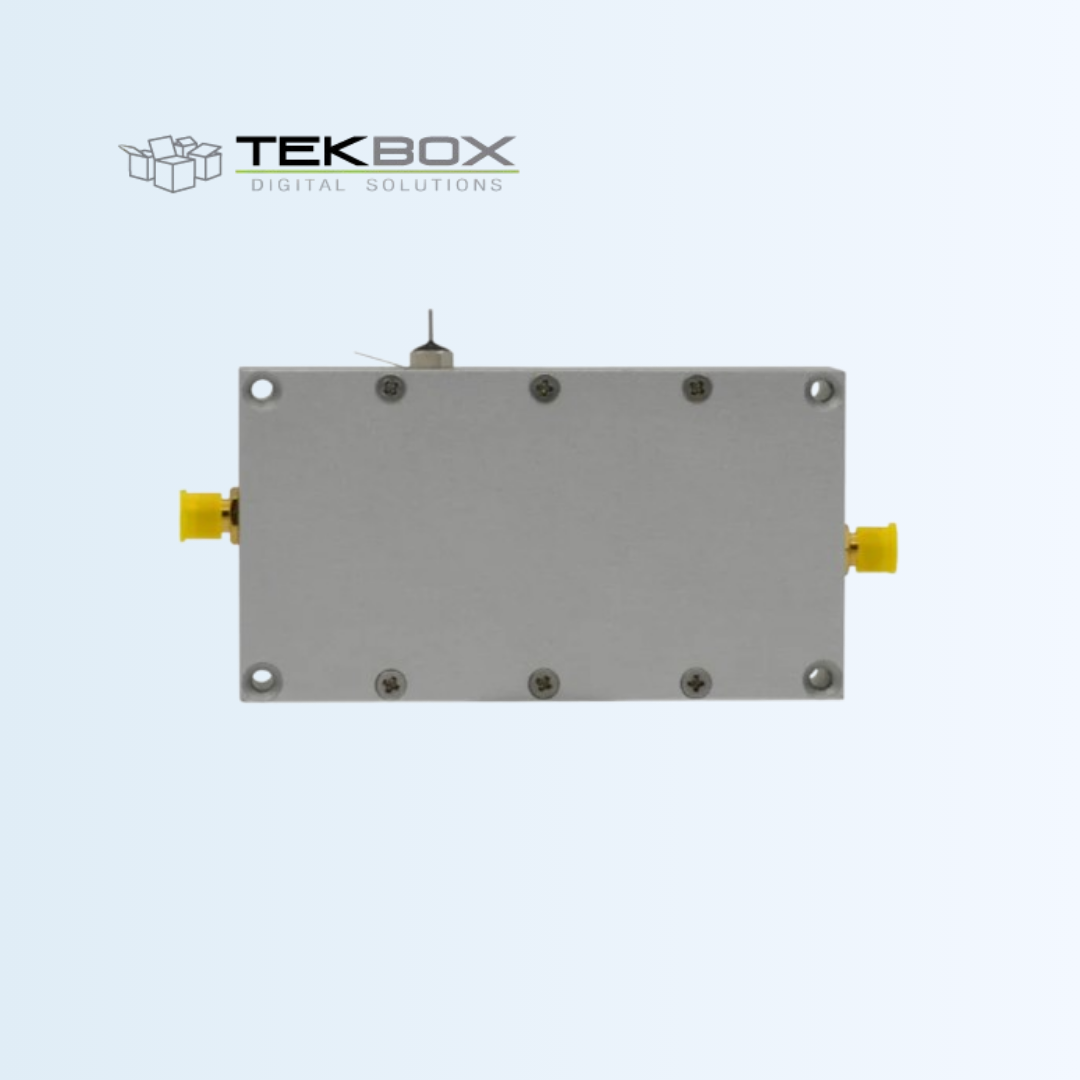

TBRFH6
RF Housing
The TBRFH6 housing is ideal for RF building blocks such as amplifiers or similar. The housing is milled from aluminium and equipped with SMA-female connectors and a feed through capacitor for the power supply line.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer dimensions [mm] | 50 x 91.4 x 18 |
| Inner dimensions [mm] | 39.7 x 84.4 x 9.5 |
| Material | Alu A6061 |
| RF connectors | SMA-Female |
| Detail | Feed through capacitor, 10nF, 50V |
| Weight [g] | 180 |
