- Designed for accommodating passive RF building blocks like filters and attenuators.
- Suitable for RF circuits operating up to 6 GHz.
- Includes BNC-Male and BNC-Female connectors for easy coaxial interfacing.
- Comes with an RF absorbing foam pad that helps suppress coupling and cavity resonance.
- Compact threaded cylindrical housing for secure fit and mechanical support.
TBRFH7
RF Housing

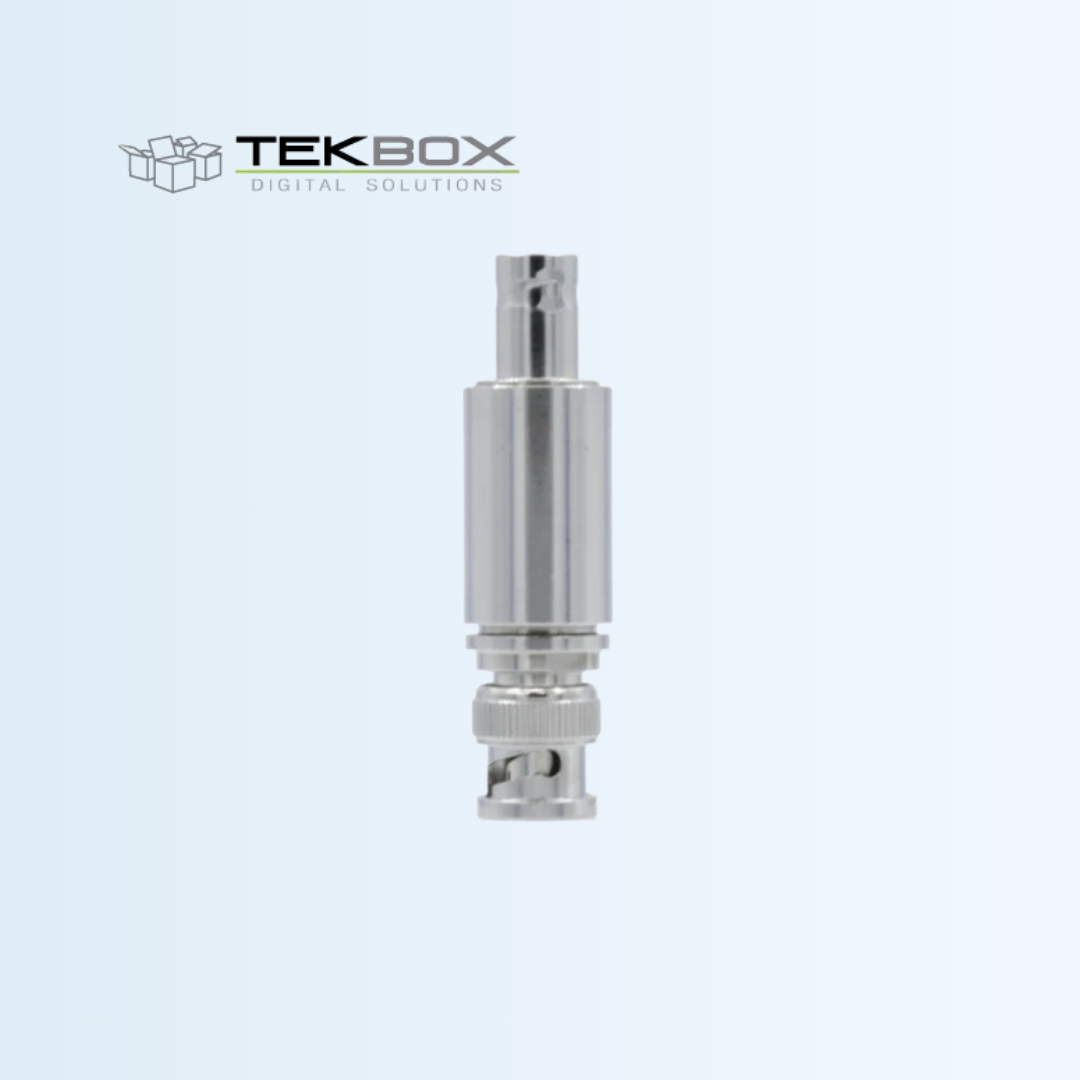

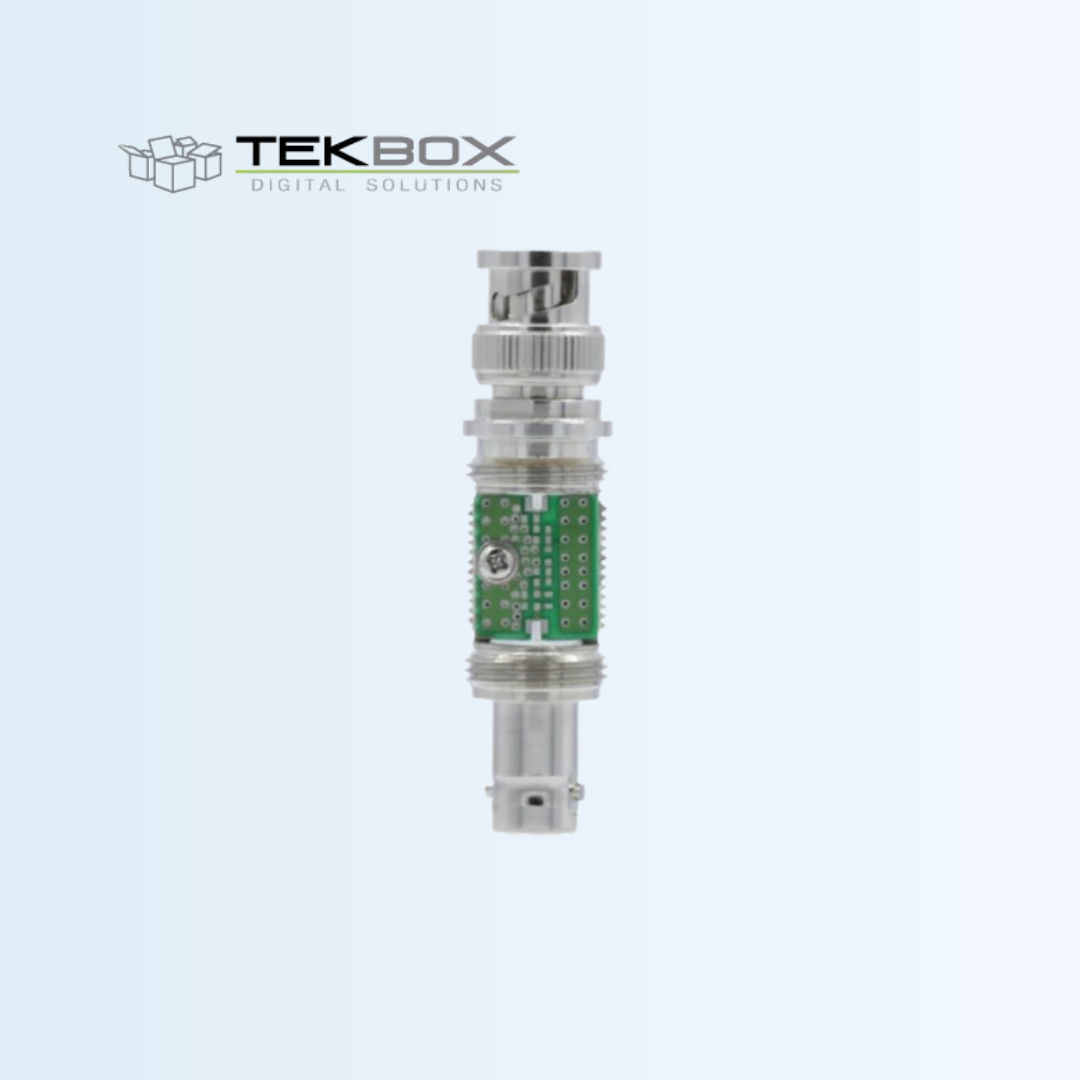

The TBRFH7 RF housing is ideal for accommodating passive RF building blocks operating up to 6 GHz. The housings consists of a chassis carrying a female and a male BNC connector and a threaded cylinder. The housings are ideal for passive RF building blocks such as filters or attenuators. The housings come with an RF absorbing pad to suppress coupling and cavity resonance.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Diameter | 17 mm max. |
| Length | 62.7 mm |
| Weight | 60 g |
| Max. PCB dimension | 15,5 mm x 13.6 mm, max. 1.2 mm PCB thickness |
| Housing material | Brass, Nickel plated |
| RF connectors | BNC-Male, BNC-Female |
| RF absorbing foam | Carbon loaded, 1 GHz to 18 GHz, 15 mm x 12mm, 3.2 mm thickness |
