- Designed to house RF building blocks like amplifiers, filters, and similar modules.
- Milled aluminium construction for strength, shielding and durability.
- SMA-female RF connectors on both ends for flexible coaxial connection.
- Includes a feed-through capacitor (10 nF / 50 V) for power or bias line integration.
- Sandblasted surface finish for professional appearance and long service life.
TBRFH5
RF Housing

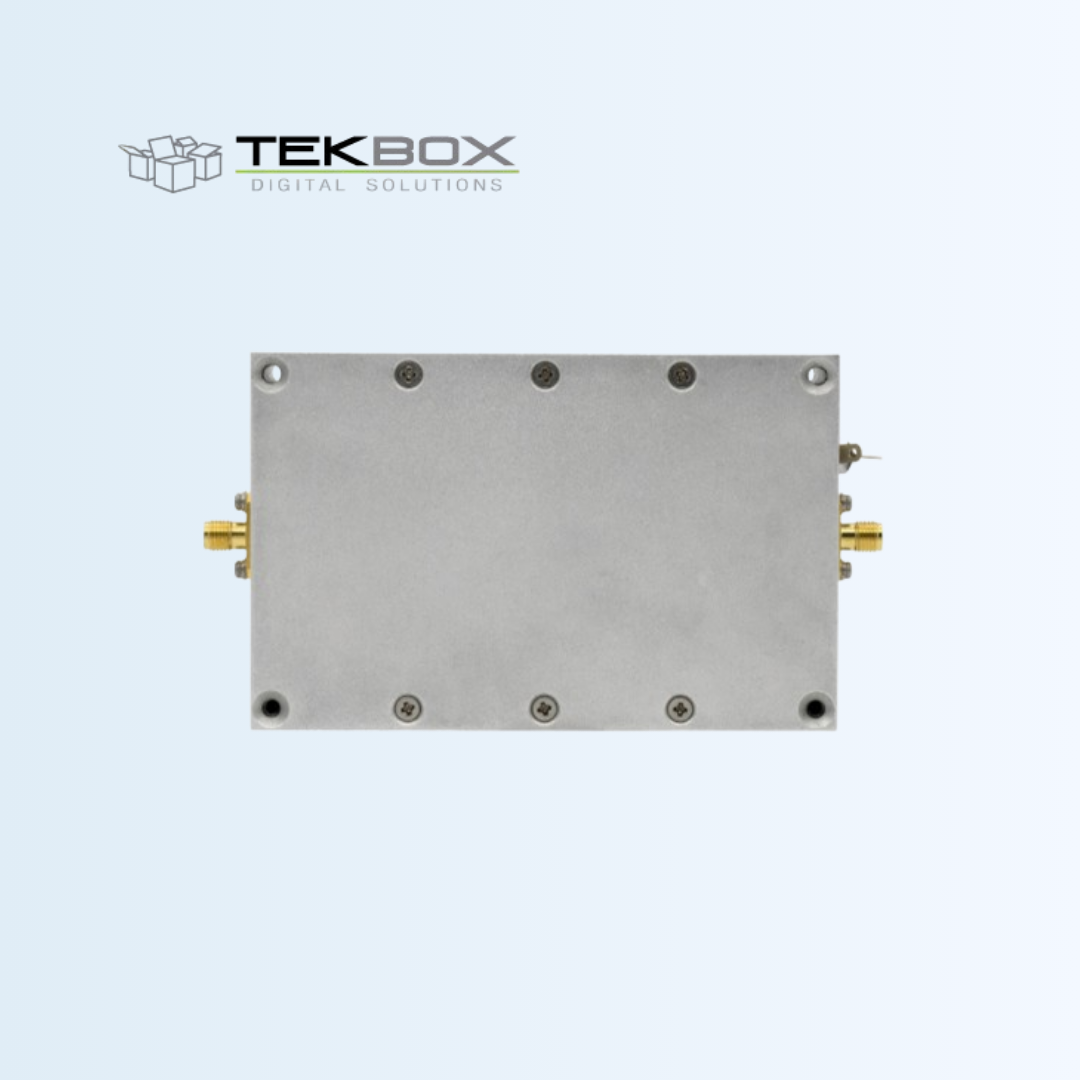

The TBRFH5 housing is ideal for RF building blocks such as amplifiers or similar. The housing is milled from aluminium and equipped with SMA-female connectors and a feed-through capacitor for the power supply line.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer dimensions [mm] | 68 x 106 x 32 |
| Inner dimensions [mm] | 54 x 98 x 22 |
| Material | Alu A6061 |
| RF connectors | SMA-Female |
| Detail | Feed through capacitor, 10nF, 50V |
| Weight [g] | 380 |
