- Designed to house RF modules and building blocks such as amplifiers or similar components.
- Milled aluminium construction for mechanical strength and RF shielding.
- Includes SMA-female connectors on both ends for easy coaxial interfacing.
- Feed-through capacitor (10 nF / 50 V) incorporated for power or bias lines, improving integration and filtering.
- Sandblasted surface finish for durability and professional appearance.
- Compact size suitable for lab benches, test fixtures, or prototype enclosures
TBRFH4
RF Housing

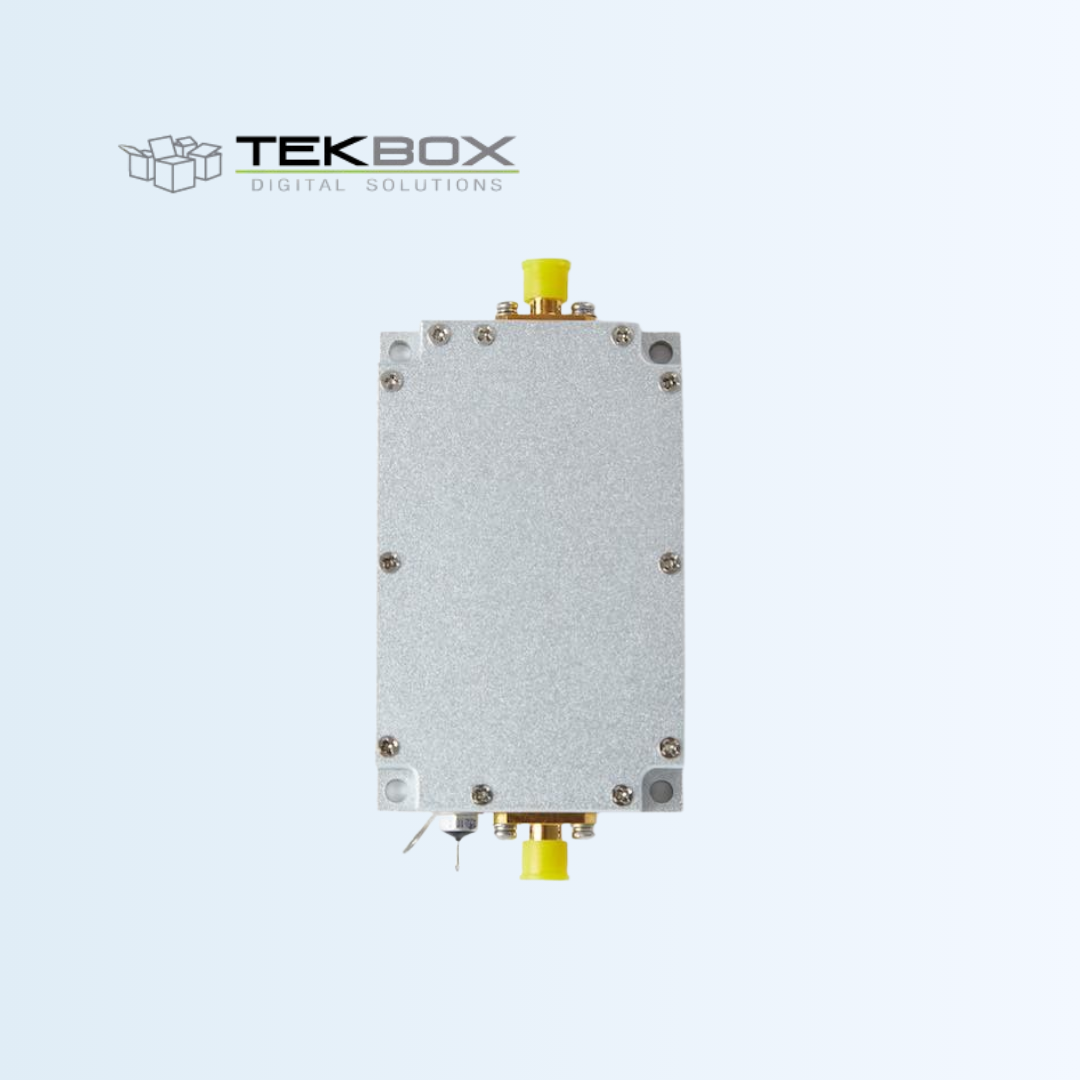

The TBRFH4 housing is ideal for RF building blocks such as amplifiers or similar. The housing is milled from aluminium and equipped with SMA-female connectors and a feed-through capacitor for the power supply line.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer dimensions [mm] | 48 x 76 x 12 |
| Inner dimensions [mm] | 40,2 x 67,7 x 6.5 |
| Material | Alu A6061 |
| RF connectors | SMA-Female |
| detail | Feed through capacitor, 10nF, 50V |
| Weight [g] | 130 |
