- Ideal for RF building blocks operating up to 6 GHz.
- Consists of a 1-inch aluminium profile with matching RF connectors mounted at each end.
- Wide flexibility in RF connector combinations, including N-type, BNC, and SMA (male and female variants available).
- RF absorbing foam pads included to help suppress unwanted electromagnetic coupling and cavity resonances.
- Optional feed-through capacitor (10 nF / 50 V) can be included for supply or signal lines.
- Solderable sheet metal ground pads simplify establishing a good RF ground connection between the enclosure and the PCB.
- Housing length can be selected or customised on request (standard lengths 35 mm, 50 mm, 100 mm).
TBRFH1
RF Housing

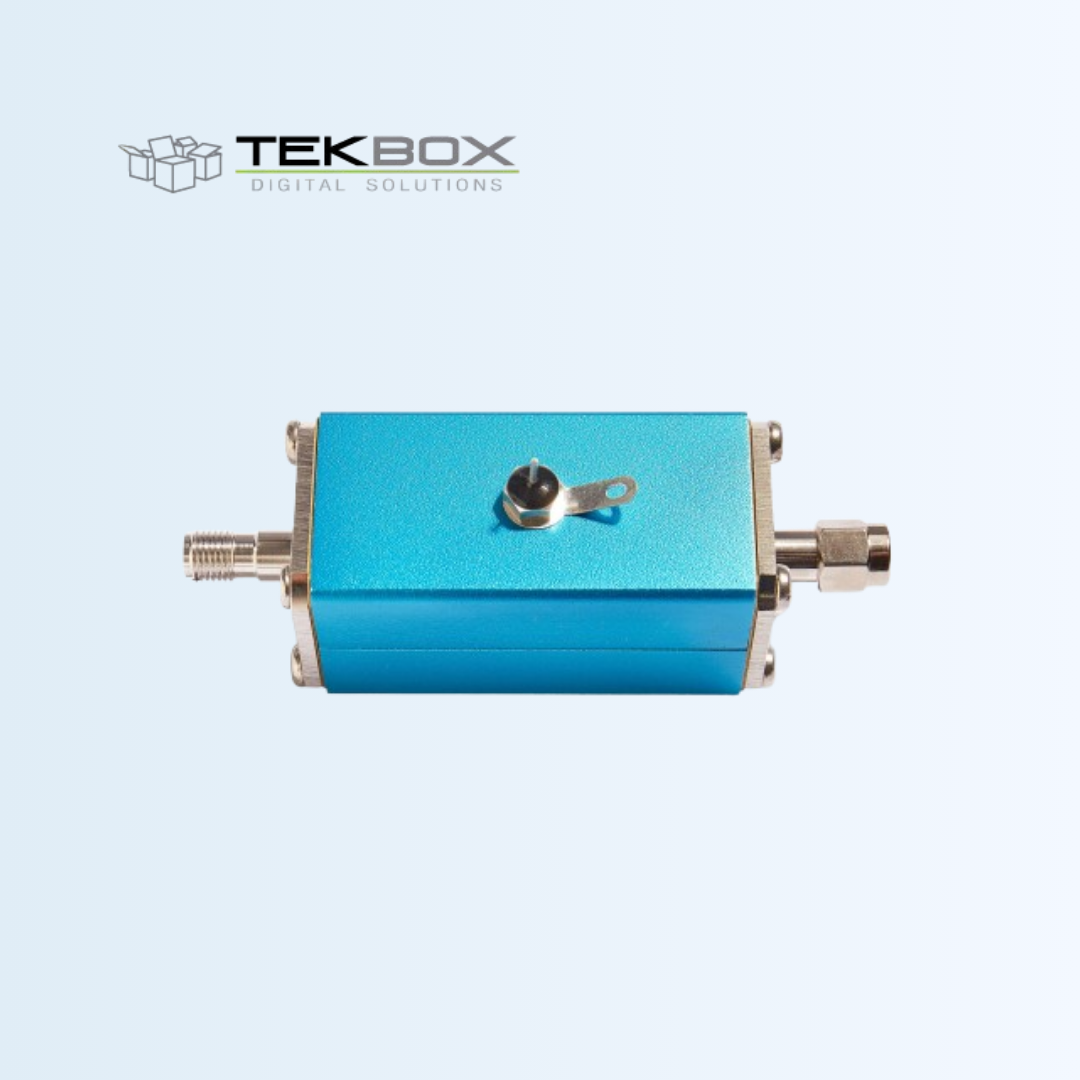

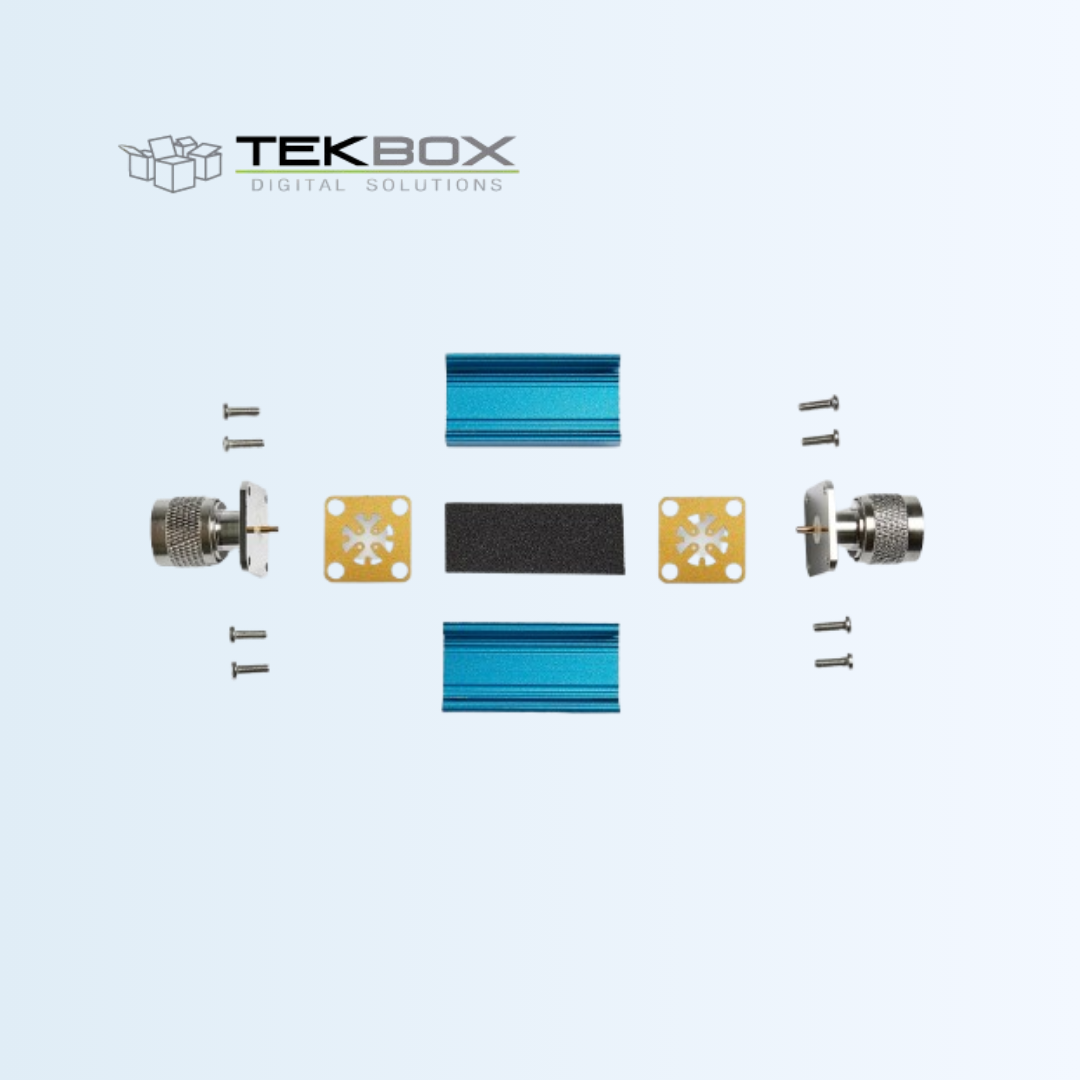

The TBRFH1 series of RF housings are ideal for RF building blocks operating up to 6 GHz. The housings consists of a 1 inch aluminium profile with mechanically matching RF connectors on each end. The user can select a wide range of RF connector combinations, various housing lengths and optional feed through capacitors. The housings come with RF absorbing pads to suppress coupling and cavity resonance. Solderable sheet metal ground pads, sandwiched between the connectors and the aluminium profile simplify establishing the ground connection.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer cross section | 25,6 mm x 25,8 mm |
| Inner cross section | 20,4 mm x 20,6 mm |
| Housing material | anodized aluminium, exposed aluminium at front and rear side |
| Standard lengths | 35 mm, 50 mm, 100 mm (length of the connector not included) |
| RF connector variants | N-Male, N-Female, BNC-Male, BNC-Female, SMA-Male, SMA-Female |
| Feed-through capacitor | 10nF / 50V; default centered placement, optional |
| RF absorbing foam | carbon loaded, 1 GHz to 18 GHz, adhesive backing, 3.2 mm thickness: – 8dB loss @ 10 GHz, 6.4 mm thickness: – 21,5 dB loss @ 10 GHz |
