- Purpose-built for forward/reverse power measurement in RF and EMC tests.
- Wide frequency coverage: characterized from 200 kHz to 700 MHz.
- Good directivity for accurate measurement separation of forward and reflected power.
- Low insertion loss (typically < 0.7–1.5 dB) across its operating band.
- Suitable for demanding RF setups Compact design with standard RF
- Ideal for EMC immunity tests, HF/VHF RF measurement setups, and general power diagnostics.

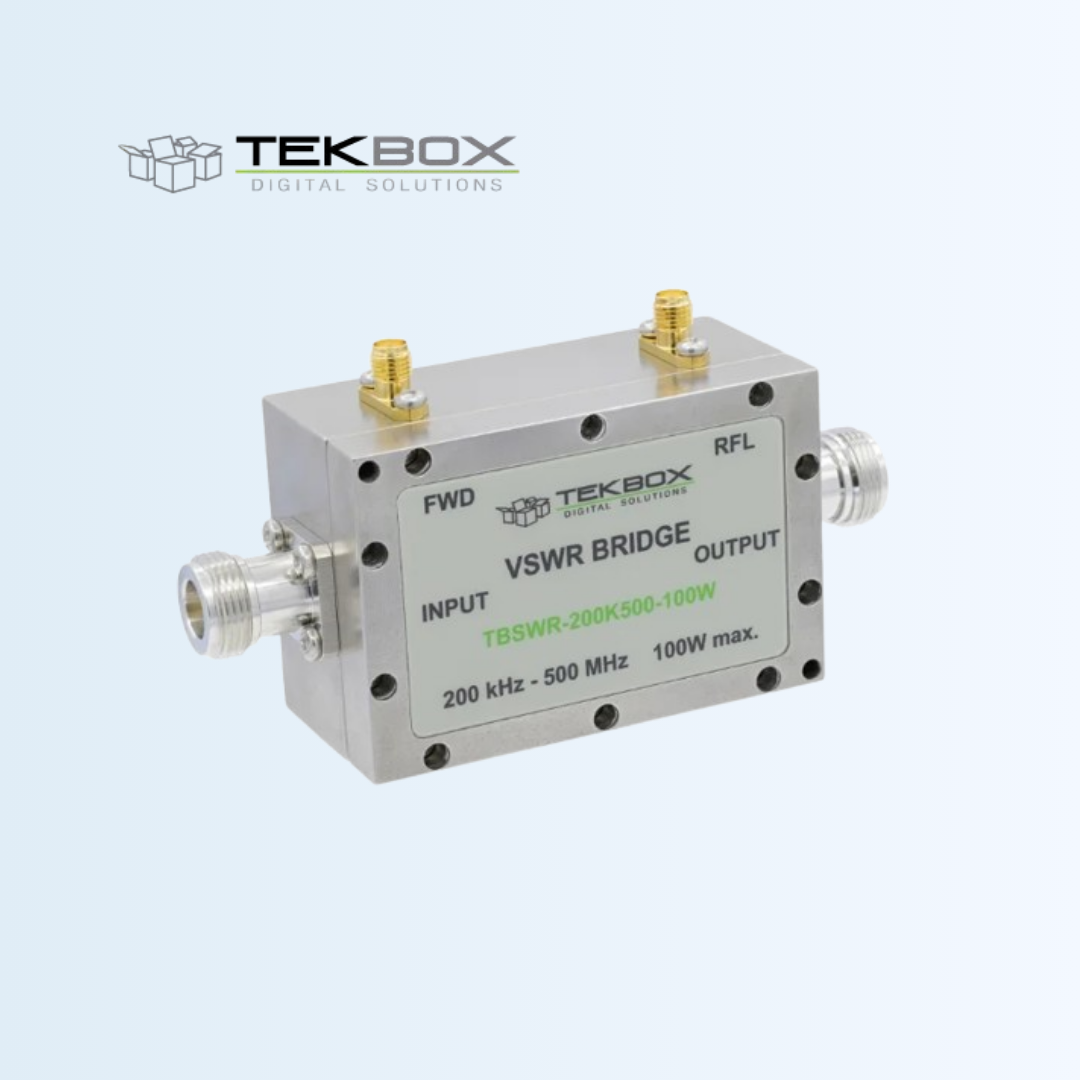

TBSWR-600K700
High Power VSWR Bridge
The Tekbox TBSWR-600K700 is a high-power VSWR (Voltage Standing Wave Ratio) bridge designed for forward and reverse RF power measurements in EMC immunity test setups — especially with BCI probes (Substitution Method) — and general high-power applications in the HF and VHF frequency ranges. It combines the wide frequency range and strong directivity of a directional bridge with the low insertion loss and power handling capability of a directional coupler.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 200 kHz – 700 MHz |
| Directivity | 600 kHz – 700 MHz (> 20 dB) / 10 MHz – 500 MHz (> 30 dB) |
| Coupling | 300 kHz – 700 MHz -30 dB ± 0.5 dB |
| Insertion loss | 200 kHz – 100 MHz (< 0.7 dB) / 100 MHz – 700 MHz (< 1.5 dB) |
| Max. power | 200 kHz – 200 MHz 50 W CW *) / 200 MHz – 700 MHz 40 W CW *) |
| *) Output shorted or open | max. 12.5 W |
| Operating temperature range | – 20 °C to + 40 °C |
| Impedance | 50 Ω |
| Port matching | > 20 dB |
| RF connectors, through ports | N-female |
| RF connectors, coupling ports | SMA-female |
| Dimensions | 113 mm x 60 mm x 35 mm |
| Weight | 290 g |

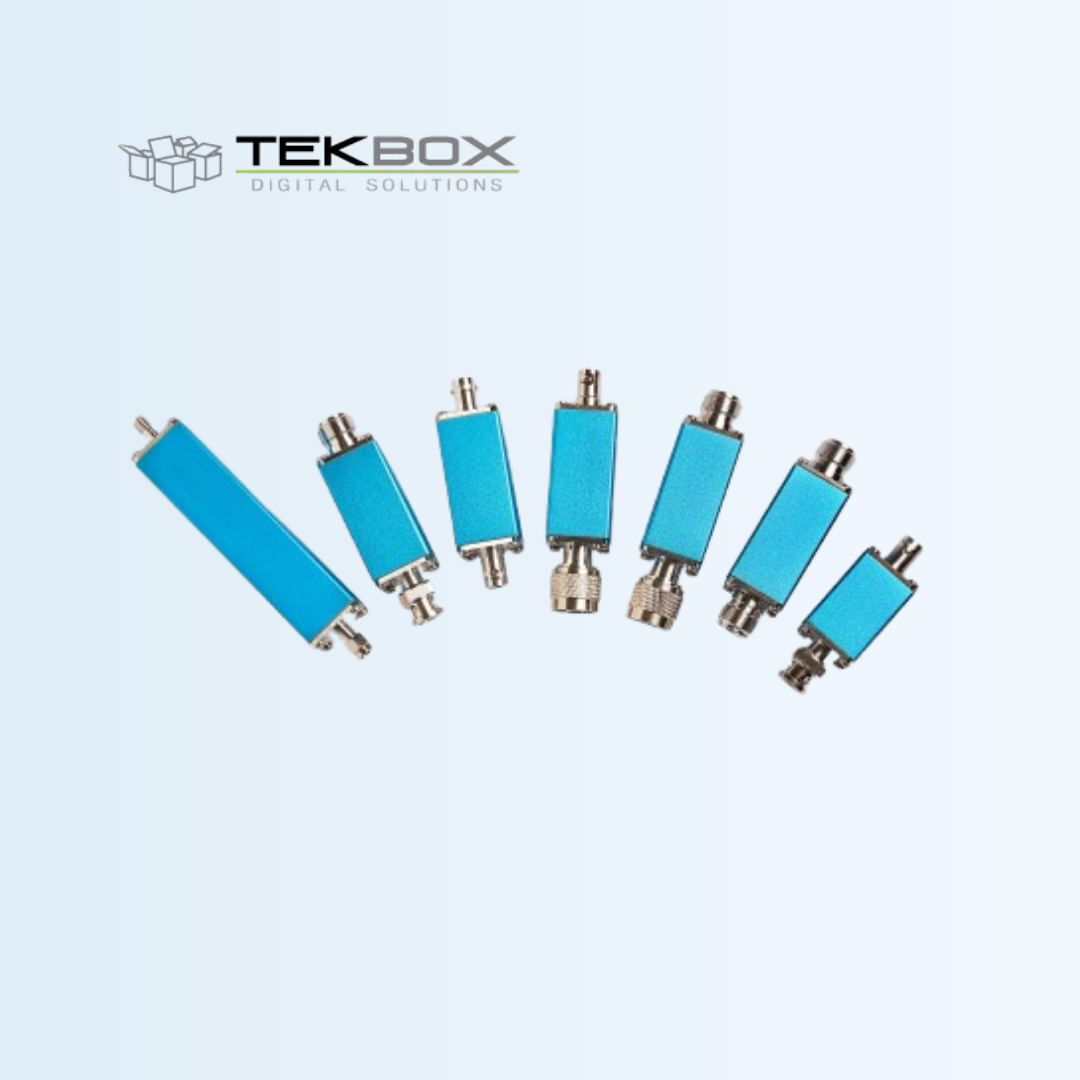

Other Products in RF Accessories
