- Spectrum Analyzer
- Real-Time Spectrum Analyzer (RTSA)
- Interference Analyzer
- True Power Meter
- Cable and Antenna Analyzer
- Tracking Generator
- AM/FM modulation quality measurements
- LTE FDD/TDD Analyzer
- 5GNR FR1 Analyzer
- Coverage Mapping
- Built-in PDF/HTML report generation
- Secure Data Mode
- Channel Scanner
MS2080A
Field Master™

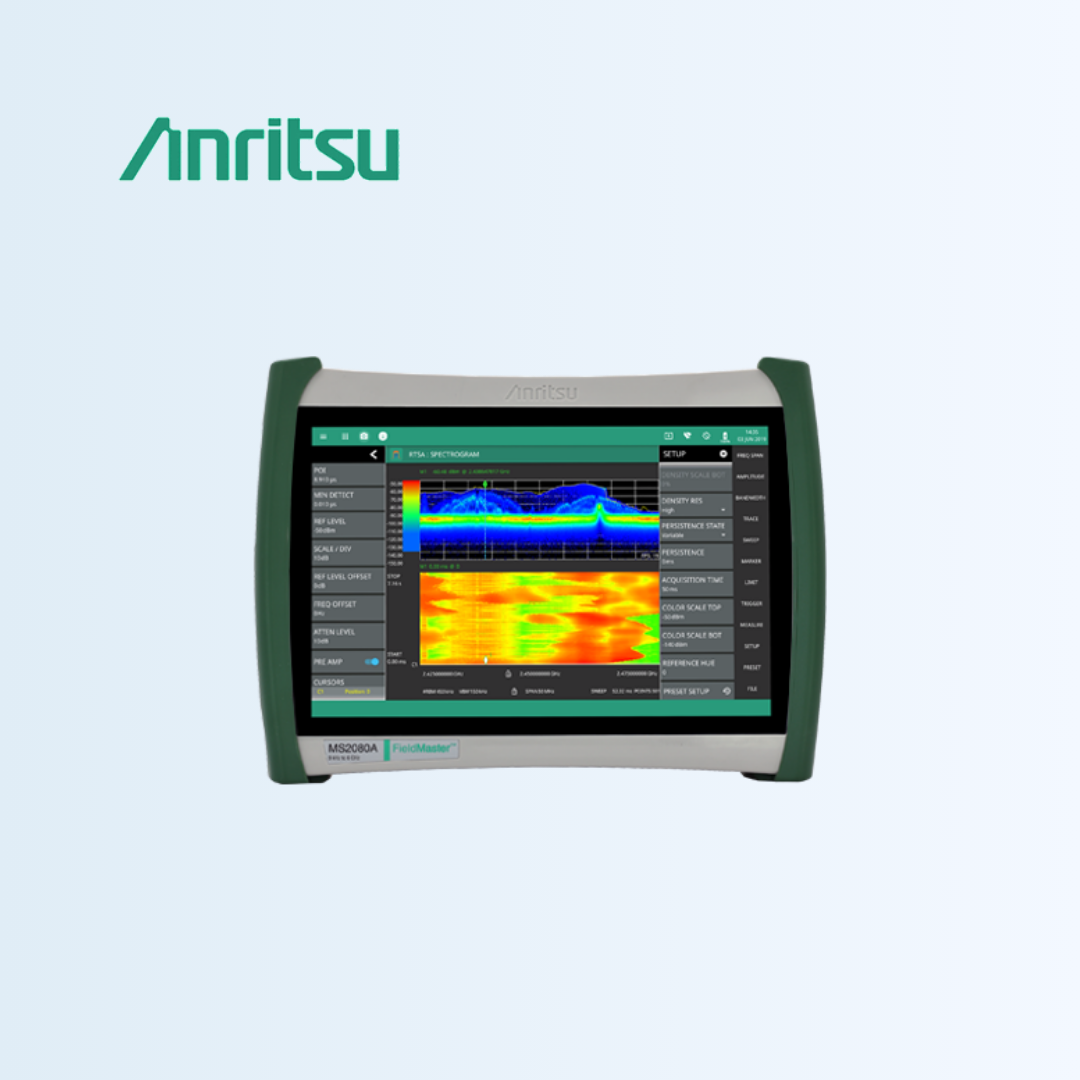

The MS2080A builds on Anritsu’s pioneering history of developing reliable and dependable instruments for the world’s most demanding RF measurements in the toughest environments. Weighing less than 9 pounds (4 kg), the MS2080A is small, compact, and easy to carry. When hunting for interfering RF signals in the field, MS2080A offers a wide range of features to identify and locate the source. A fast sweep speed of 45 GHz/s coupled with AM/FM demod and RF source geolocation help pinpoint the position of interfering signals fast. The optional real-time spectrum analyzer captures even the shortest of bursted or TDD signals and the addition of the S331P Site Master enables cable and antenna line sweep measurements on the same instrument.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | 9 kHz to 4 GHz, 9 kHz to 6 GHz (Option 706) |
| Sweep speed | 45 GHz/s |
| Phase noise | –95 dBc/Hz @ 1 GHz freq, 100 kHz offset |
| DANL | < –165 dBm (with preamp) |
| Maximum input signal | +30 dBm |
| Dynamic range | >105 dB minimum at 2.4 GHz, 2/3 (TOI–DANL) in 1 Hz RBW |
| Amplitude range | DANL to +30 dBm |
| Tracking generator | –45 dBm to +9 dBm (Tracking, Offset Tracking, CW) |
| Input damage level | 5 Watts |
| Aging | ±1.0 × 10⁻⁶ per year |
| Accuracy | ±0.28 × 10⁻⁶ (–10 °C to +55 °C) plus aging |
| Amplitude accuracy | ±1 dB (±0.5 dB typical) |
| Resolution bandwidth (sweep mode) | 1 Hz to 5 MHz |
| Resolution bandwidth (zero span) | 10 Hz to 20 MHz |
| RTSA bandwidth | 40 MHz |
| Demodulation | 5GNR base station, LTE base station, AM/FM modulation quality |
