- PC application for IQ data capture and post processing

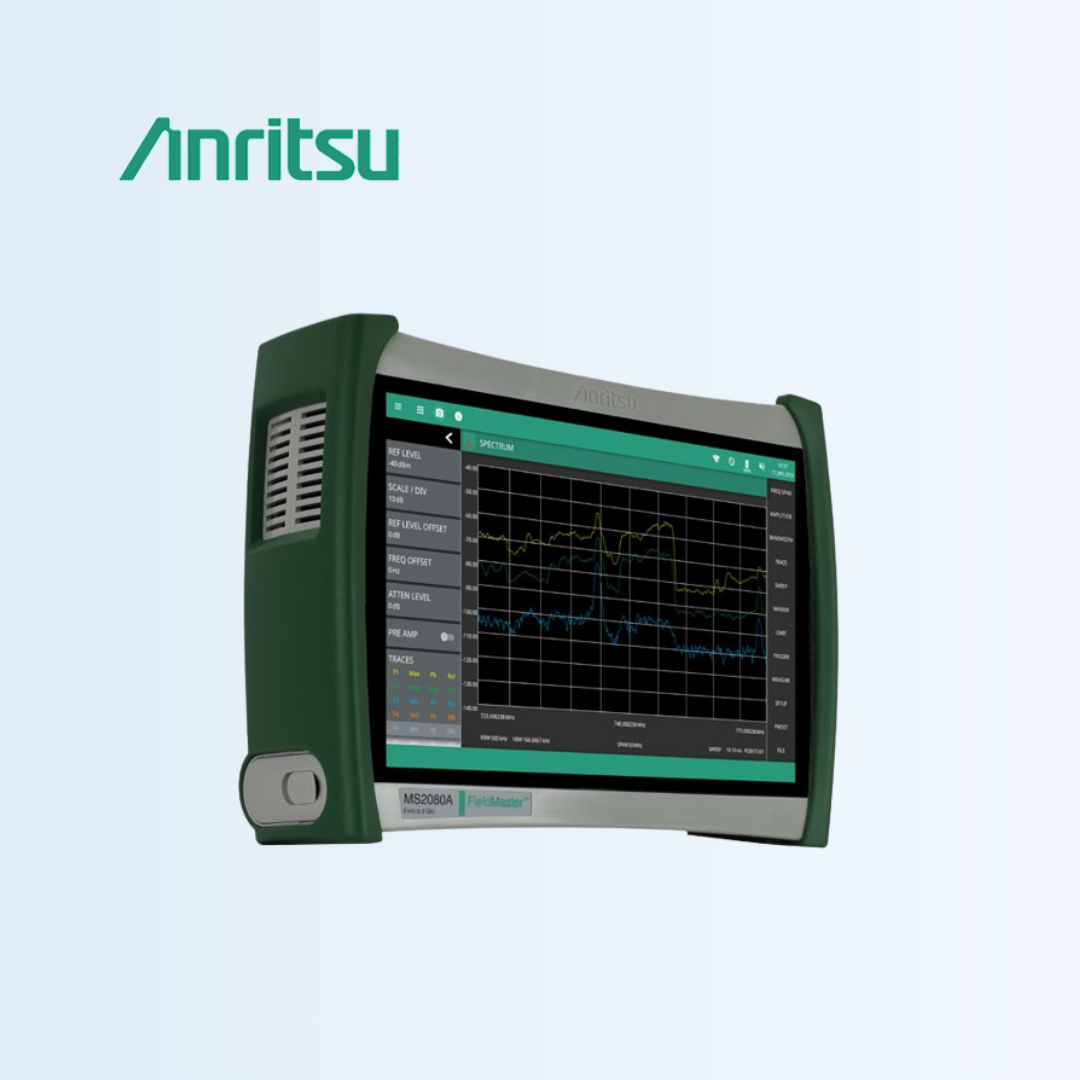

- Compatible with MS2090A, MS2080A, MS27200A, MS27201A and MS2710xA spectrum analyzers
- IQ file browser with detailed view of IQ file metadata
- IQ data capture control from within the MX280005A GUI
- Basic IQ data viewer
- IQ Player offers high resolution Frequency vs Time display
- AM/FM demodulation
- Spectrum view of data window in capture
- IQ file format converter
- Continuous or single shot captures
- Modulation quality and analysis of common modulation standards
MX280005A
IQ Signal Master Vector Signal Analysis Software
IQ Signal Master MX280005A Vector Signal Analysis Software provides a comprehensive suite of measurements that deliver post processing and analysis of IQ data files captured on Anritsu MS2090A, MS27201A and MS2710XA spectrum analyzers. The software is designed to bring together all the essential tools required to capture IQ data files and then gain critical insights into the nature of the captured signals. Modes within the application support the ability to capture or stream IQ data into the PC memory, perform modulation quality measurements and playback IQ data with high frequency and time resolution.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Software Type | Vector Signal Analysis / IQ Signal Post-Processing Software |
| Supported OS | Windows 10, Windows 11 |
| Supported Input Instruments / Capture Sources | Compatible with spectrum analyzers such as MS2090A, MS27201A, MS2710xA (with required options) |
| IQ Data Capture / Streaming | Can import IQ data files captured by supported analyzers; supports streaming IQ data into PC memory for real-time capture/download |
| Supported Signal Analysis Bandwidth | Dependent on capture instrument (e.g. up to 110 MHz IQ bandwidth when used with compatible analyzers) |
| Licensing | Node-locked PC license or USB dongle license required to enable full features (IQ Player, IQ Converter) |
