- Cable and Antenna Analyzer: 5 kHz to 4, 6 GHz
- Return Loss, Cable Loss, VSWR, Distance-To-Fault, Time Domain Reflectometry, Smith Chart, 1-Port Phase
- 105 dB of dynamic range from 50 kHz to 3 GHz typical
- 350 μs/data point in fast sweep mode
- Built-in PDF/HTML report generation
- 10,049 data points
- Spectrum Analyzer: 9 kHz to 4, 6 GHz
- Real-Time Spectrum Analyzer (RTSA)
- IQ Capture/streaming
- Interference Analyzer
- True Power Meter

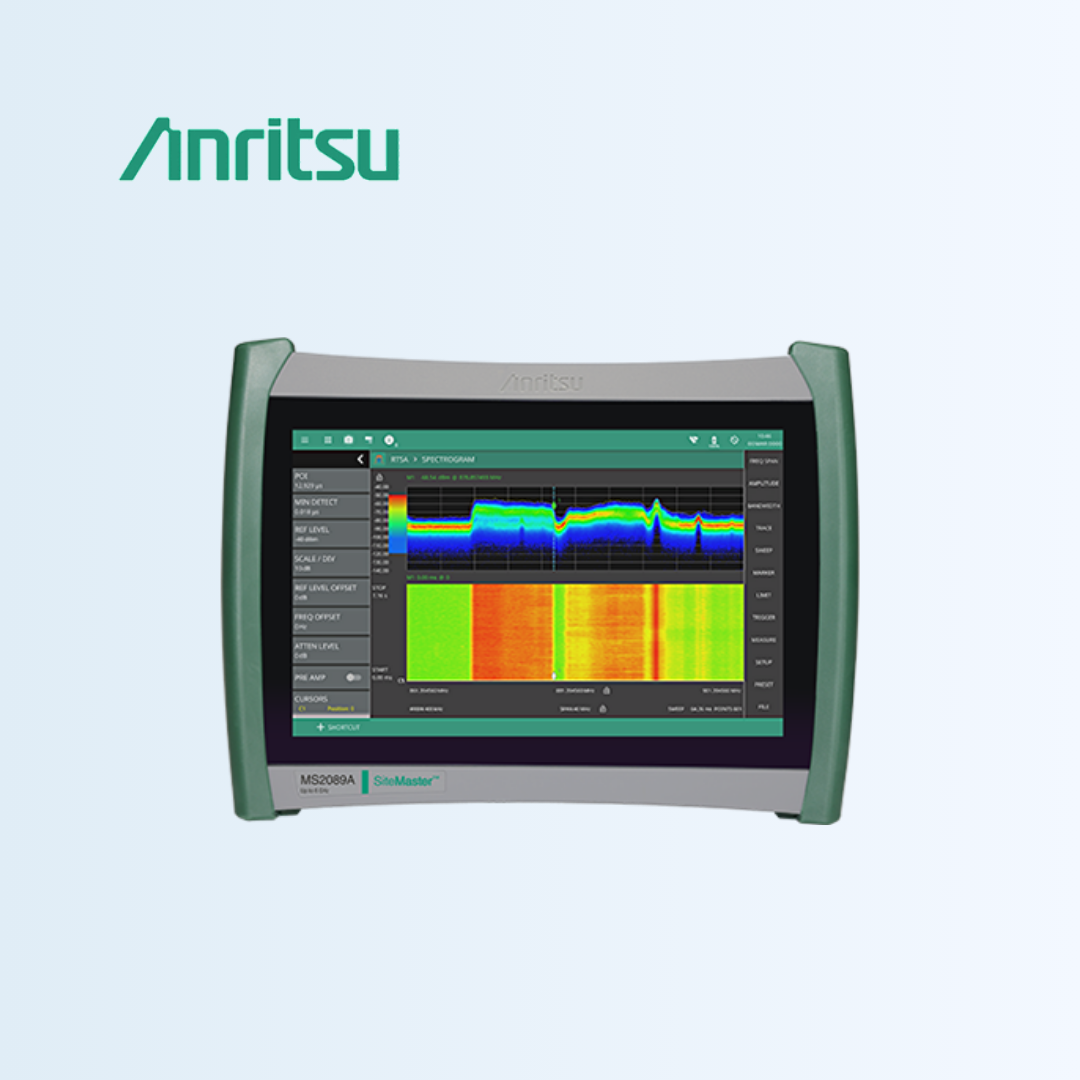

MS2085A-MS2089A
Site Master Handheld Cable And Antenna Analyzer with Spectrum Analyzer and VNA Option
MS2085A Cable and Antenna Analyzer 5 kHz to 4 GHz or 6 GHz Vector Network Analyzer Option 5 kHz to 4 GHz or 6 GHz. MS2089A Cable and Antenna Analyzer 5 kHz to 4 GHz or 6 GHz Spectrum Analyzer 9 kHz to 4 GHz or 6 GHz Vector Network Analyzer Option 5 kHz to 4 GHz or 6 GHz
The latest Generation Anritsu Site Master integrates cutting-edge technology, customer-driven innovation, and decades of expertise in test and measurement solutions. It seamlessly integrates cable and antenna analysis with spectrum analysis and VNA functionalities, offering a comprehensive testing solution for professionals in the wireless industries. From telecommunications and broadcasting to aerospace and defense, the Site Master cable and antenna analyzer with Integrated spectrum analyzer caters to a wide range of applications, including DAS, satellite monitoring, interference analysis, and installation and maintenance tasks.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Analyzer Type | Handheld Cable & Antenna Analyzer + Spectrum Analyzer (option) + optional VNA |
| Cable & Antenna / VNA Frequency Range | 5 kHz to 4 GHz or 6 GHz |
| Spectrum Analyzer Frequency Range | 9 kHz to 4 GHz or 6 GHz (depending configuration) |
| Sweep Speed (fast sweep mode) | 350 µs per data point (Cable & Antenna Analyzer) |
| Dynamic Range (Cable & Antenna Analyzer) | ~105 dB (50 kHz to 3 GHz, typical) |
| Dynamic Range (Spectrum Analyzer) | > 106 dB minimum at 2.4 GHz (TOI-DANL, measured in 1 Hz RBW) |
| DANL (Displayed Average Noise Level) | –167 dBm (typical, with preamp on) |
| Phase Noise | –123 dBc/Hz @ 1 GHz, 1 MHz offset (typical) |
| Max Input Signal (Spectrum) | +30 dBm (damage level 5 W) |
| Display | 10.1-inch capacitive touchscreen, resolution 1280×800 |
