- 9 kHz to 9/14/20/26.5/32/43.5/54 GHz
- DANL: -164 dBm (with preamp)
- TOI: +20 dBm (typical)
- Analysis bandwidth: 110 MHz
- Amp range: DANL to +30 dBm
- Phase noise at 1 GHz: -110 dBc/Hz @ 100 kHz offset (typical)
- Demodulation: 5GNR, LTE FDD/TDD, RF, and modulation quality plus SSB signal analysis
- Channel Scanner Resolution bandwidth (RBW): 1 Hz to 10 MHz
- Real-Time Spectrum Analysis (RTSA) 110 MHz bandwidth
- Amplitude accuracy: < 14 GHz ± 1.3 dB (± 0.5 dB, typical)
- Zero span with 60 ns minimum span
- IQ capture and streaming
- AM/FM modulation quality measurements
- Uplink/Downlink interference analysis

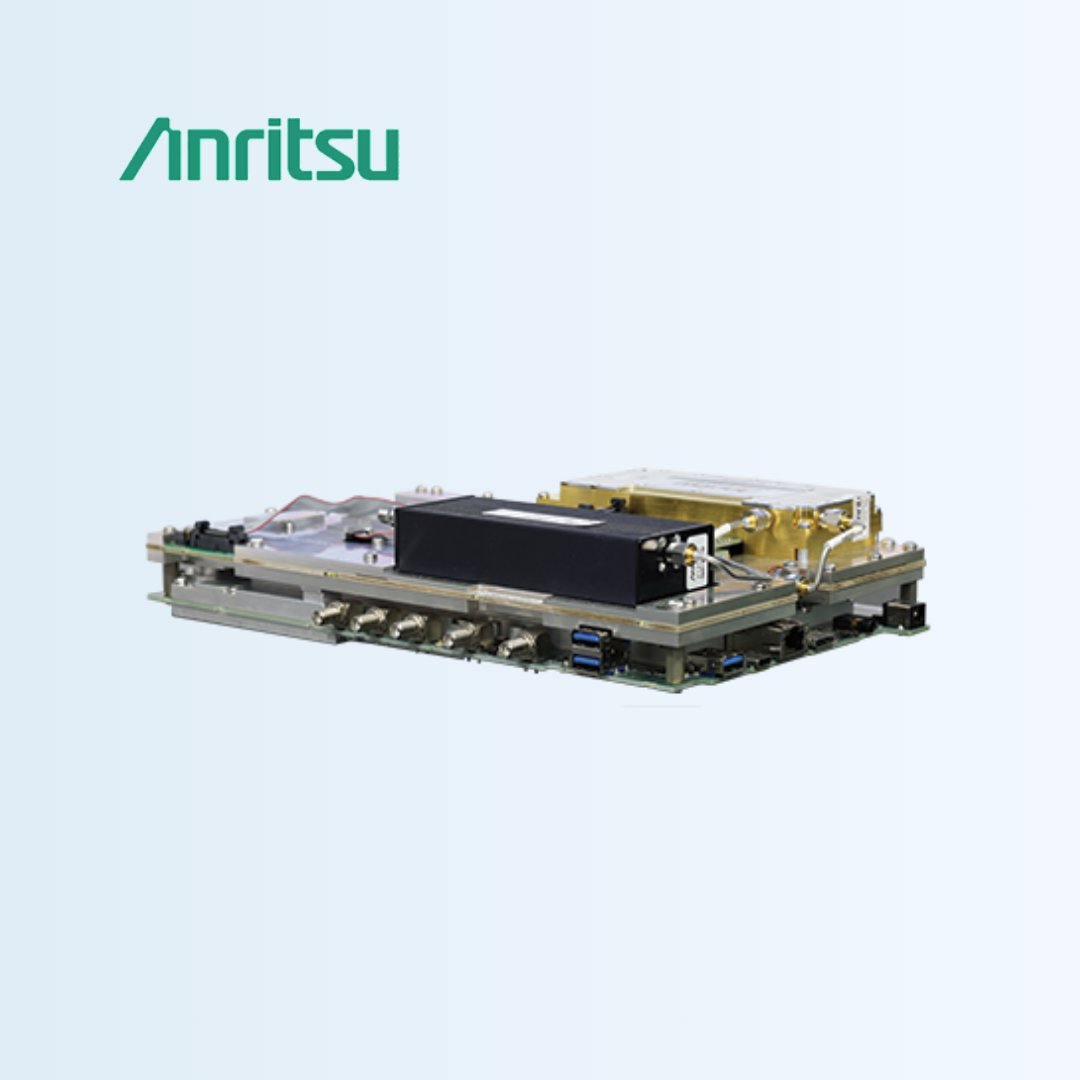

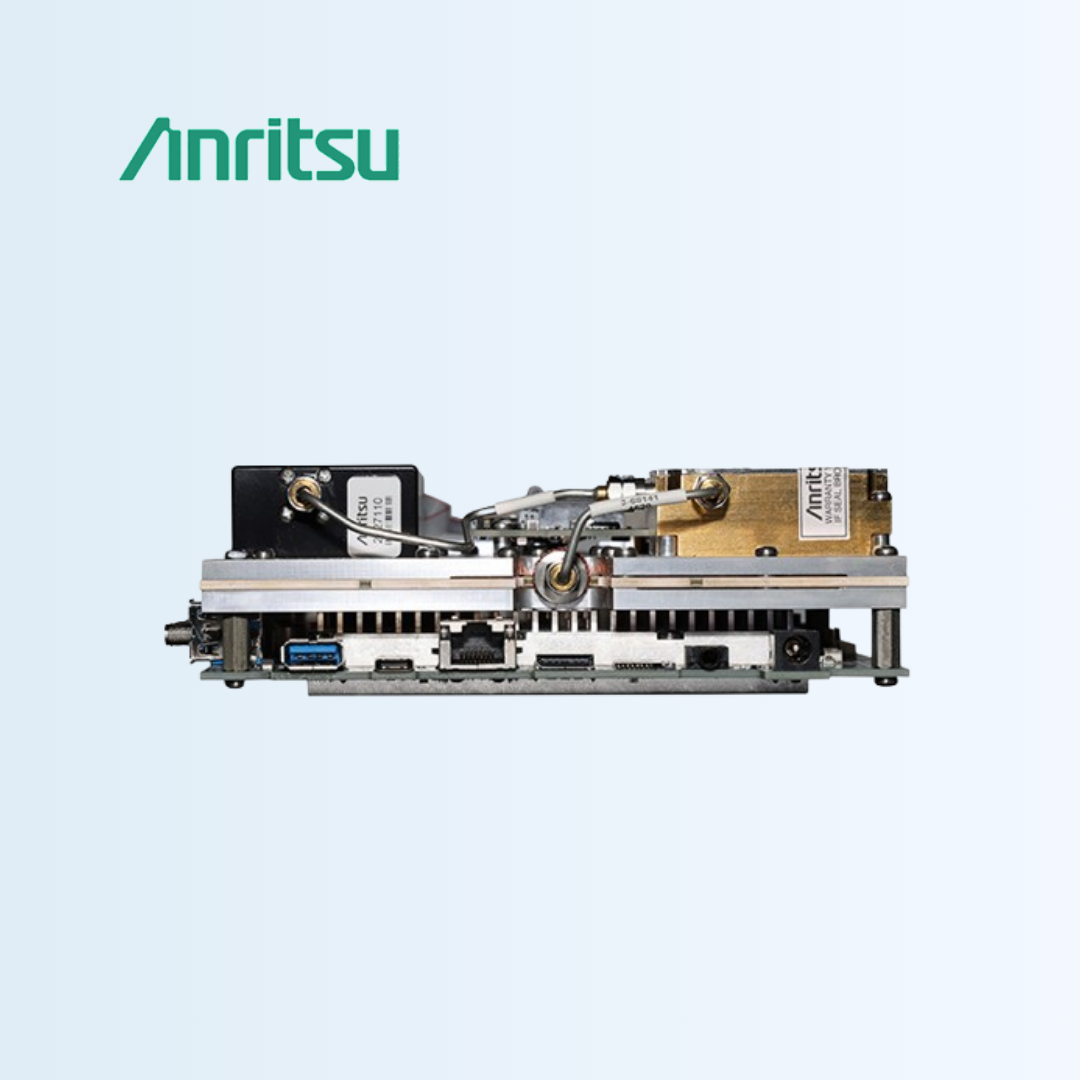

MS27200A
Microwave Spectrum Monitor Module
The Anritsu MS27200A Microwave Spectrum Monitor Module represents decades of experience in spectrum analysis that can be integrated into any system. It has advanced built-in capabilities such as 5G, LTE, AM/FM, WCDMA, RTSA, and IQ capture and streaming. The module can perform a multitude of measurements without the need for an external PC to process the trace data. All communication is done via SCPI commands.
The MS27200A provides the top-tier RF performance for any system. With a displayed average noise level (DANL) of -164 dBm and Third-Order Intercept (TOI) of +20 dBm (typical), it provides top-level accuracy performance out of your spectrum analyzer. Providing top-level accuracy performance out of your spectrum analyzer. The module has up to 110 MHz analysis bandwidth, providing a powerful RTSA and the ability to capture large bandwidth signals.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency Range | 9 kHz to 54 GHz (model-dependent) |
| Real-Time Analysis Bandwidth | Up to 110 MHz (Option 104) |
| RBW (Resolution Bandwidth) | 1 Hz to 10 MHz |
| DANL (Displayed Average Noise Level) | –164 dBm (with preamp, 1 Hz RBW, typical) |
| TOI (Third Order Intercept) | +20 dBm (typical) |
| Phase Noise | –106 dBc/Hz @ 10 kHz offset (1 GHz) |
| Amplitude Range | From DANL up to +30 dBm |
| Sweep Modes | Real-time, FFT, Zero-span, Sweep |
| Modulation Support | 5G-NR, LTE (FDD/TDD), WCDMA, AM/FM, generic IQ |
| IQ Capture Bandwidth | Up to 110 MHz (option dependent) |
| Data Output | IQ streaming, trace data, event logs |
| Control Interface | Ethernet (1 Gbps), USBTMC (USB Type-C), SCPI control |
