- Interference hunting & spectrum clearing – quickly identifies interfering signals with real-time spectrum analyzer.
- Interference finder option – AM/FM demodulation, audio output, and triangulation on digital map.
- Broadcast transmitter analysis – measures AM/FM quality, harmonics, spurious, bandwidth, and channel power.
- Microwave radio links – up to 54 GHz, verifies power and modulation during installation/maintenance.
- Satellite system monitoring – monitors downlink signals for interference and noise.
- Pulse radar measurements – analyzes pulsed radar with high resolution and fast sweep times.
- LTE base station measurements – OTA/direct connect, including EVM, channel power, MIMO, ACLR, and coverage mapping.
- 5GNR base station measurements – validates gNB performance: frequency error, modulation, emissions, EIRP, and time-gated measurements.
- LTE & 5G coverage mapping – continuous RF measurements displayed on digital maps or floor plans.
- Cable & antenna measurements – line sweep RF cables and antennas with S331P Site Master.

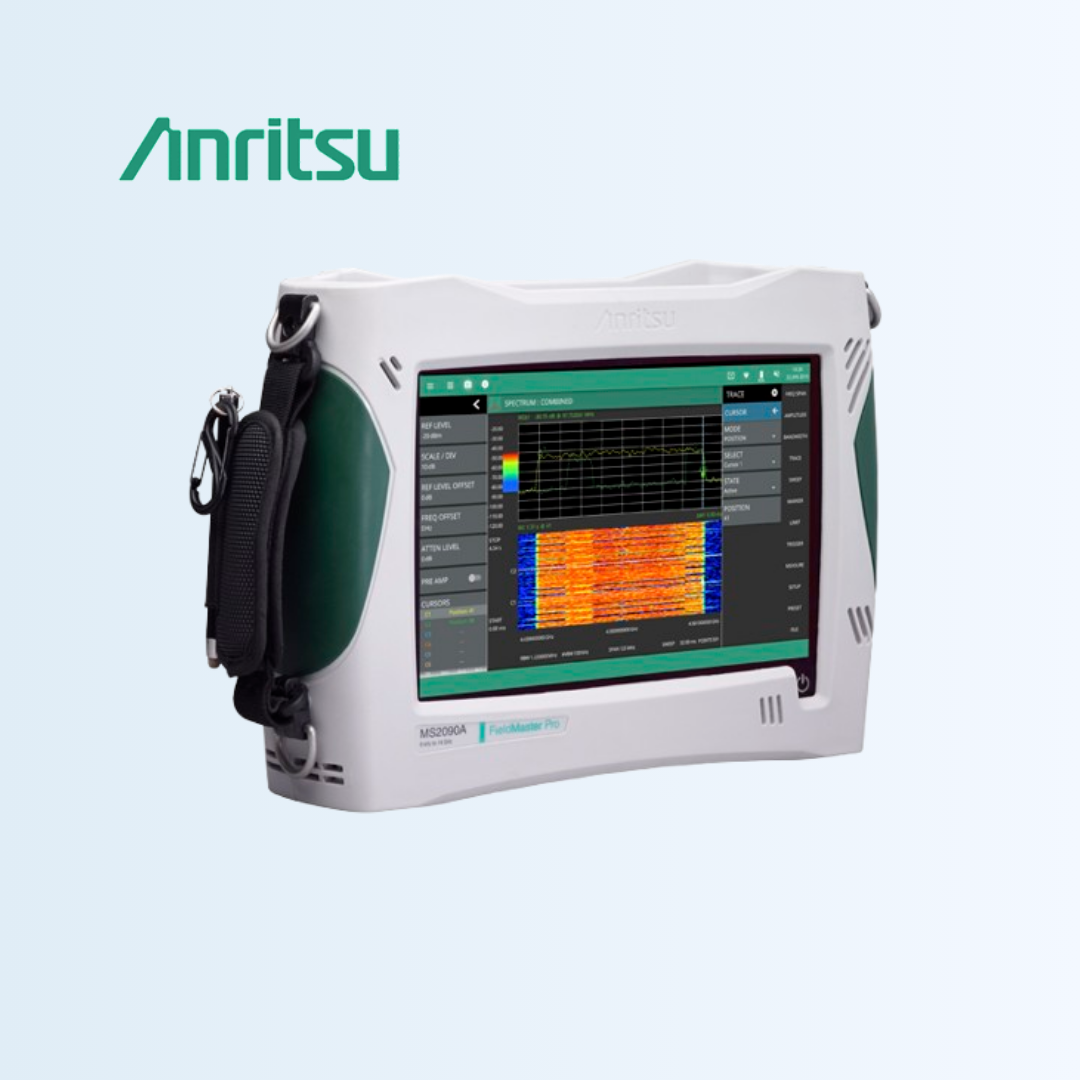

MS2090A
Field Master Pro
Handheld Spectrum Analyzer delivers the highest continuous frequency coverage up to 54 GHz and real-time spectrum analysis bandwidth up to 150 MHz to address current and emerging applications
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| DANL | -164 dBm (with preamp) |
| TOI | +20 dBm (typical) |
| Analysis bandwidth | 150 MHz |
| Amp range | DANL to +30 dBm |
| Phase noise at 1 GHz | -110 dBc/Hz @ 100 kHz offset (typical) |
| Demodulation | 5GNR, LTE FDD/TDD, RF, and modulation quality plus SSB signal analysis |
| Resolution bandwidth (RBW) | 1 Hz to 10 MHz |
| Sweep Speed | 40 GHz/second (full span) |
| RTSA bandwidth | 22, 55, 120, 150 MHz (option dependent) |
| Amplitude accuracy | < 14 GHz ± 1.3 dB (± 0.5 dB, typical) |
