- Spectrum Analyzer
- Interference Analyzer
- Smart measurements including Channel Power and OBW
- True Power Meter
- AM/FM modulation quality measurements
- Coverage Mapping
- 10 inch high resolution touch screen
- Multi language support
- Ethernet and USBTMC control interfaces
- Built-in PDF/HTML report generation

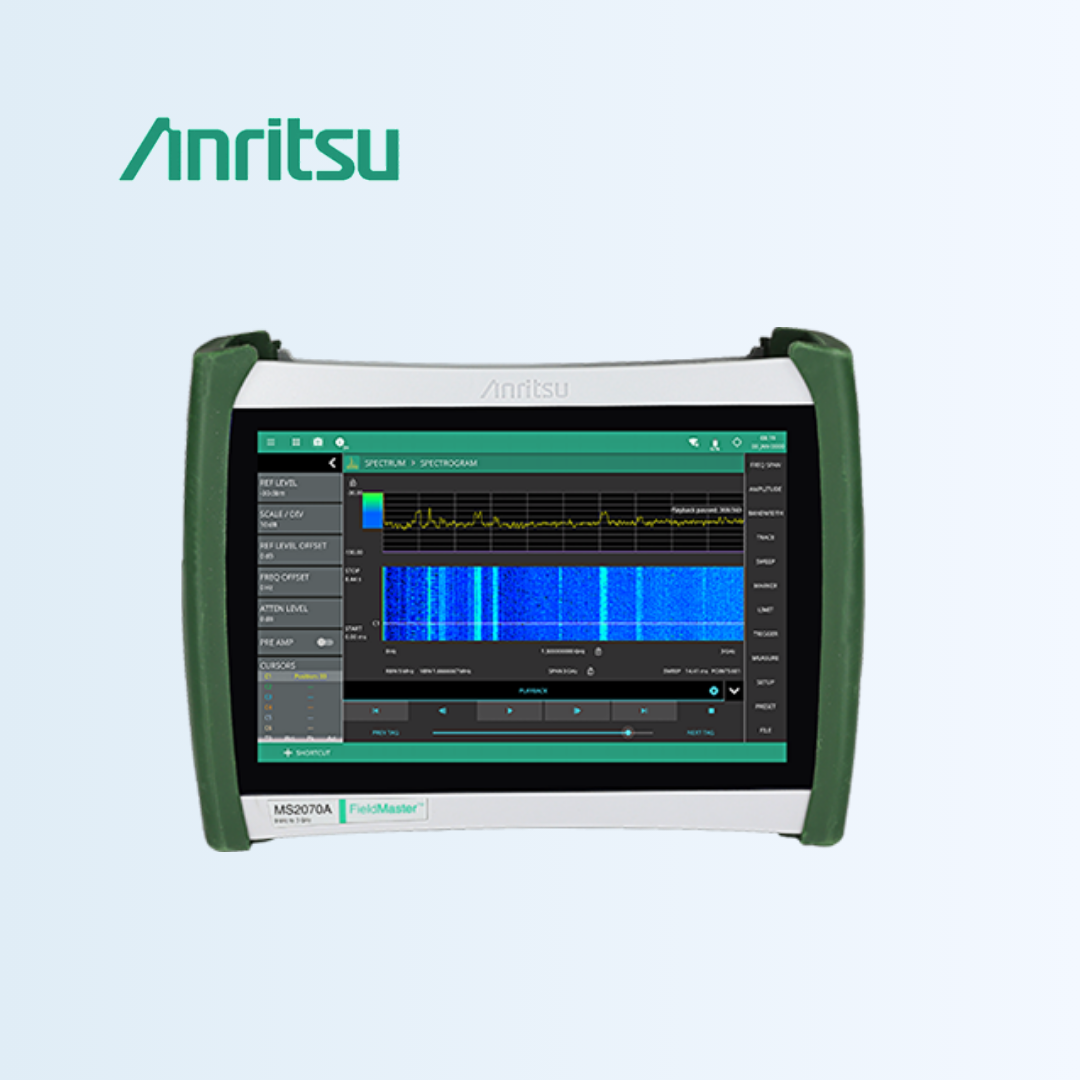

MS2070A
Field Master™
The Field Master MS2070A is the latest version of Anritsu’s handheld spectrum analyzers. Built on a field-proven durable platform, the Field Master MS2070A provides a comprehensive set of features with excellent performance up to 3 GHz. MS2070A is designed to conduct RF measurements in a variety of general-purpose field and lab environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Sweep speed | 32 GHz/s |
| Phase noise | -97 dBc/Hz typical @ 100 kHz offset |
| DANL | Pre amp off -150 type, Pre amp on -167 typ |
| Maximum input signal | +30 dBm |
| Dynamic range | 105 dB typical |
| Input damage level | +37 dBm (5 Watts) |
| Amplitude accuracy | ±1 dB |
| Resolution bandwidth in sweep mode | 1 Hz to 3 MHz |
| Resolution bandwidth in zero span | 1 Hz to 5 MHz |
| Frequency accuracy | Aging: ±1.0 x 10–6 per year |
| Accuracy | ±2.8 x 10–7 (-10 °C ± 55°C) plus aging |
