- Designed as a calibration fixture for TBBCI1 series BCI probes.
- Enables measurement of transfer impedance and insertion loss of bulk current injection probes using a VNA or Spectrum Analyzer with tracking generator.
- Useful for periodic inspection and health checks of BCI probes (e.g., after a drop or suspected damage).
- Supports calibration of conducted immunity test setups to ensure accurate stress levels during EMC testing.
- Provides a controlled 50 Ω environment for measurements when a BCI probe is inserted into the fixture.

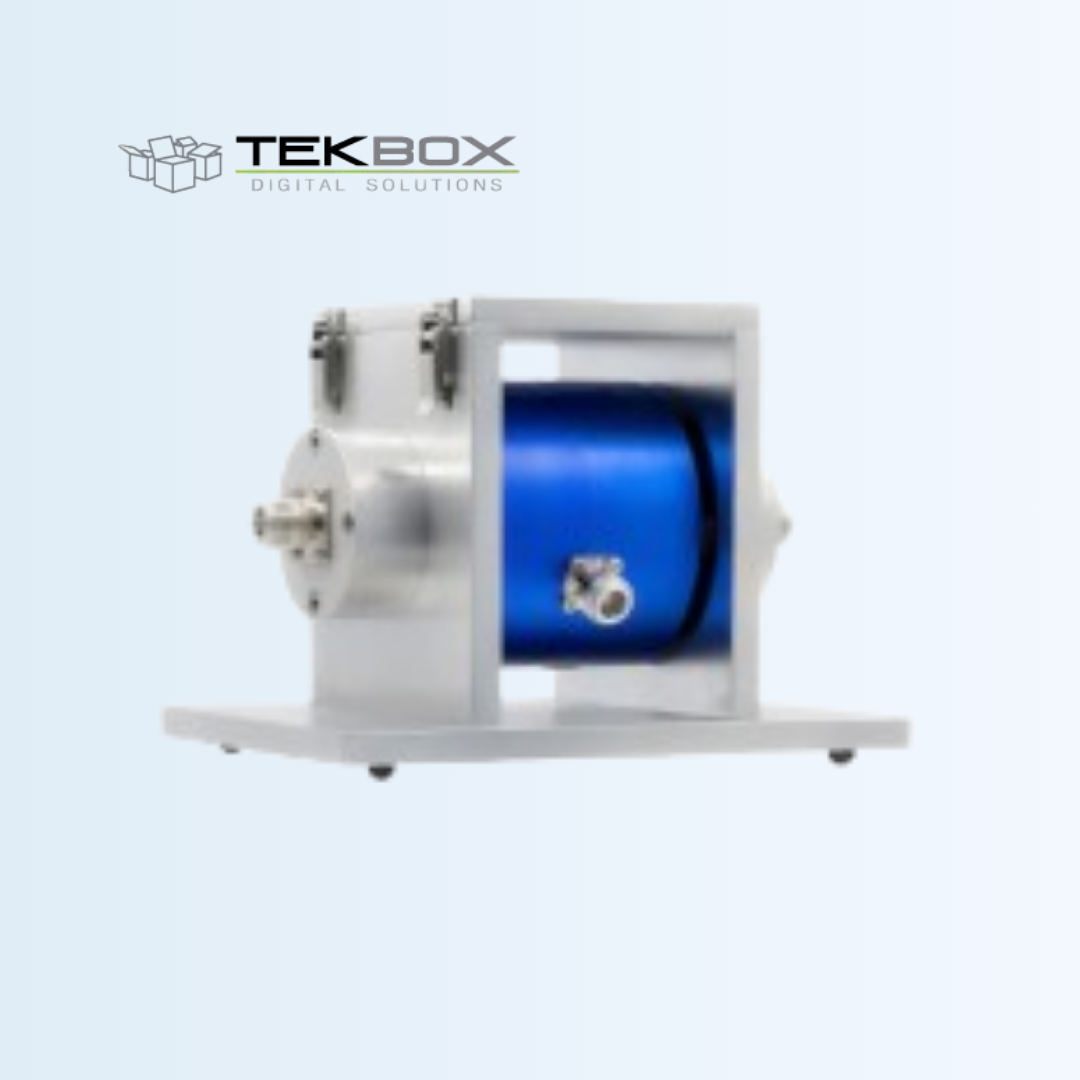

TBBCI1-CAL
Bulk Current Injection Probes
The TBBCI1-CAL is a calibration fixture specifically designed for the TBBCI1 series of Bulk Current Injection (BCI) probes. It is used in combination with a Vector Network Analyzer (VNA) or Spectrum Analyzer with a tracking generator to measure and verify the transfer impedance and insertion loss of BCI probes. The calibration fixture enables periodic inspection, health checks, and calibration of conducted immunity test setups according to relevant EMC standards.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Application / Use | Calibration fixture for TBBCI1 BCI probes |
| Approx | 50 Ω configuration with inserted probe |
| Frequency Usable Range | ~150 kHz – 400 MHz (matches range of TBBCI1 probes) |
| Max RF Input Power | ~500 W (fixture can handle high input power during calibration) |
| Size | ~200 × 150 × 140 mm (outer fixture dimensions) |
| Reference Standards | Supports calibration related to IEC/EN 61000-4-6 and ISO 11452-4 test setups |
