- Snap-on design for easy placement around cables without disconnecting wiring.
- Intended primarily for conducted immunity testing in EMC pre-compliance according to IEC/EN 61000-4-6.
- Can inject RF current into cable bundles to simulate immunity stress levels 1, 2, 3, and X (up to 30 V) in test setups.
- Also suitable for RF current monitoring applications beyond injection testing.
- Provides wide operational usability from low kHz up to hundreds of MHz (probe characterized over 10 kHz – 300 MHz).
TBBCI1-200K280
Bulk Current Injection Probes

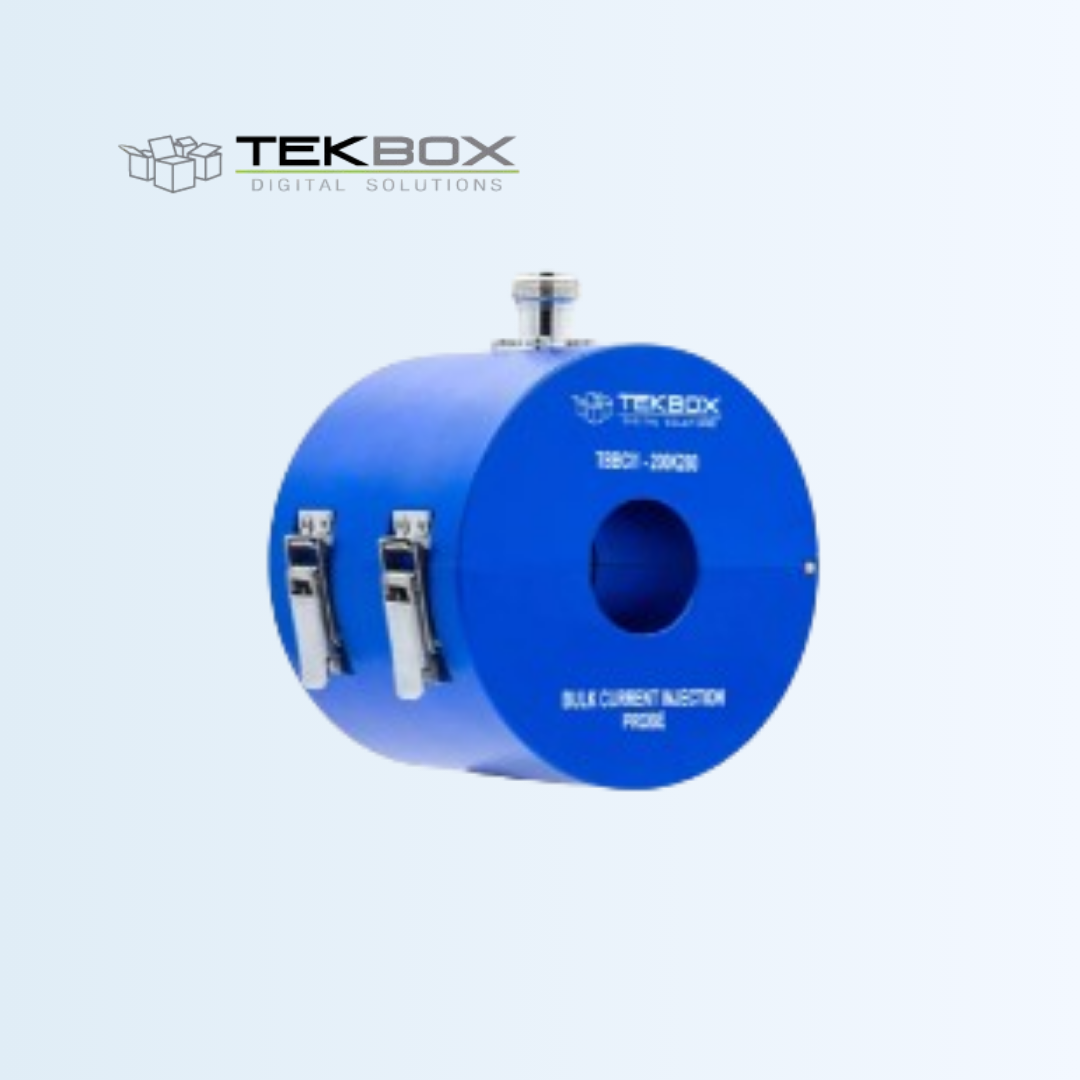

The TBBCI1-200K280 is a snap-on Bulk Current Injection (BCI) probe designed for conducted immunity testing and EMC pre-compliance applications. It expands the Tekbox range of affordable EMC test equipment and is primarily intended to inject RF current into cable bundles in immunity test setups according to the IEC/EN 61000-4-6 standard. The probe is individually characterized and usable over a wide frequency range for conducted immunity and RF current monitoring applications.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Compliance | IEC / EN 61000-4-6 insertion loss specification for BCI clamps |
| Characterized frequency range | 10 kHz – 300 MHz |
| Insertion loss | 8 dB typ.; 50 Ohm system (100 Ohm loop impedance) |
| Transfer impedance | 26 dB Ohm typ.; 50 Ohm system (100 Ohm loop impedance) |
| Power rating | capable of injecting level 1, 2, 3 and stress level X up to 30V, 150 Ohm test set-up according to IEC/EN 61000-4-6 |
| Max. core temperature | 80 °C |
| Connector type | N female |
| Aperture diameter | 27 mm |
| Outside diameter | 92 mm |
| Height | 76 mm |
| Weight | 1.2 kg |
