- Snap-on design for easy placement around cable bundles without disconnecting wiring.
- Intended for conducted immunity testing of automotive products in the automotive EMC standard ISO 11452-4.
- Usable across a wide frequency range, suitable for both injection and monitoring applications.
- Capable of injecting different severity levels into cable harnesses based on testing needs.
- Can also function as an RF current monitoring probe for EMC analysis beyond injection testing.
TBBCI1-800K420
bulk current injection probe

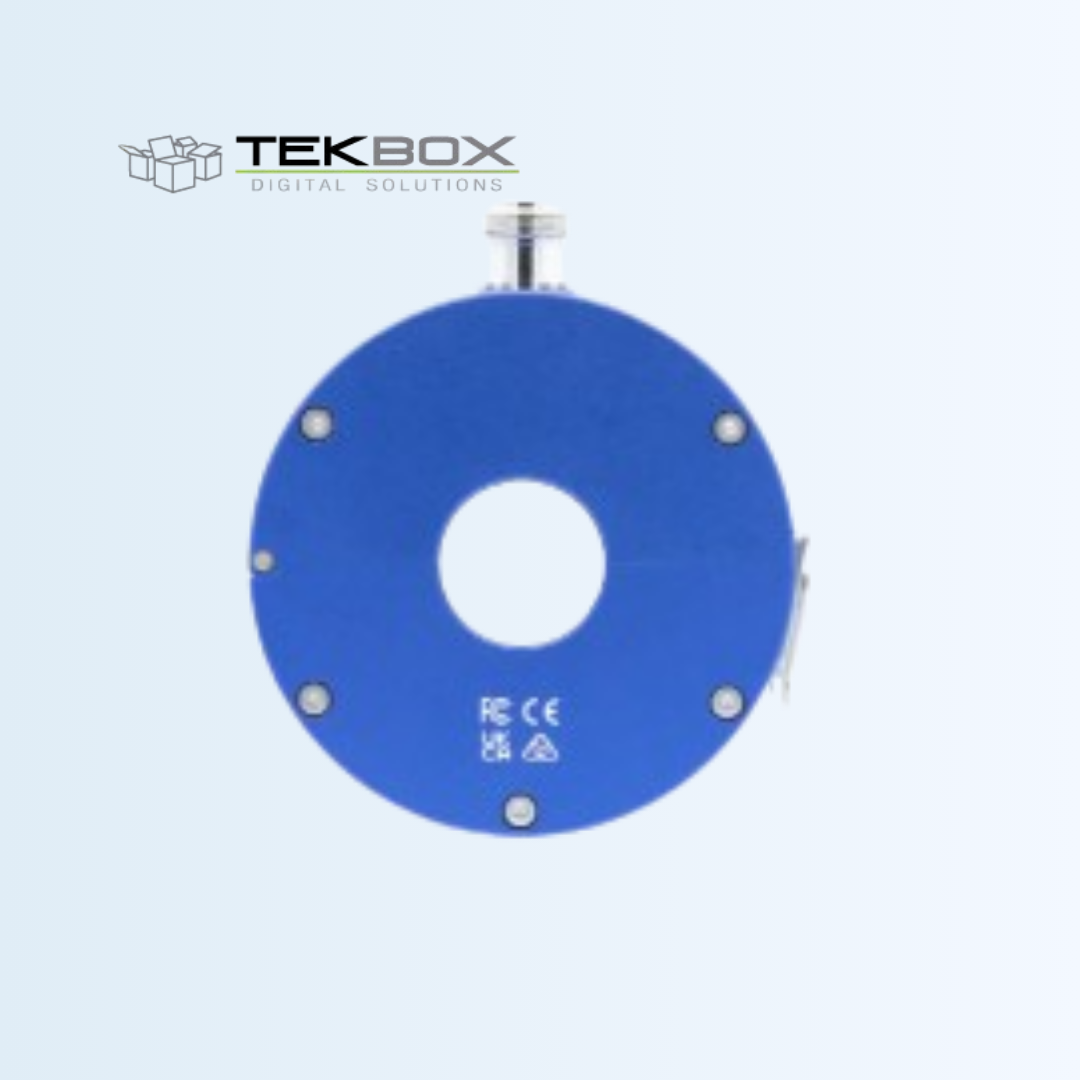

The TBBCI1-800K420 is a snap-on Bulk Current Injection (BCI) probe that expands the Tekbox range of affordable EMC pre-compliance test equipment. It is designed primarily for conducted immunity testing of automotive products according to the ISO 11452-4 standard, covering a wide usable frequency range. The probe can also be used for RF current monitoring applications.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Compliance | ISO 11452-4; IEC / EN 61000-4-6 insertion loss specification for BCI clamps above 250 kHz |
| Characterized frequency range | 10 kHz to 500 MHz |
| Insertion loss | 5 dB typ.; 50 Ohm system (100 Ohm loop impedance) |
| Transfer impedance | 29 dB Ohm typ.; 50 Ohm system (100 Ohm loop impedance) |
| Power rating | capable of injecting severity levels I, II, III, IV according to ISO 11452 and customer specified level V up to 350 mA |
| Max. core temperature | 80 °C |
| Connector type | N female |
| Aperture diameter | 27 mm |
| Outside diameter | 92 mm |
| Height | 76 mm |
| Weight | 1.2 kg |
