- Designed for EMC conducted noise measurement from 9 kHz to 30 MHz.
- Standard 50 Ω ║ (50 µH + 5 Ω) impedance network for reliable results.
- Separate RF outputs for each phase and neutral for detailed analysis.
- Artificial hand connection and switchable protective earth (PE) option.
- Includes 250 µH pre-filter and air-core inductors for stable, repeatable measurements.
- Compatible with Tekbox LISN Mate for common-mode and differential-mode separation.

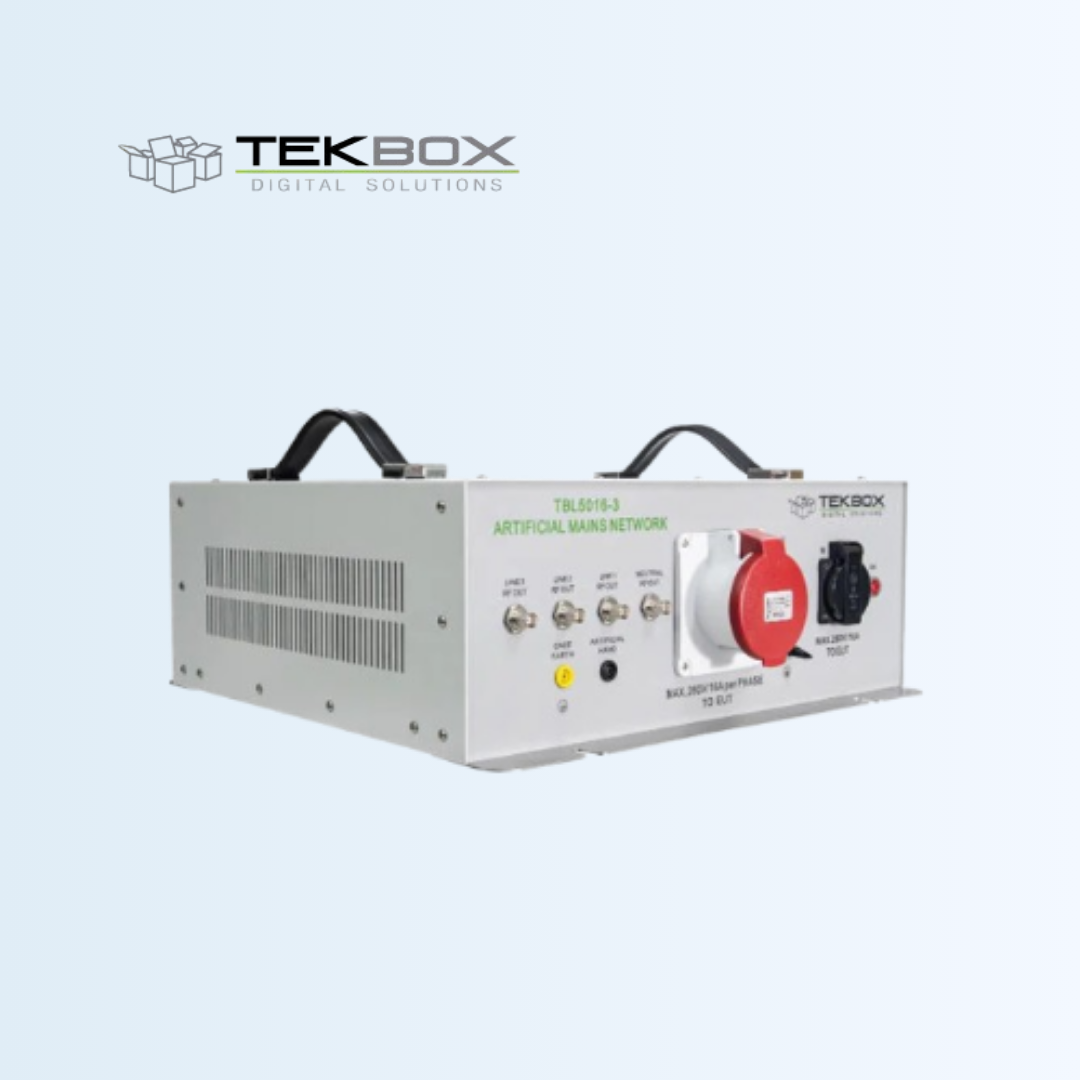

TBL5016-3
Line Impedance Stabilisation Network LISN – CISPR 16
The Tekbox TBL5016-3 is a high-performance Line Impedance Stabilisation Network (LISN) designed for conducted emissions testing of both three-phase and single-phase AC powered equipment. It provides a defined and stable impedance between the power supply and the equipment under test (EUT) so that conducted noise can be accurately measured with a spectrum analyzer or EMI receiver in accordance with CISPR 16-1-2 standards.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | 9 kHz to 30 MHz |
| Impedance | 50 Ω ║ (50 µH + 5 Ω) |
| Artificial hand | 220 pF + 511 Ω |
| Switchable PE | 50 Ω ║ 50 µH |
| Line voltage | max. 450V/260V / 50 – 60 Hz, CAT ‖ |
| Max. current per line and neutral | 16A @ 23°C each |
| 3-phase DUT socket | CEE/IEC60309, 3L+N+PE, 16A, female |
| Single-phase DUT socket | country specific |
| Power connector | CEE/IEC60309, 3L+N+PE, 16A, male |
| Measurement connectors | 50 Ω BNC |
| Operating Temperature Range | +5°C … + 40°C; 5% to 80% RH |
| Safety | Safety Class I, IEC 1010-01 |
