- Designed for conducted noise / EMC testing on AC mains lines (phase and neutral).
- Independent measurement outputs for phase and neutral, ideal for common-mode/differential-mode separation with LISN Mate.
- PE switch to simulate extension cable effects.
- Artificial hand connection for realistic test setups.
- Includes country-specific EUT connectors for easy integration.
- Standard 50 Ω BNC output connection to measurement equipment.

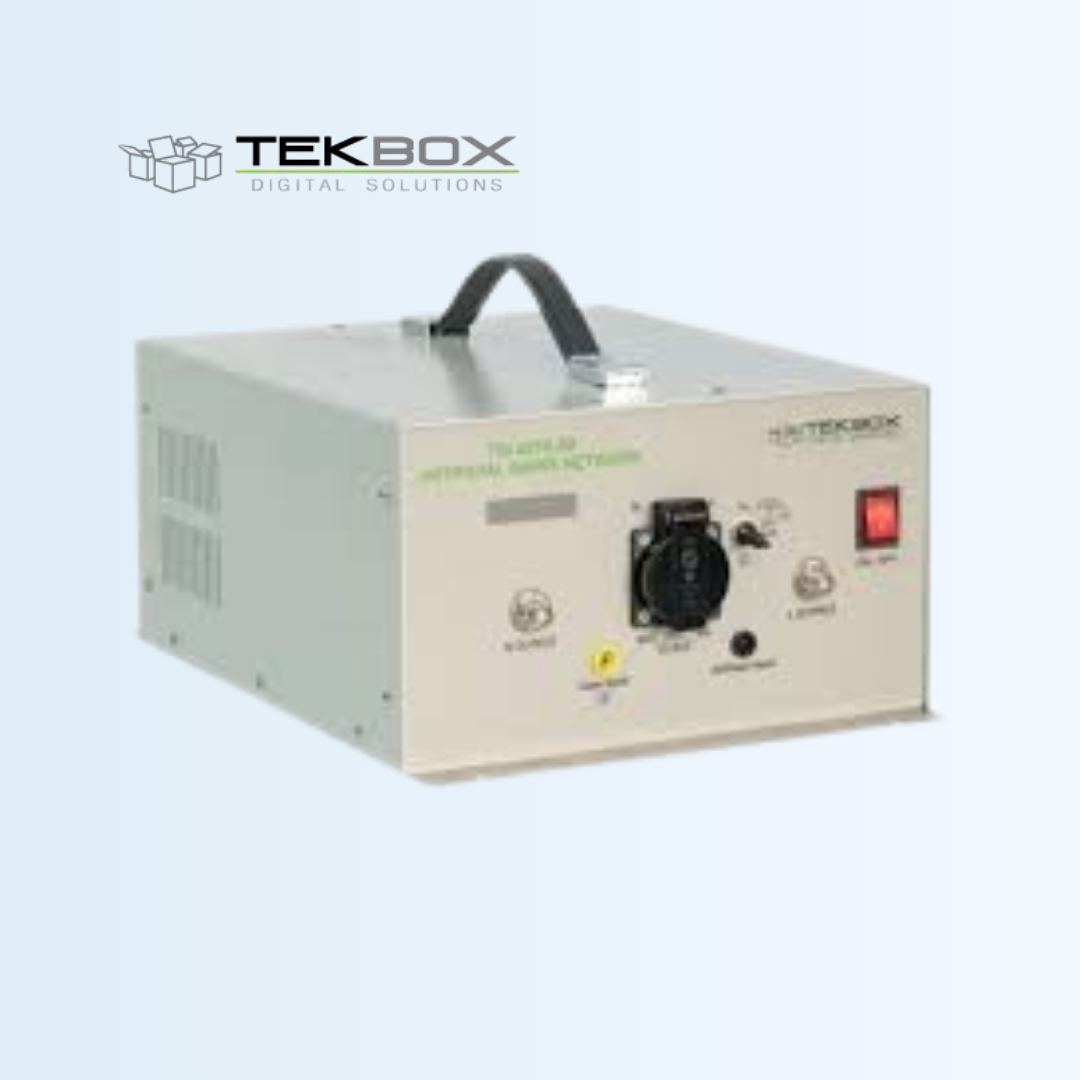

TBL5016-2B
Line Impedance Stabilisation Network
The Tekbox TBL5016-2B is a high-quality Line Impedance Stabilisation Network (LISN) designed for conducted emissions testing on single-phase AC powered equipment. It provides a defined and stable impedance between the power source and the equipment under test (EUT) to enable accurate conducted noise measurement with spectrum analysers or EMI receivers according to the CISPR 16-1-2 standard.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | 9 kHz to 30 MHz |
| Impedance | 50 Ω ║ (50 µH + 5 Ω) |
| Artificial hand | 220 pF + 511 Ω |
| Switchable PE | 50 Ω ║ 50 µH |
| Line voltage | max. 250V / 50/60 Hz or DC |
| Max. current | 16 A @ 23°C |
| EUT socket | country specific |
| Measurement connector | 50 Ω BNC |

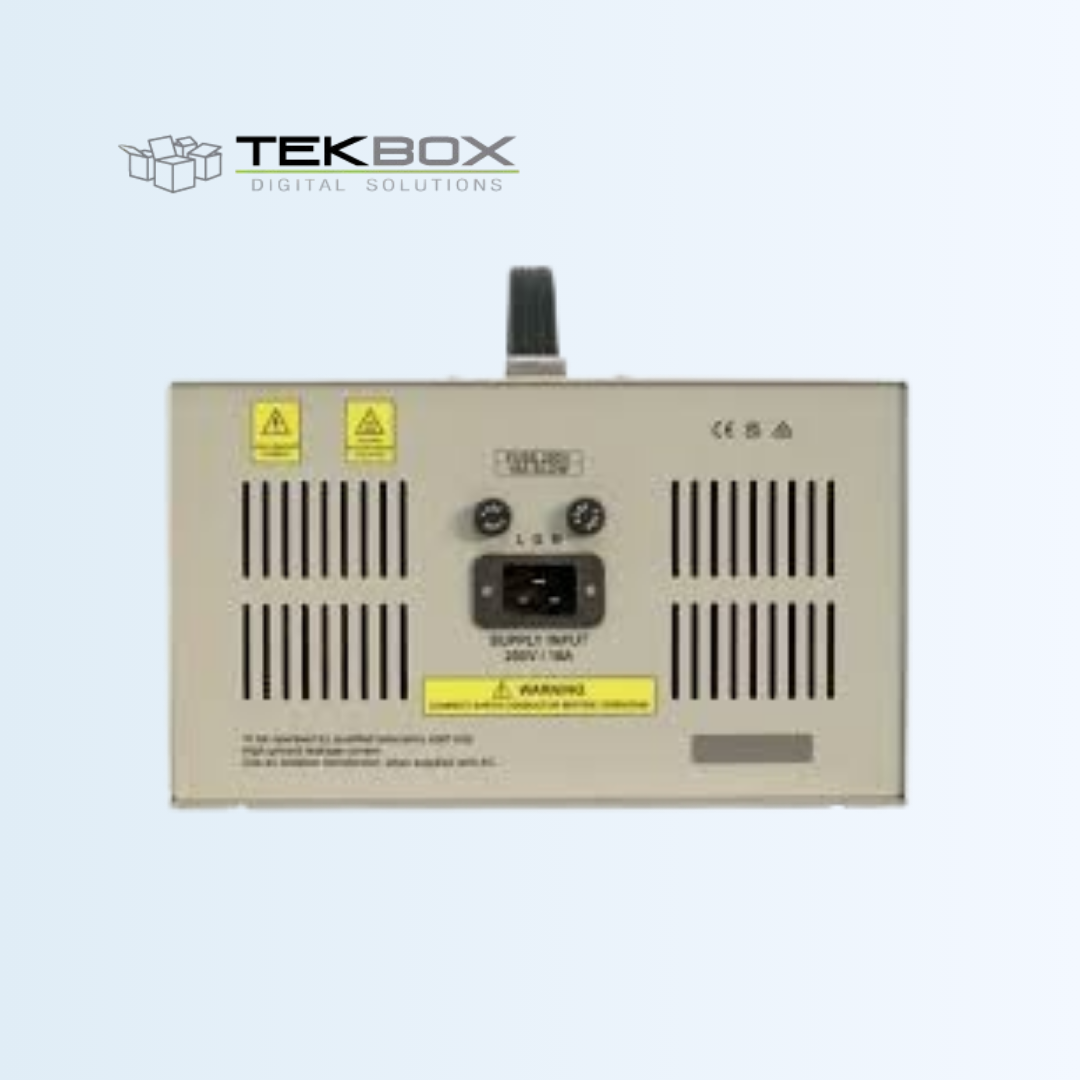

| Power connector | IEC 60320 C19 |
| Operating Temperature Range | +5°C … + 40°C; 5% to 80% RH |
