- Designed for EMC conducted noise testing from 9 kHz to 30 MHz.
- Standard impedance for reliable measurements.

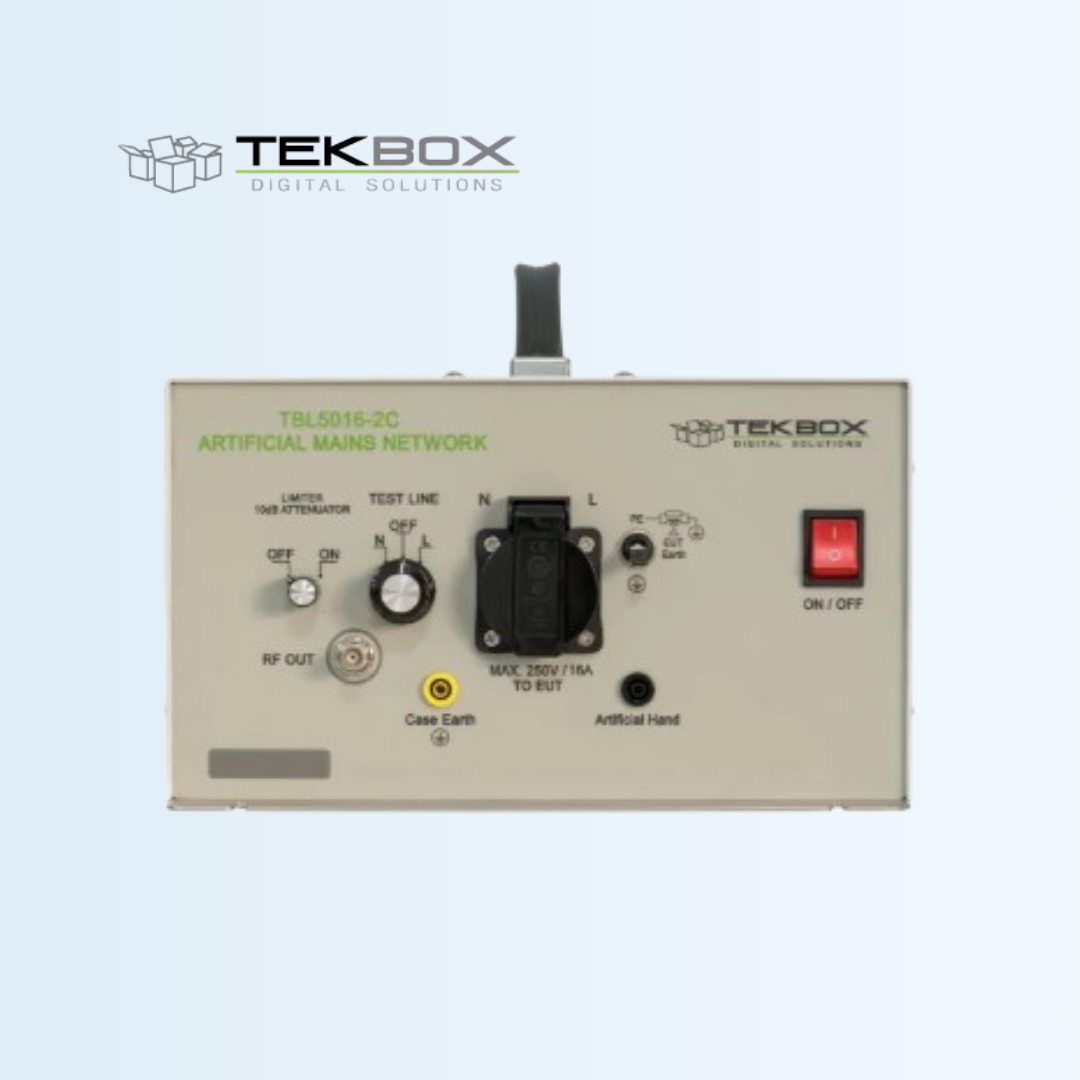

- Line selector switch, switchable limiter/attenuator/high-pass filter, and PE switch to simulate real wiring conditions.
- Artificial hand connection for realistic test setups.
- Available with country-specific EUT power connectors for easy integration.
- Standard 50 Ω BNC output for connection to measurement equipment.

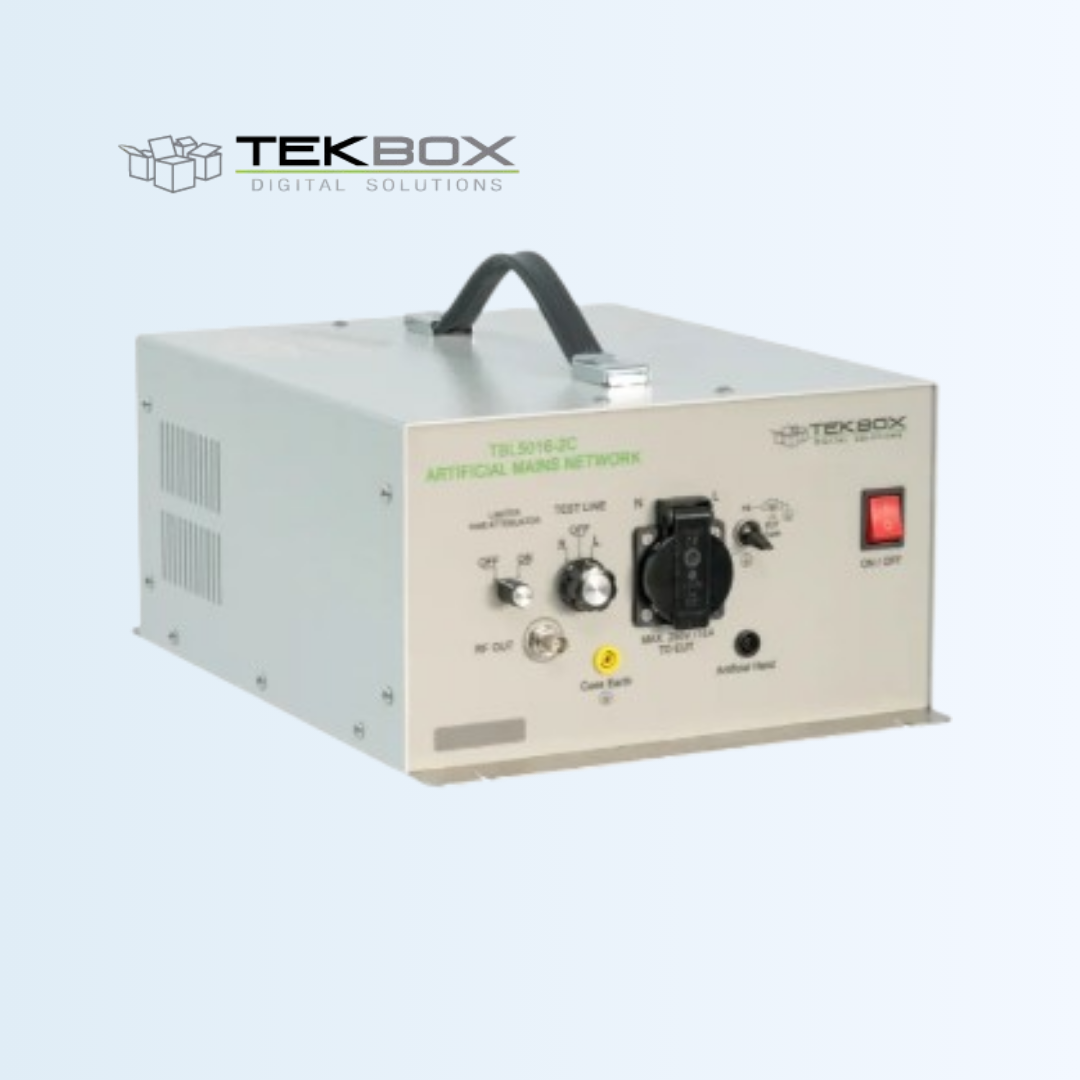

TBL5016-2C
Line Impedance Stabilisation Network
The Tekbox TBL5016-2C is a high-quality Line Impedance Stabilisation Network (LISN) engineered for conducted emission testing of single-phase AC-powered equipment. It establishes a stable reference impedance between the power source and the equipment under test (EUT), allowing accurate measurement of conducted noise using a spectrum analyzer or EMI receiver in accordance with CISPR 16-1-2 standards.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | 9 kHz to 30 MHz |
| Impedance | 50 Ω ║ (50 µH + 5 Ω) |
| Artificial hand | 220 pF + 511 Ω |
| Switchable PE | 50 Ω ║ 50 µH |
| Line voltage | max. 450V/260V / 50 – 60 Hz, CAT ‖ |
| Max. current per line and neutral | 16A @ 23°C each |
| 3-phase DUT socket | CEE/IEC60309, 3L+N+PE, 16A, female |
| Single-phase DUT socket | country specific |

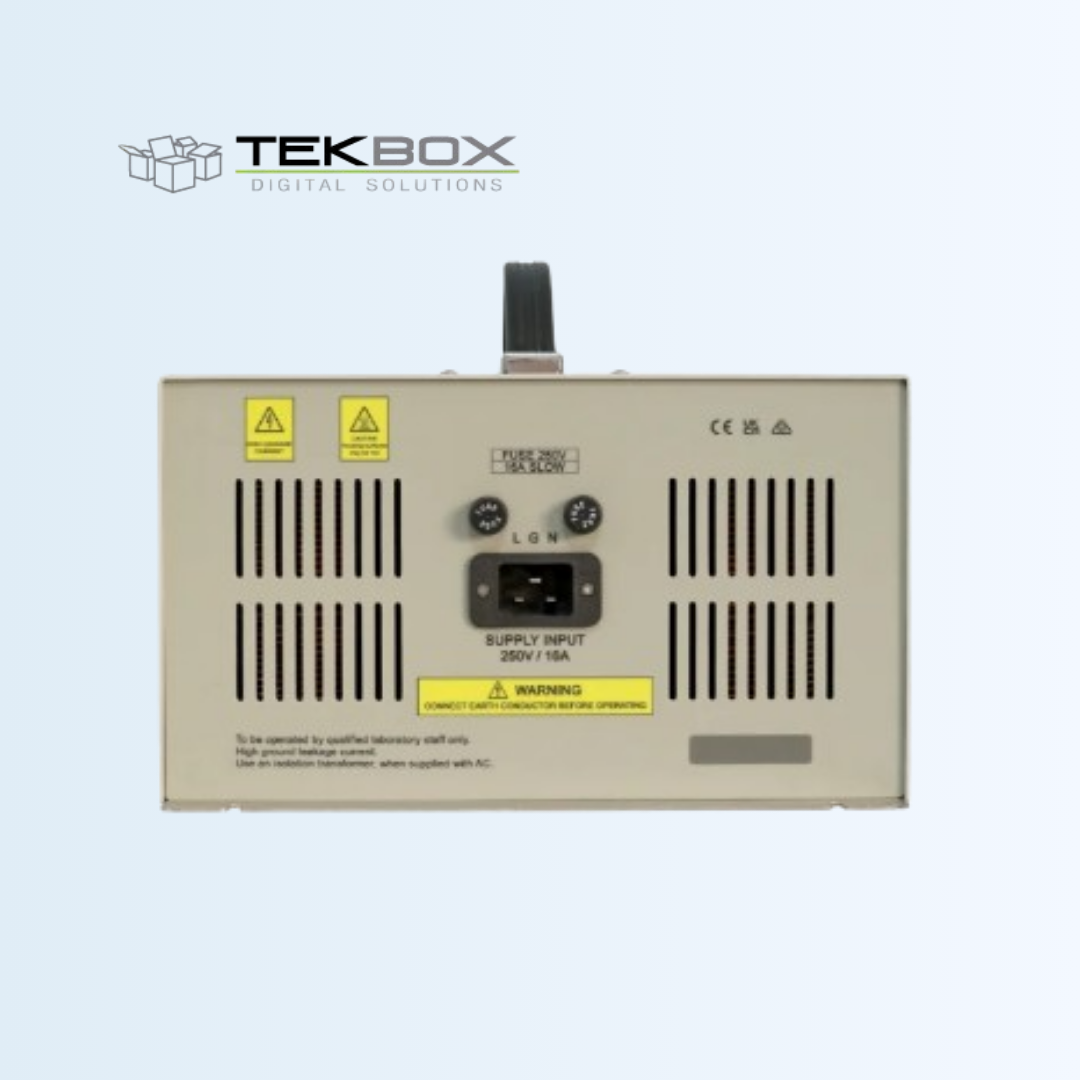

| Power connector | CEE/IEC60309, 3L+N+PE, 16A, male |
| Measurement connectors | 50 Ω BNC |
| Operating Temperature Range | +5°C … + 40°C; 5% to 80% RH |
| Safety | Safety Class I, IEC 1010-01 |
