- Designed for EMC conducted noise testing in the 9 kHz – 30 MHz frequency range.
- Standard 50 Ω ║ (50 µH + 5 Ω) impedance network for stable and repeatable measurements.
- Separate RF outputs for each phase and neutral conductor.
- Can be coupled with Tekbox LISN Mate to separate common-mode and differential-mode emissions.
- Includes external 9 kHz coaxial high-pass filter for protecting measurement inputs.
- Equipped with 63 A CEE sockets for three-phase testing.
- Contains artificial hand connection and switchable protective earth (PE) simulation.
TBL5063-3
Line Impedance Stabilisation Network LISN
The Tekbox TBL5063-3 is a professional-grade Line Impedance Stabilisation Network (LISN) designed for conducted emission measurements on three-phase AC-powered equipment. It provides a defined and stable impedance between the power source and the equipment under test (EUT) so that noise can be measured accurately using a spectrum analyzer or EMI receiver according to the CISPR 16-1-2 standard.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | 9 kHz to 30 MHz |
| Impedance | 50 Ω ║ (50 µH + 5 Ω) |
| Artificial hand | 220 pF + 511 Ω |
| Switchable PE | 50 Ω ║ 50 µH |
| Line voltage | max 690V/400V / 50 – 60 Hz |
| Max. current per line and neutral | 63A @ 23°C each |
| 3-phase EUT socket | CEE / IEC60309, 3L+N+PE, 63A, female |

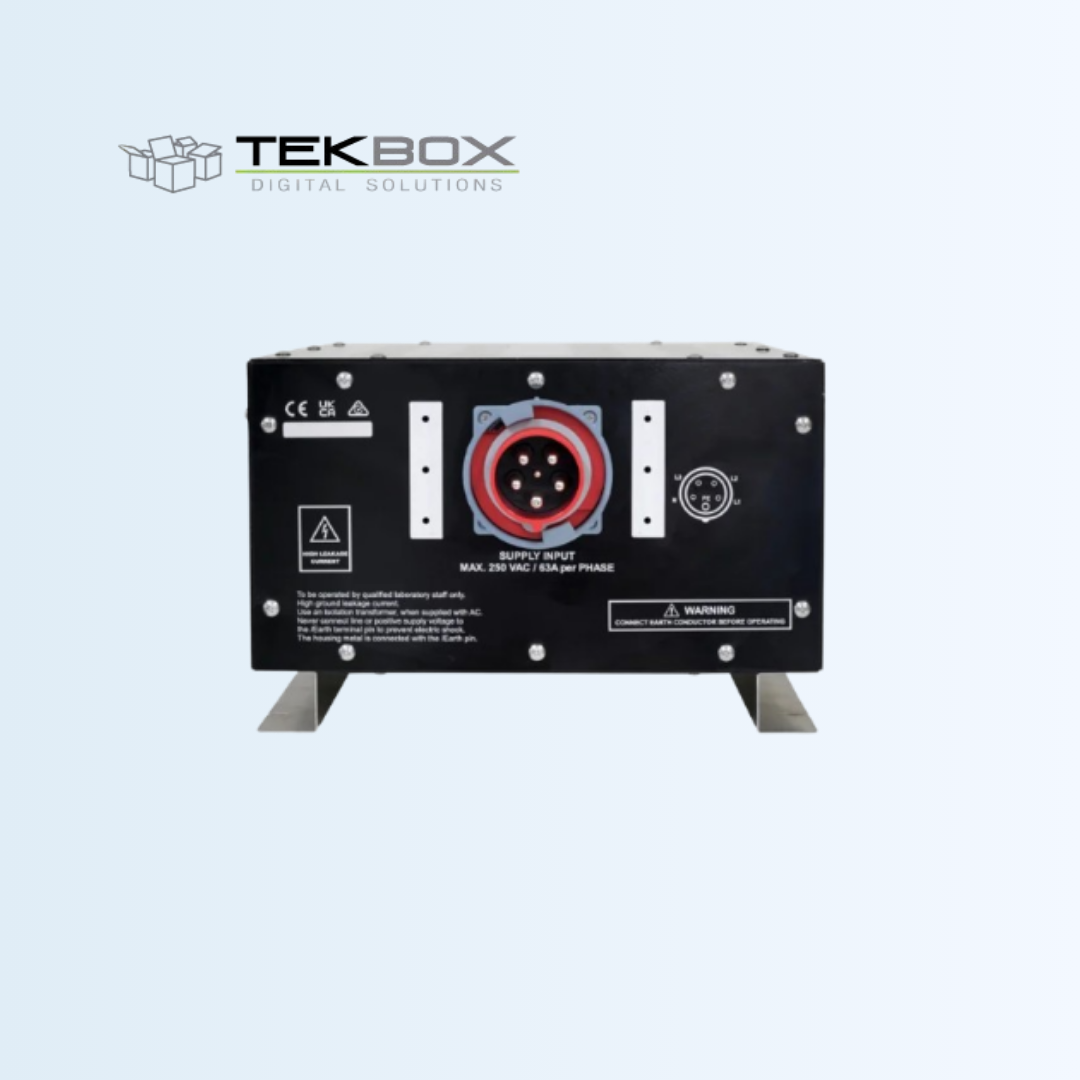

| Power connector | CEE / IEC60309, 3L+N+PE, 63A, male |
| Measurement connectors | 50 Ω BNC |
| Operating Temperature Range | +5 °C … + 40 °C; 5% to 80% RH |
