- Designed for conducted DC emissions measurements from 9 kHz to 30 MHz frequency range.
- Supports up to 1000 V DC and 32 A (max).
- Common-mode and differential-mode selectable via front-panel switch.
- Built-in air-core inductors for stable impedance characteristics.
- Robust enclosure with ground connection flanges.
- 50 Ω BNC output for connection to EMC test instruments.
TBLDC32-2
DC-Line Impedance Stabilization Network

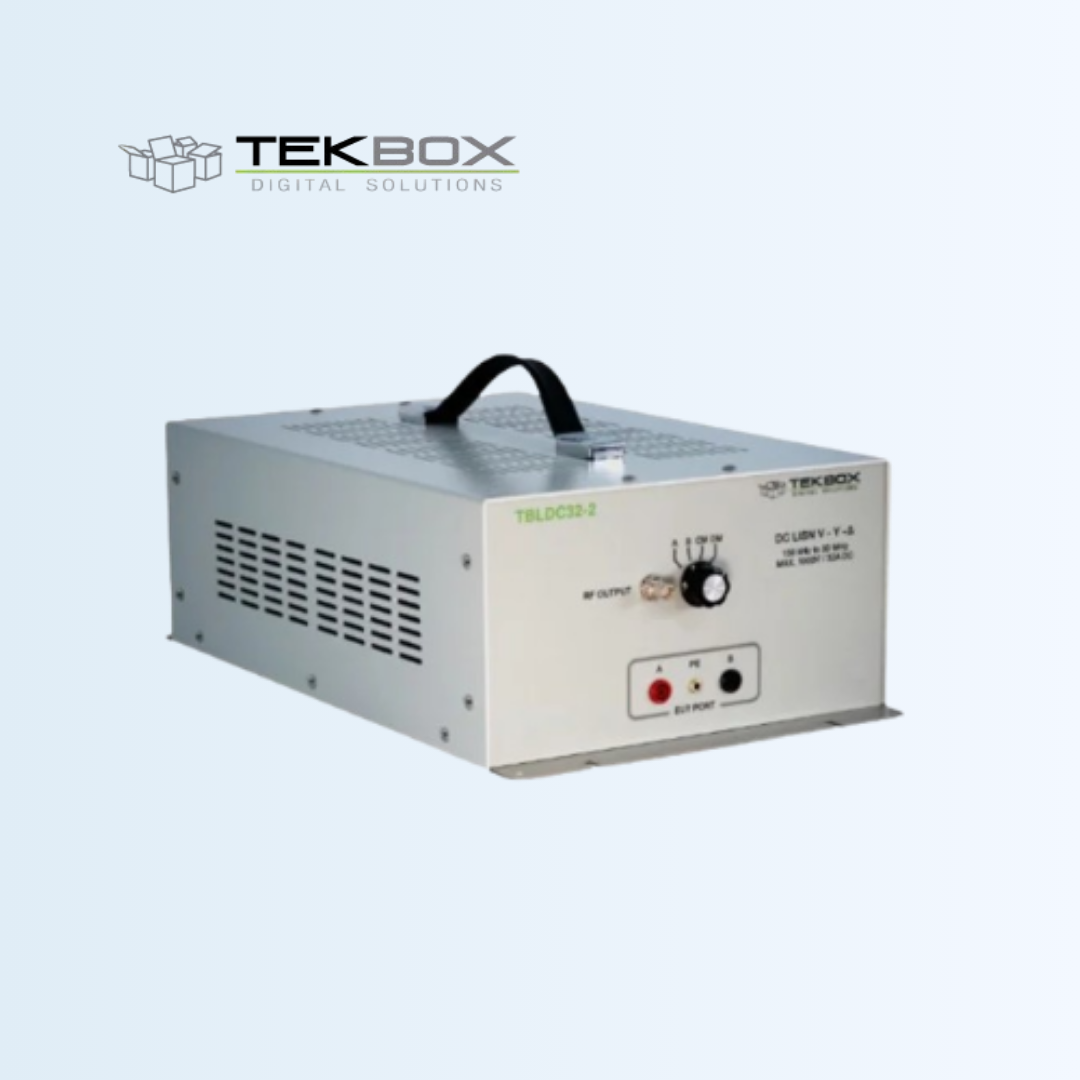

The Tekbox TBLDC32-2 is a specialised DC Line Impedance Stabilisation Network (LISN) used for conducted emissions testing on DC supply lines. It provides a defined and stable impedance between the DC power source and the equipment under test (EUT) to enable accurate noise measurements with a spectrum analyzer or EMI receiver in accordance with CISPR 16-1-2 and CISPR 11 standards. The front-panel rotary switch allows selection between common-mode and differential-mode measurements, making it effective for advanced EMC testing.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency range | 9 kHz to 30 MHz |
| Max. continuous current | 25A |
| Max. current for 15 minutes | 32A Max. |
| DC – voltage | 1000 V |
| Mode A, mode B impedance | 150 ± 30 Ω |
| Common mode impedance | 150 ± 30 Ω |
| Differential mode impedance | 150 ± 30 Ω |
| Phase at EUT-port | 0 ± 40° |
| EUT-port to AE-port isolation, CM | > 20 dB |
| EUT-port to AE-port isolation, DM | > 40 dB |
| Longitudinal conversion loss | > 26 dB |
| Voltage division factor | 20 ± 3 dB |
| DC-resistance | 80 mΩ per path typ. |

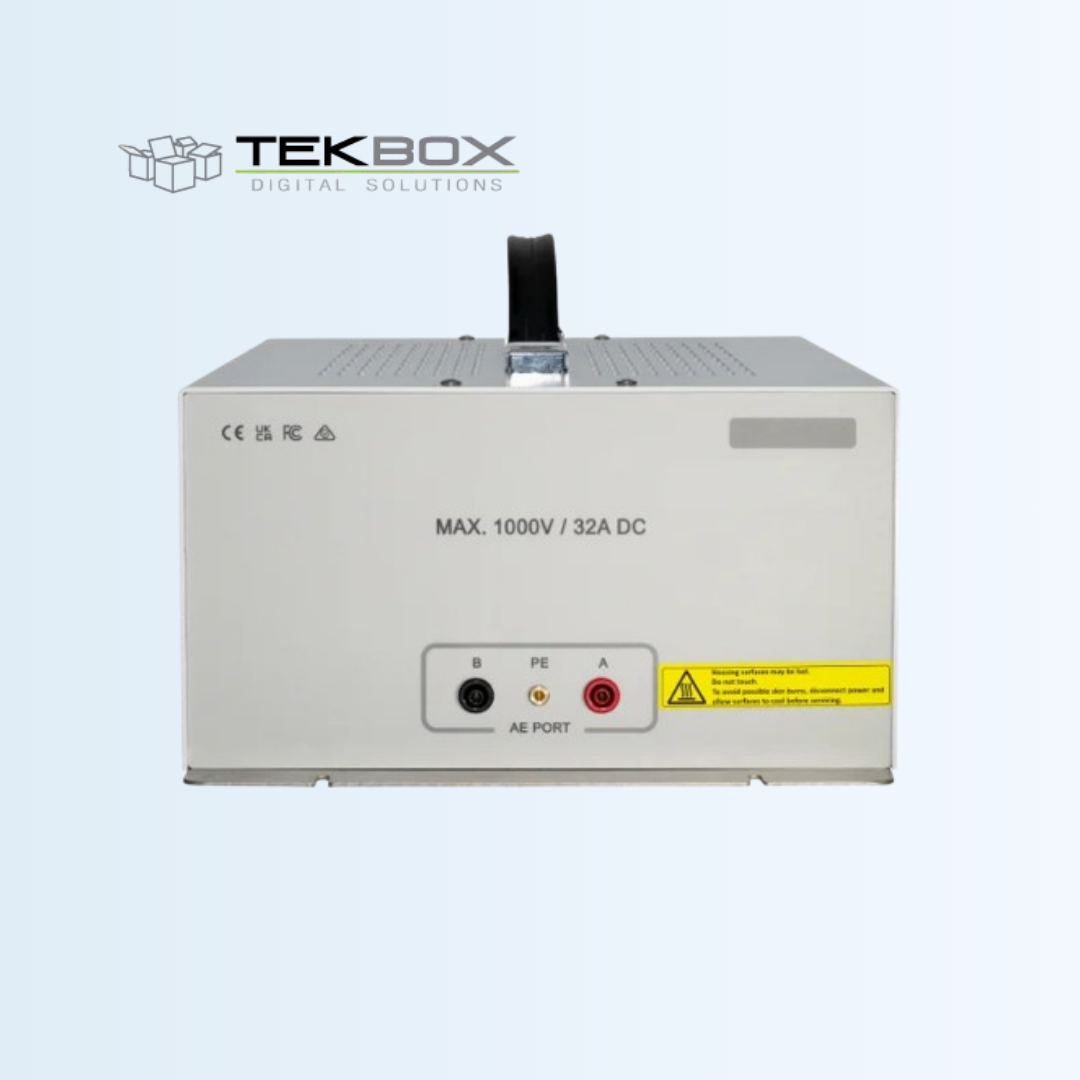

| AE-port, EUT-port terminals | 4mm, safety |
| Measurement connector | 50 Ω BNC |
| Dimensions, W x H x L | 282 x 150 x 480 mm |
| Weight | ca. 9 kg |
| Operating Temperature Range | +5 °C … + 40 °, 5% to 80% RH, no condensation |
