TBBCI1-800K420

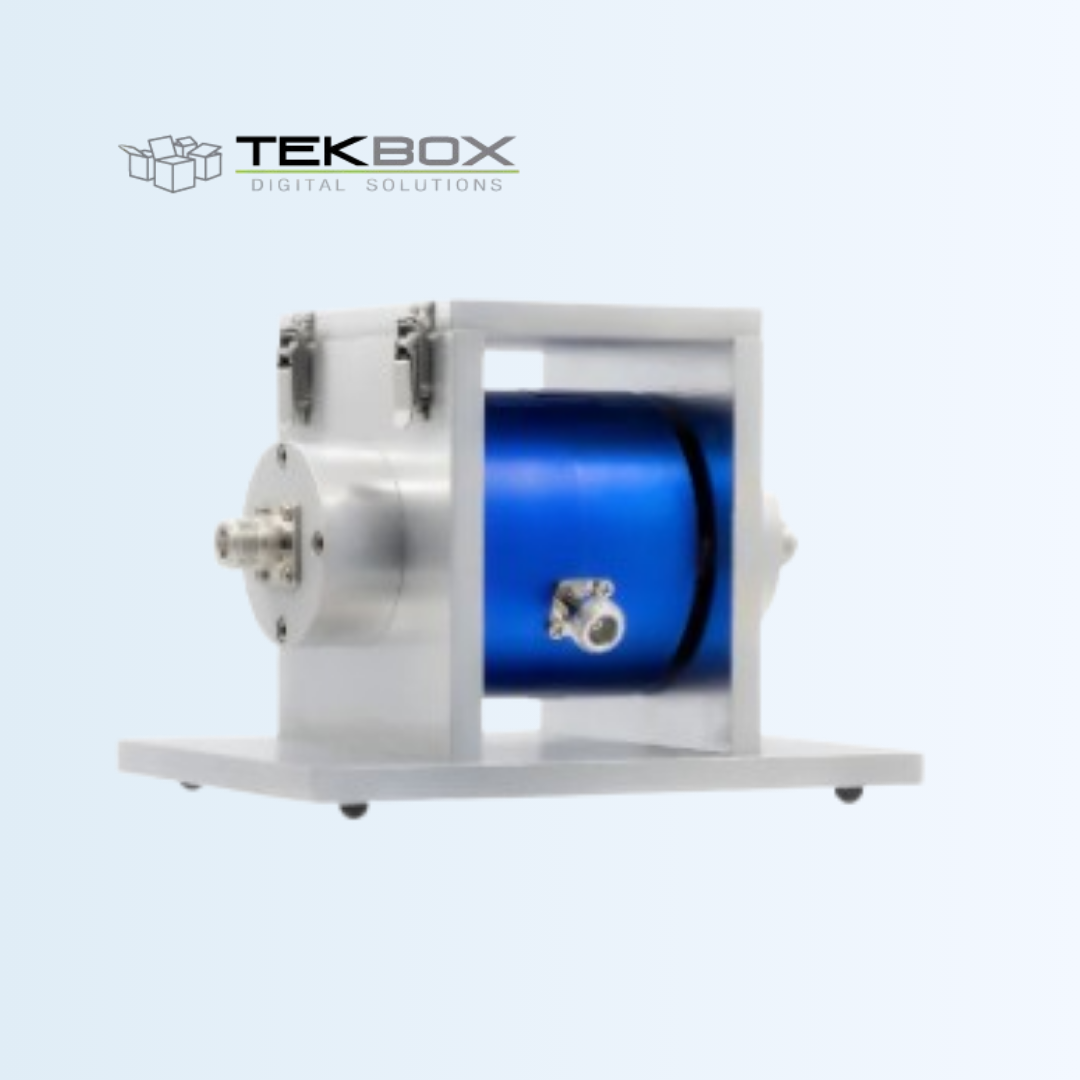

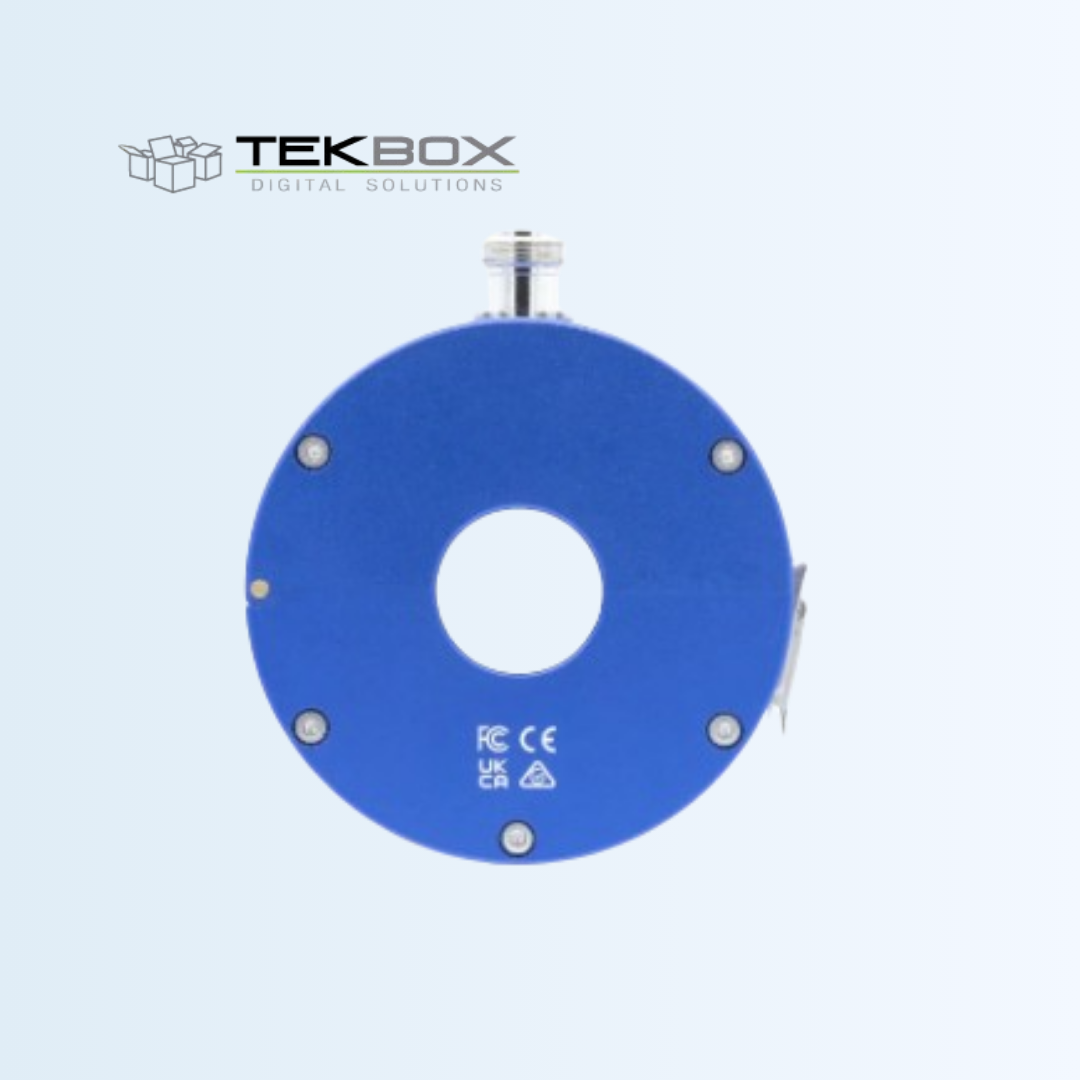

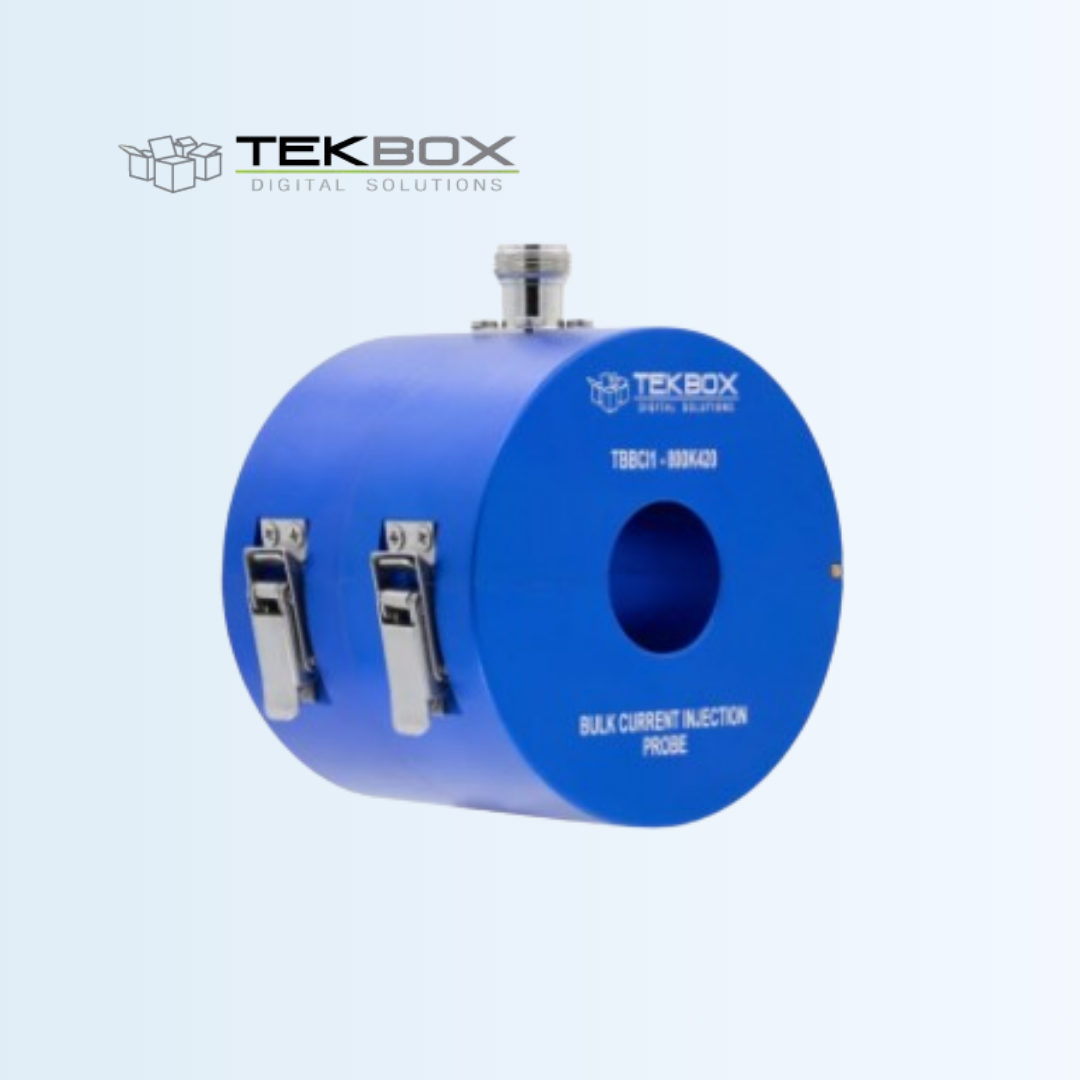

Snap-on Bulk Current Injection Probe
The TBBCl1-800K420 is a snap-on Bulk Current Injection (BCI) probe designed for conducted immunity testing using BCI methods. This model enables non-intrusive RF current injection onto cable harnesses without disconnecting them, making it ideal for EMC immunity pre-compliance, troubleshooting, and diagnostic applications. It covers a broad high-frequency range and provides consistent current injection performance for use in both laboratory and field environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Compliance | ISO 11452-4; IEC / EN 61000-4-6 insertion loss specification for BCI clamps above 250 kHz |
| Characterized frequency range | 10 kHz to 500 MHz |
| Insertion loss | 5 dB typ.; 50 Ohm system (100 Ohm loop impedance) |
| Transfer impedance | 29 dB Ohm typ.; 50 Ohm system (100 Ohm loop impedance) |
| Power rating | capable of injecting severity levels I, II, III, IV according to ISO 11452 and customer specified level V up to 350 mA |
| Max. core temperature | 80 °C |
| Connector type | N female |
| Aperture diameter | 27 mm |
| Outside diameter | 92 mm |
| Height | 76 mm |
| Weight | 1.2 kg |
