- Snap-on bulk current injection (BCI) probe.
- Non-intrusive RF current injection onto cables.
- Designed for conducted immunity and EMC testing.
- Wide frequency coverage for versatile testing.
- Stable and repeatable injection performance.
- Rugged and compact design for lab and field use.
- Easy integration with EMC test equipment.

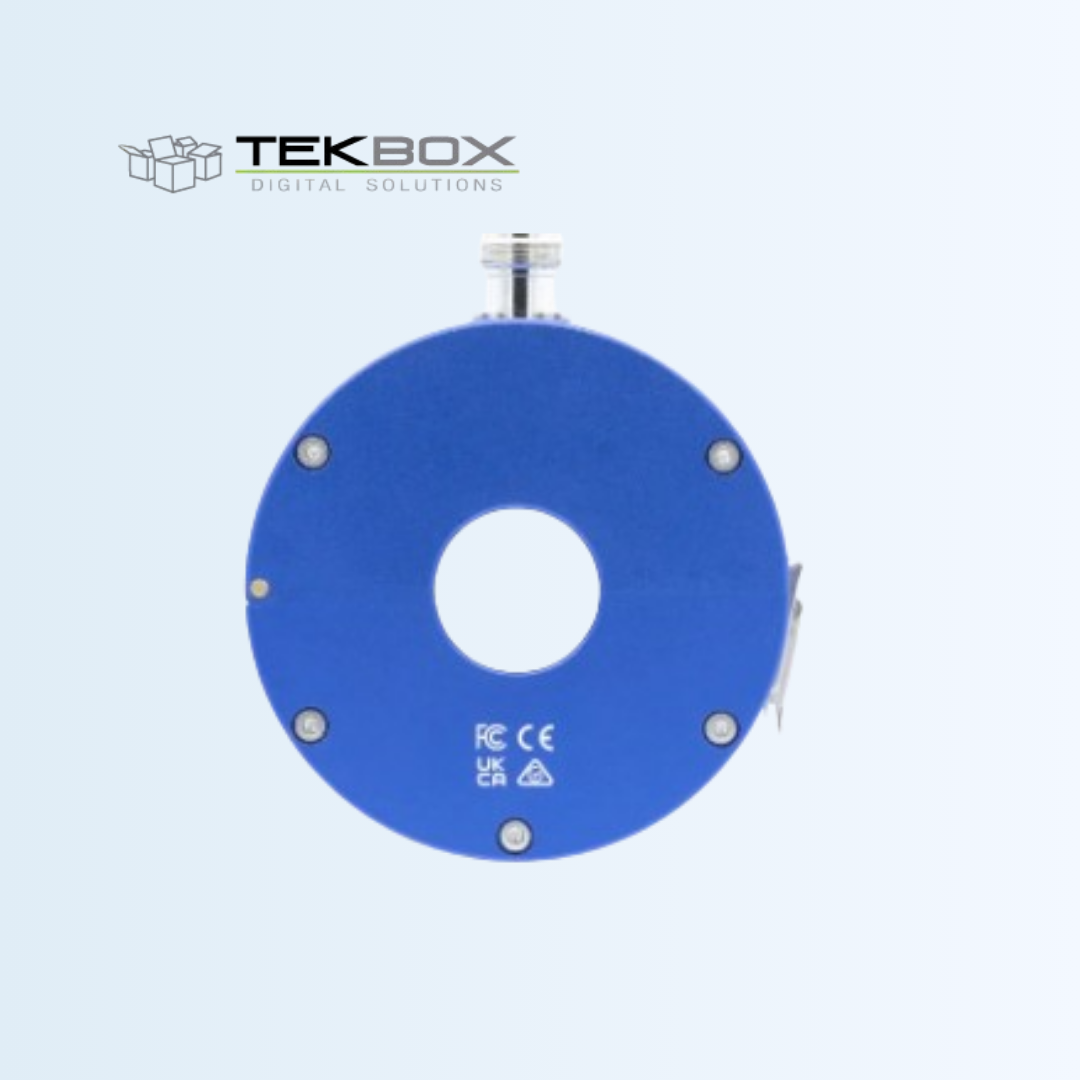

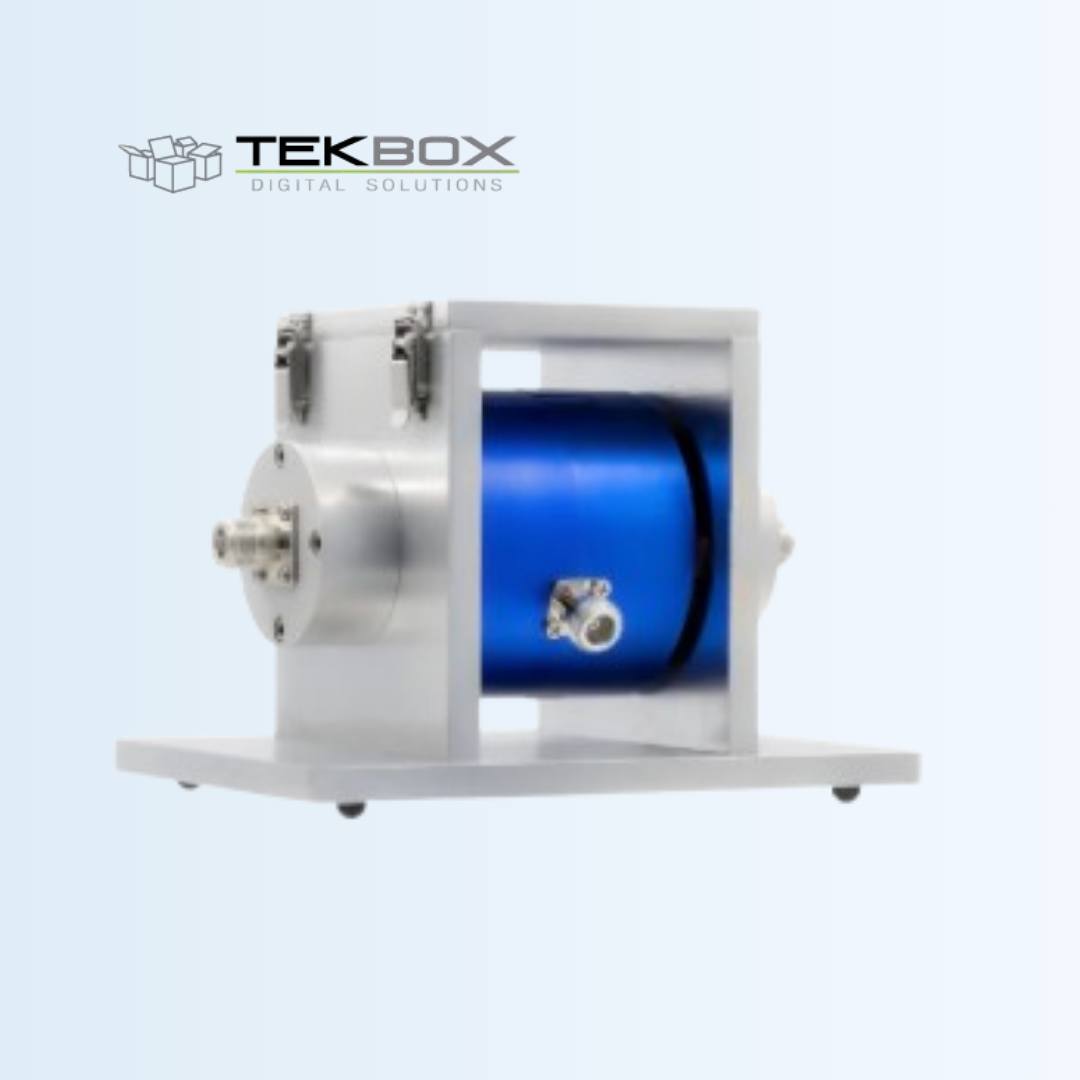

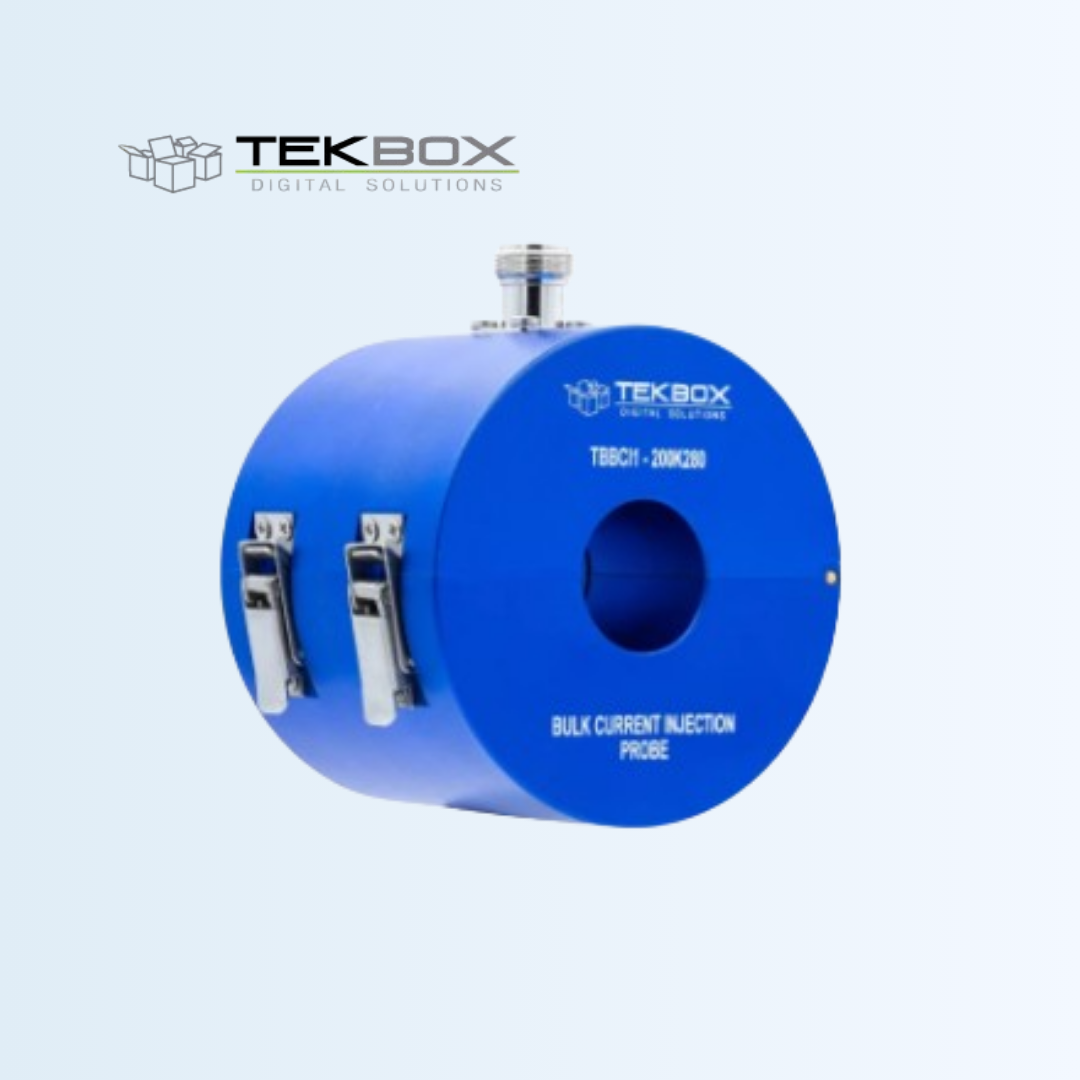

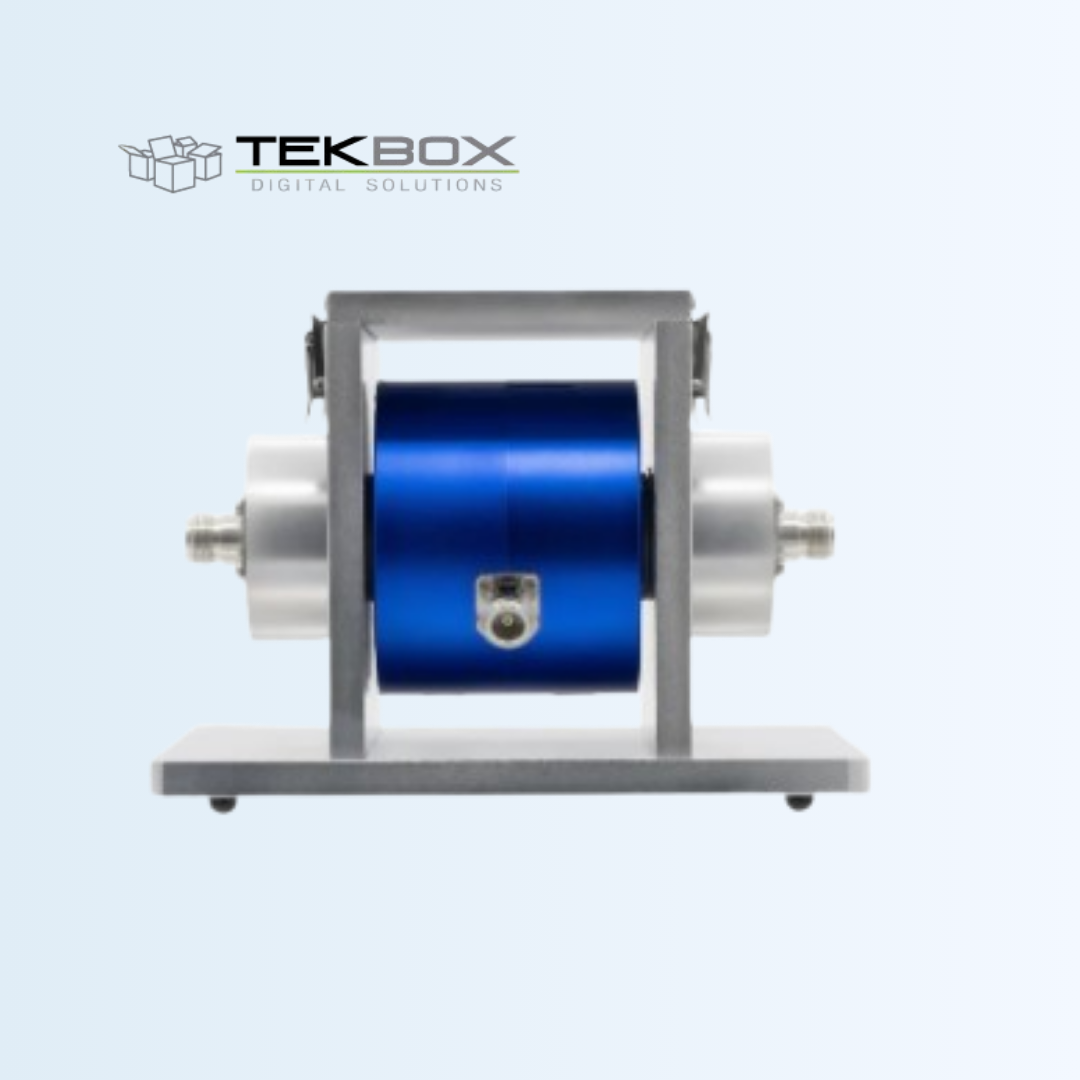

TBBCI1-200K280
Snap-on Bulk Current Injection Probe
The TBBCl1-200K280 Snap-On Bulk Current Injection Probe is a specialized probe designed for conducted immunity testing using Bulk Current Injection (BCI) methods. This snap-on style probe enables non-intrusive injection of RF current onto cables without disconnecting them, making it ideal for EMC immunity tests, troubleshooting, and system diagnostics. It supports a wide frequency range and allows consistent and repeatable current injection for compliance and pre-compliance evaluations.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Compliance | IEC / EN 61000-4-6 insertion loss specification for BCI clamps |
| Characterized frequency range | 10 kHz – 300 MHz |
| Insertion loss | 8 dB typ.; 50 Ohm system (100 Ohm loop impedance) |
| Transfer impedance | 26 dB Ohm typ.; 50 Ohm system (100 Ohm loop impedance) |
| Power rating | capable of injecting level 1, 2, 3 and stress level X up to 30V, 150 Ohm test set-up according to IEC/EN 61000-4-6 |
| Max. core temperature | 80 °C |
| Connector type | N female |
| Aperture diameter | 27 mm |
| Outside diameter | 92 mm |
| Height | 76 mm |
| Weight | 1.2 kg |
