- Non-intrusive mains harmonic current coupling.
- Designed for harmonic current measurement on AC power lines.
- Works with spectrum analyzers, power meters, and harmonic analyzers.
- Enables conducted emission and power quality analysis.
- Compact and rugged design for laboratory and field use.
- Provides proportional coupling for accurate harmonic detection.
TBMHA1
Mains Harmonics Current Coupler

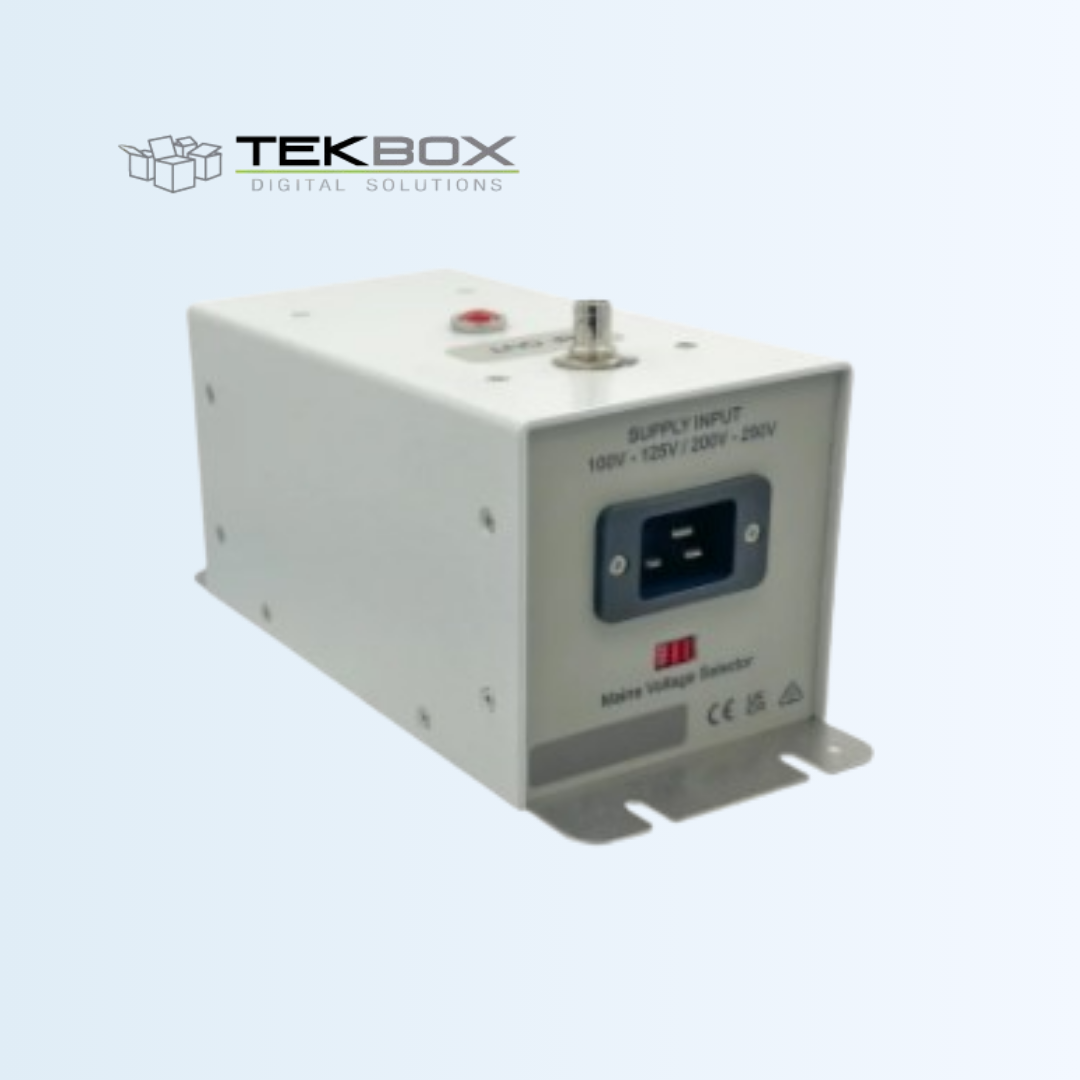

The TBMHA1 Mains Harmonics Current Coupler is a specialized device designed to measure harmonic currents on mains (AC power) conductors for EMC and power quality analysis. It provides a non-invasive coupling method that allows instruments such as spectrum analyzers, power meters, and harmonic analyzers to monitor and quantify harmonic content on power lines without breaking the circuit. This makes the TBMHA1 valuable for conducted emission testing, power quality diagnostics, and EMC investigations in industrial and laboratory environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Mains voltage range | 100 V – 120 V / 200 V – 240 V; mains voltage selection switch |
| Max. mains current | 16 A, depending on country specific mains output socket |
| Transducer factor | 50 mV/A with 50 Ohm load resistor (DC coupled) |
| Mains input socket | C19, 16 A |
| Mains output socket | country specific; CEE7/3 16 A (Schuko), NEMA 5-15 15 A, AS/NZS 3112:201 15 A, BS1363, 13A |
| Current output socket | BNC-Female |
| Dimensions | W x H x L 100 mm x 118 mm x 240 mm |
| Weight | 1.4 kg |
