- Non-intrusive conducted emission current measurement.
- Suitable alternative or complement to LISNs.
- Ideal for EMC diagnostics and troubleshooting.
- Fixed-aperture and snap-on versions available.
- Individually characterized trans-impedance.

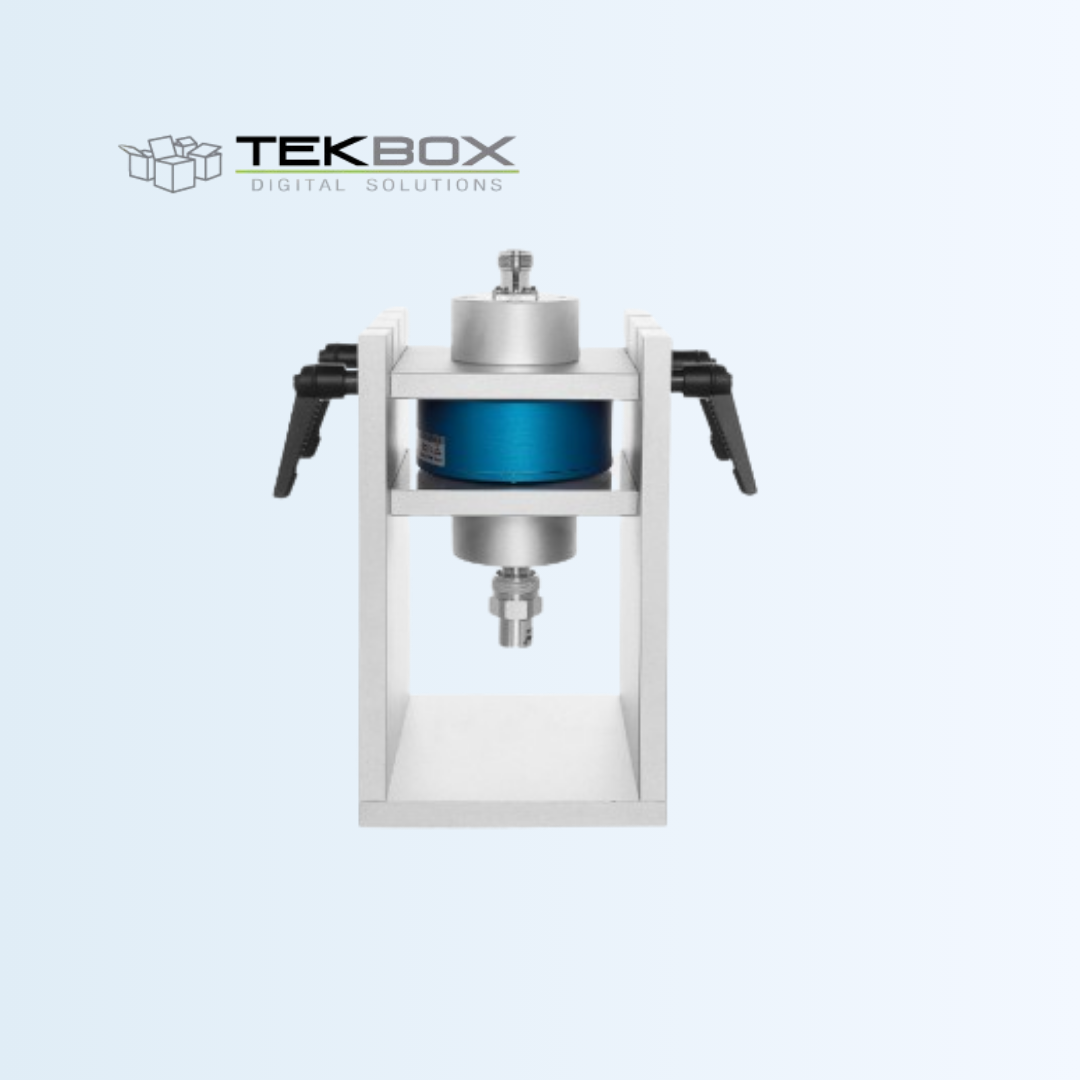

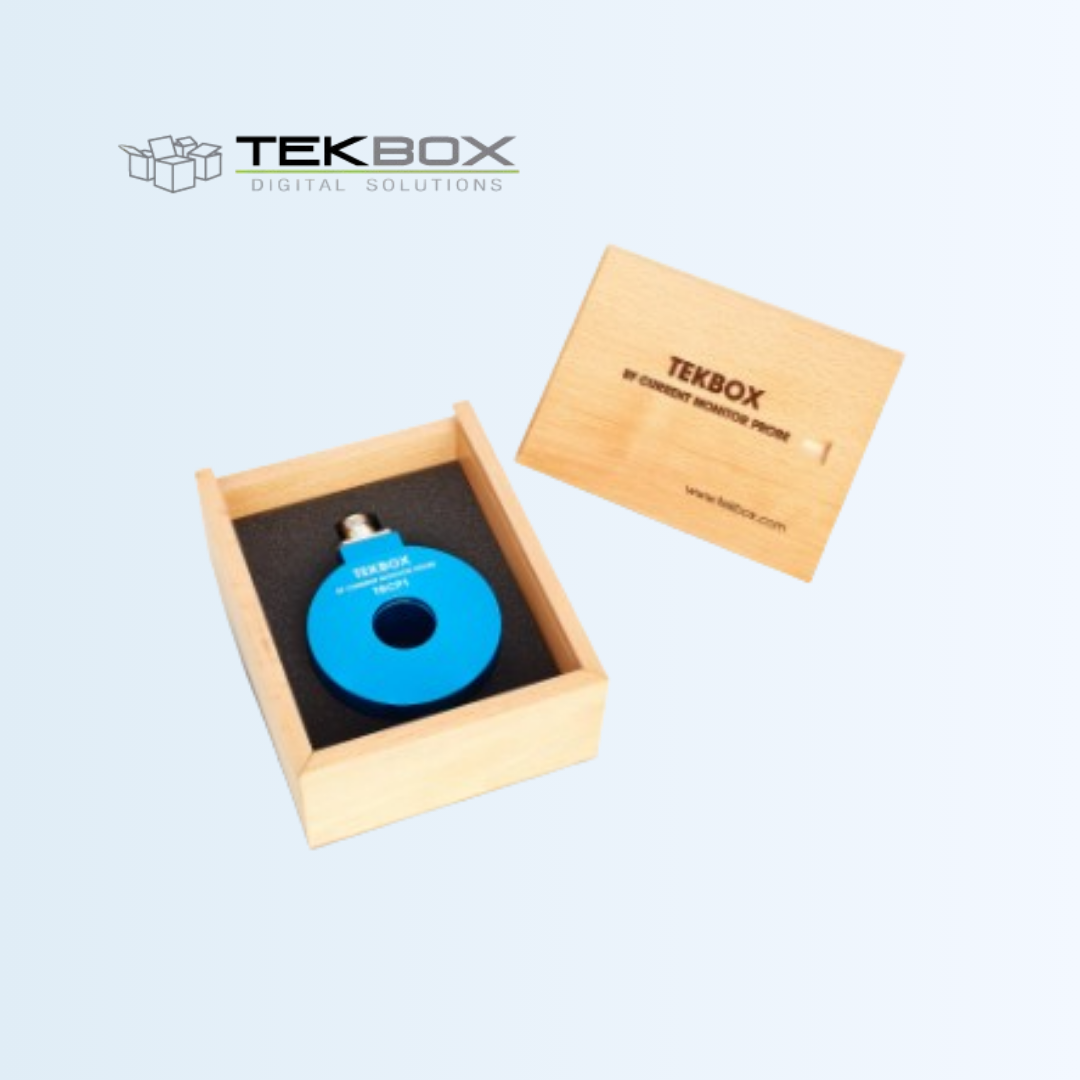

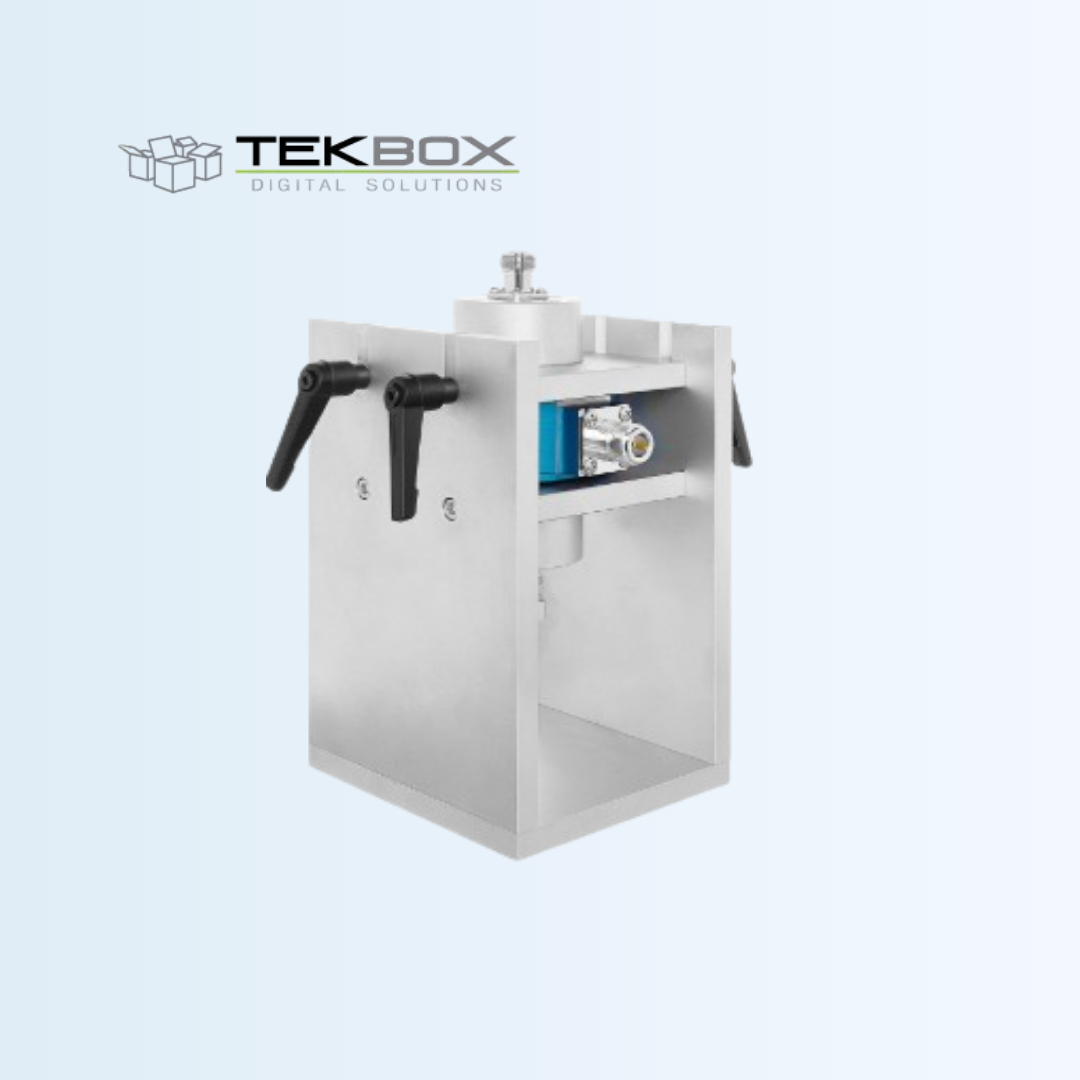

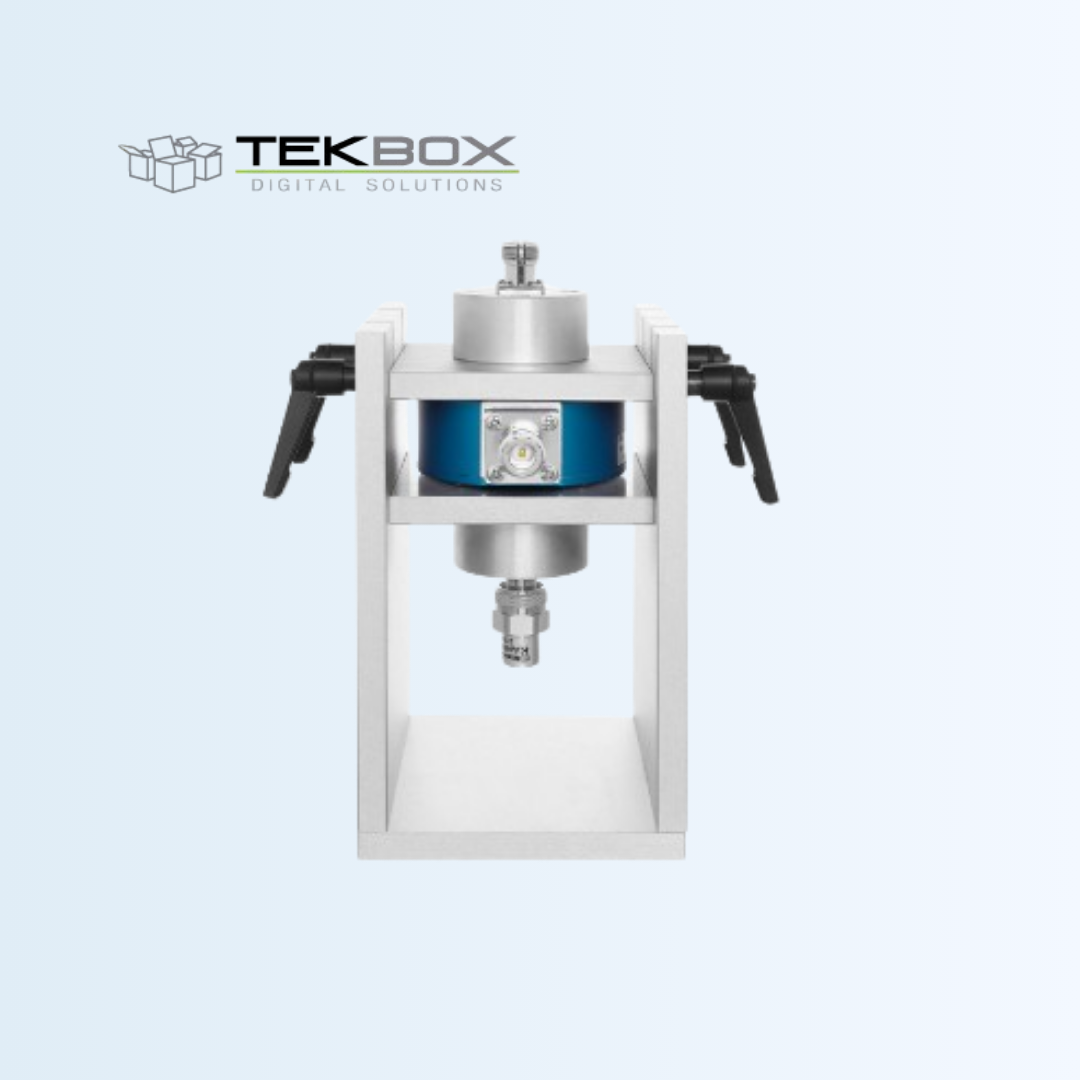

TBCP1-500
Fixed Aperture RF Current Monitoring Probes
The TBCP1-500 is a fixed aperture RF current monitoring probe The probe has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 1kHz to 500 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is 19 dB Ohm, with a 3dB bandwidth of 500 MHz.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 1 kHz to 500 MHz |
| Aperture diameter | 25 mm |
| Outside diameter | 76 mm |
| Height | 31 mm |
| Weight | 320 g |
| Connector type | N female |
| Transfer impedance | 19 dBΩ in the flat region, typ. |
| 3 dB bandwidth | 400 kHz -500 MHz, typ. |
| Max. primary current (DC – 400 Hz) | 80 A |
| Max. primary current (RF) | 3 A |
| Max. core temperature | 125 °C |
