- Snap-on design.
- Easy and fast installation.
- Non-intrusive conducted emission current measurement.
- Suitable alternative or complement to LISNs.
- Ideal for EMC diagnostics and troubleshooting.
- Fixed-aperture and snap-on versions available.
- Individually characterized trans-impedance.

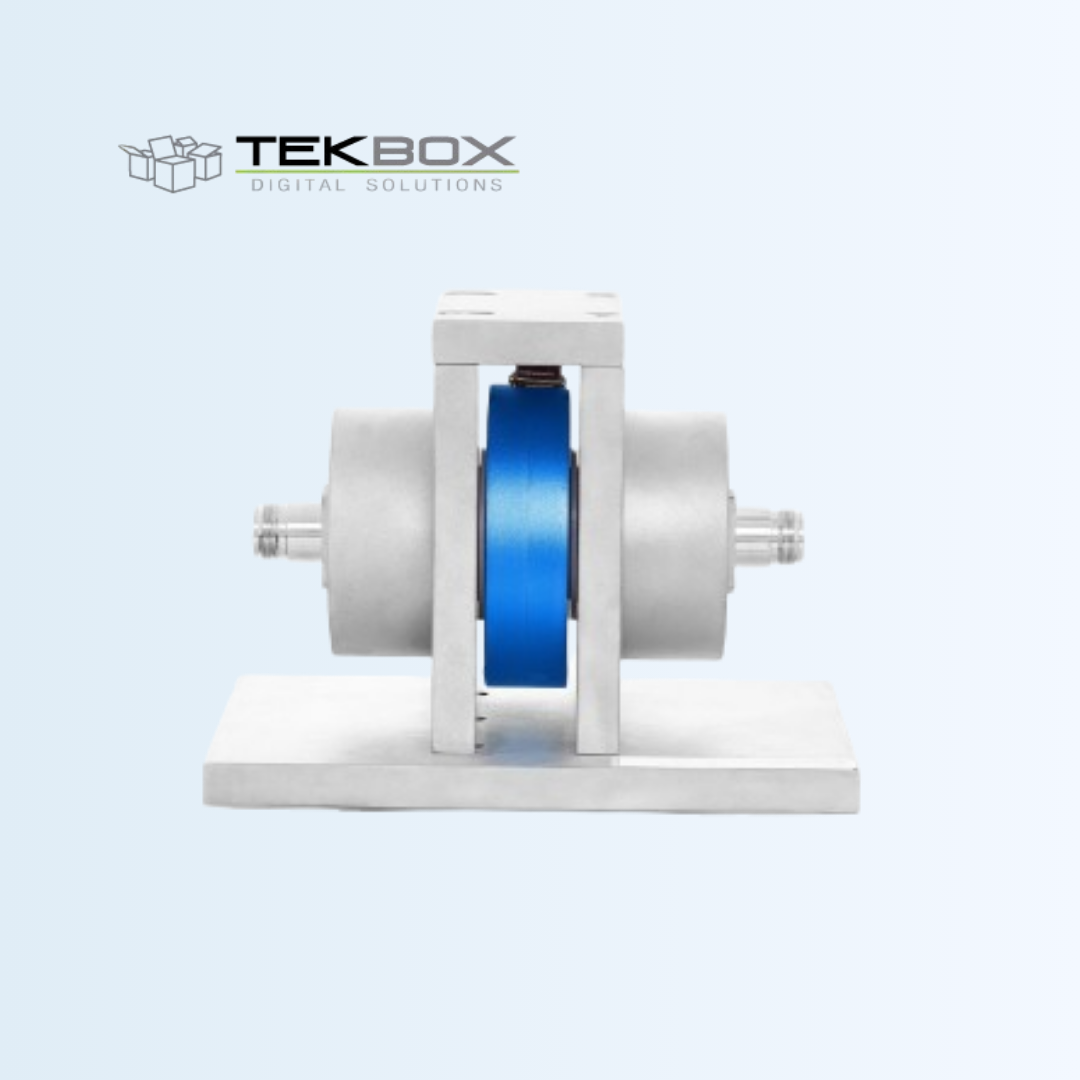

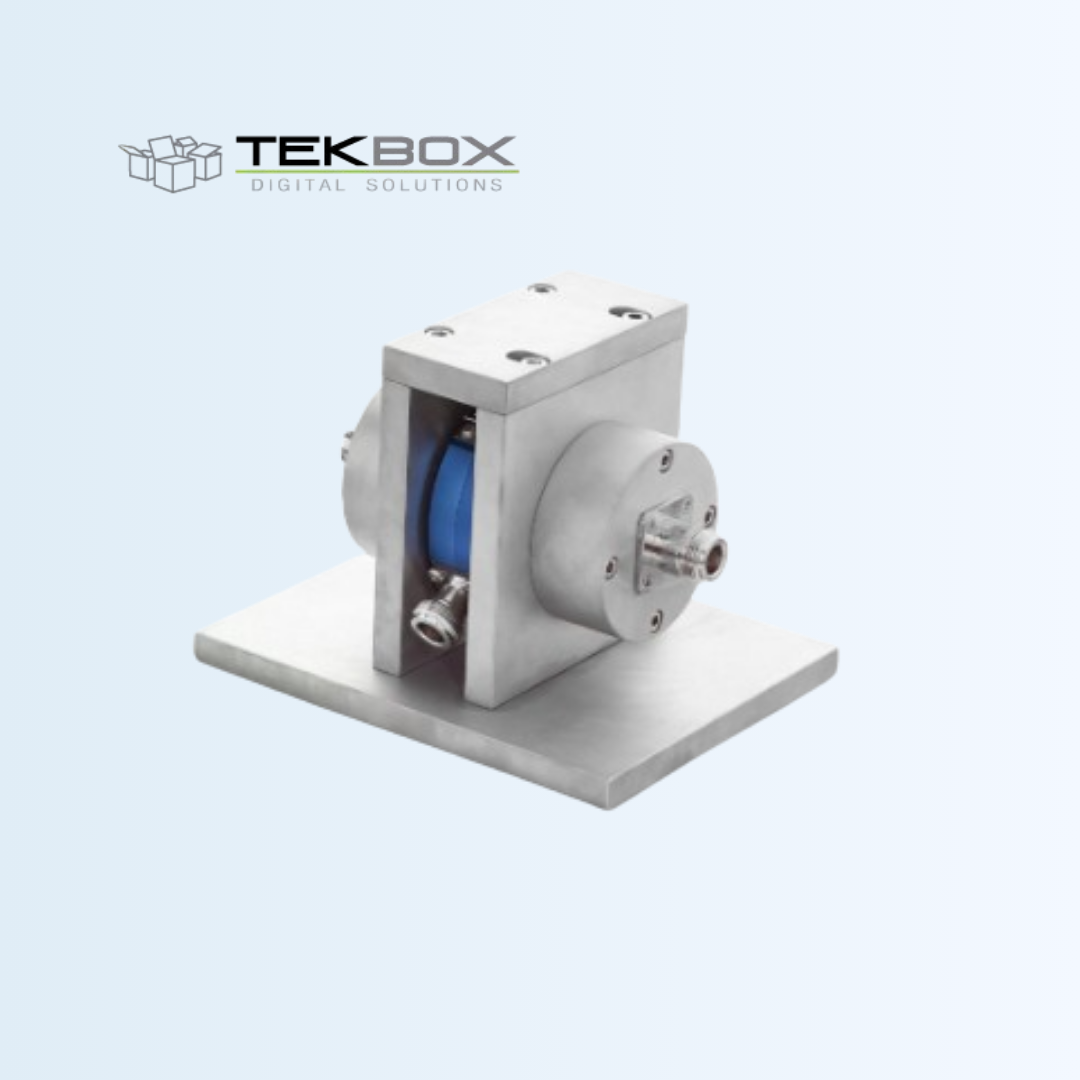

TBCP2-500
Snap On RF Current Monitoring Probes
The TBCP2-500 is a snap-on RF current monitoring probe. The probe has a ver flat response with a 3dB bandwidth of 500 MHz and is characterized and useable in the frequency range from 1 kHz to 600 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 16 dB Ohm with a 3dB bandwidth from 1 MHz to 500 MHz.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 1 kHz to 600 MHz |
| Aperture diameter | 32 mm |
| Outside diameter | 73 mm |
| Height | 20 mm |
| Weight | 320 g |
| Connector type | N female |
| Transfer impedance | 16 dBΩ in the flat region, typ. |
| 3 dB bandwidth | 1 MHz to 500 MHz, typ. |
| Max. primary current (DC – 400 Hz) | 80 A |
| Max. primary current (RF) | 3 A |
| Max. core temperature | 125 °C |
