- Non-intrusive conducted emission current measurement.
- Wide frequency coverage up to 1 GHz.
- Suitable alternative or complement to LISNs.
- Ideal for EMC diagnostics and troubleshooting.
- Fixed-aperture and snap-on versions available.
- Individually characterized trans-impedance.
TBCP1-200

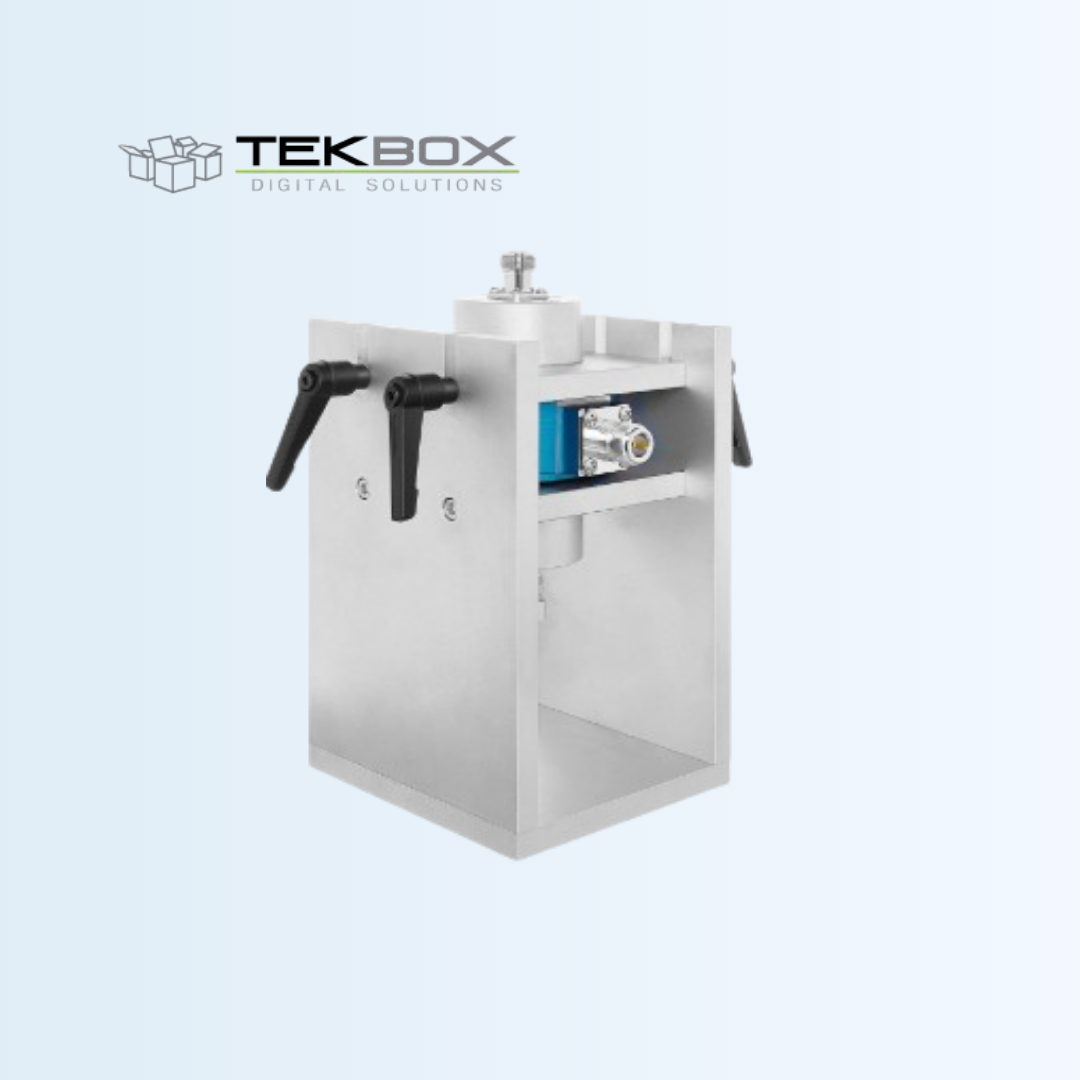

Fixed Aperture RF Current Monitoring Probes
The TBCP1-200 is a fixed aperture RF current monitoring probe. The probe has a 3dB bandwidth of approximately 200 MHz and is characterized and usable over the frequency range from 1 kHz to 500 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance. Its transfer impedance is > 17 dB Ohm with a 3 dB bandwidth from 40 kHz to 200 MHz.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 1 kHz to 500 MHz |
| Aperture diameter | 25 mm |
| Outside diameter | 76 mm |
| Height | 31 mm |
| Weight | 320 g |
| Connector type | N female |
| Transfer impedance | 17 dBΩ in the flat region, typ. |
| 3 dB bandwidth | 40 kHz -200 MHz, typ. |
| Max. primary current (DC – 400 Hz) | 80 A |
| Max. primary current (RF) | 3 A |
| Max. core temperature | 125 °C |
