- Non-intrusive conducted emission current measurement.
- Suitable alternative or complement to LISNs.
- Ideal for EMC diagnostics and troubleshooting.
- Fixed-aperture and snap-on versions available.
- Individually characterized trans-impedance.

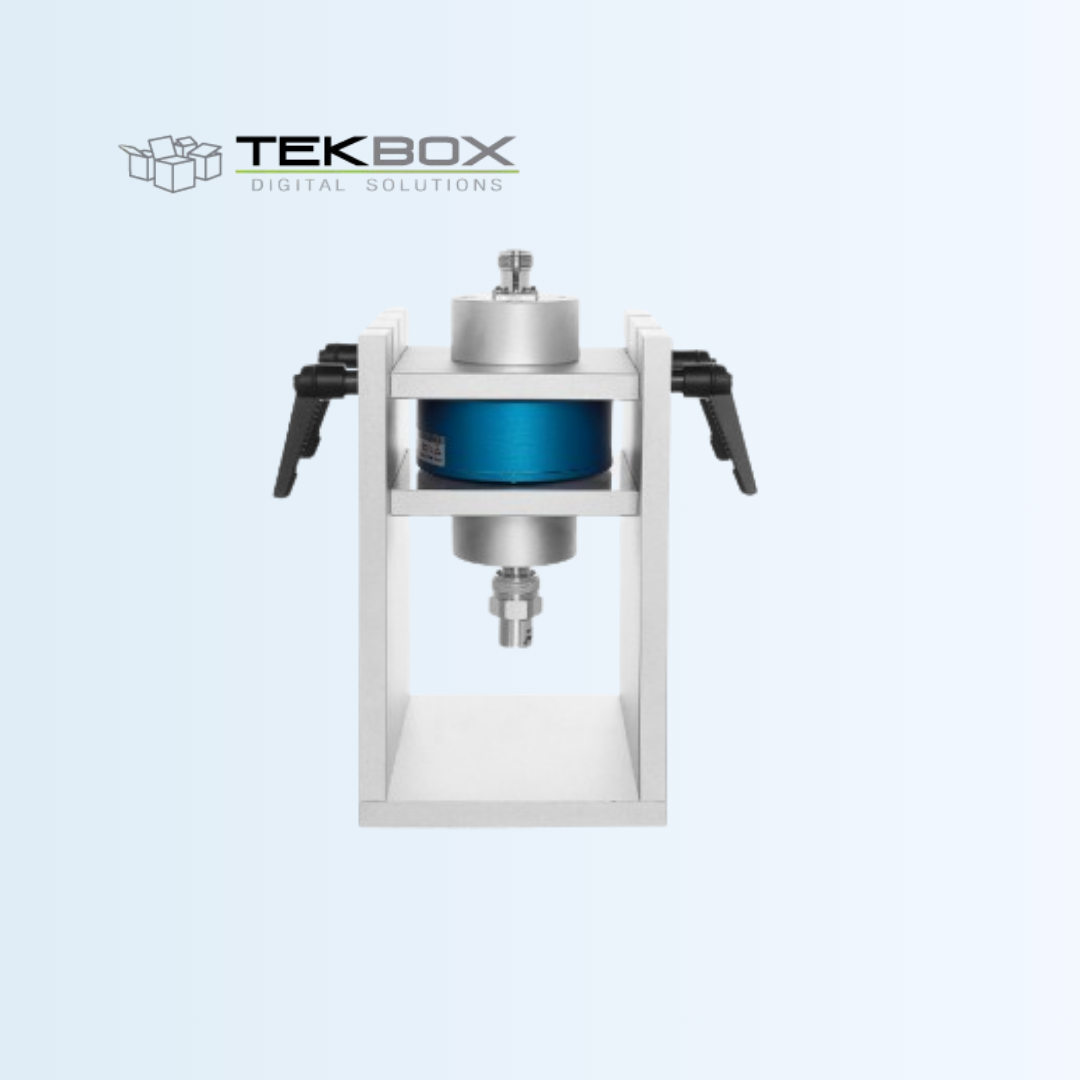

TBCP1-250
Fixed Aperture RF Current Monitoring Probes
The TBCP1-250 is a fixed aperture RF current monitoring probe. The probe has a very flat response with a 3dB bandwidth of 250 MHz and is characterized and usable over the frequency range from 1kHz to 300 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is > 16 dB Ohm in the range from 300 kHz to 250 MHz.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 1 kHz to 300 MHz |
| Aperture diameter | 25 mm |
| Outside diameter | 76 mm |
| Height | 31 mm |
| Weight | 320 g |
| Connector type | N female |
| Transfer impedance | 18 dBΩ in the flat region, typ. |
| 3 dB bandwidth | 300 kHz -200 MHz, typ. |
| Max. primary current (DC – 400 Hz) | 80 A |
| Max. primary current (RF) | 3 A |
| Max. core temperature | 125 °C |
