- Frequency range of 10 kHz to 400 MHz
- Fully compliant with DO-160/ FAA / MIL-STD 461/ CISPR 25/ CISPR 16
- 5 µH “Air-core” inductor to prevent saturation
- Individual Calibration Included
- Three-Year Warranty

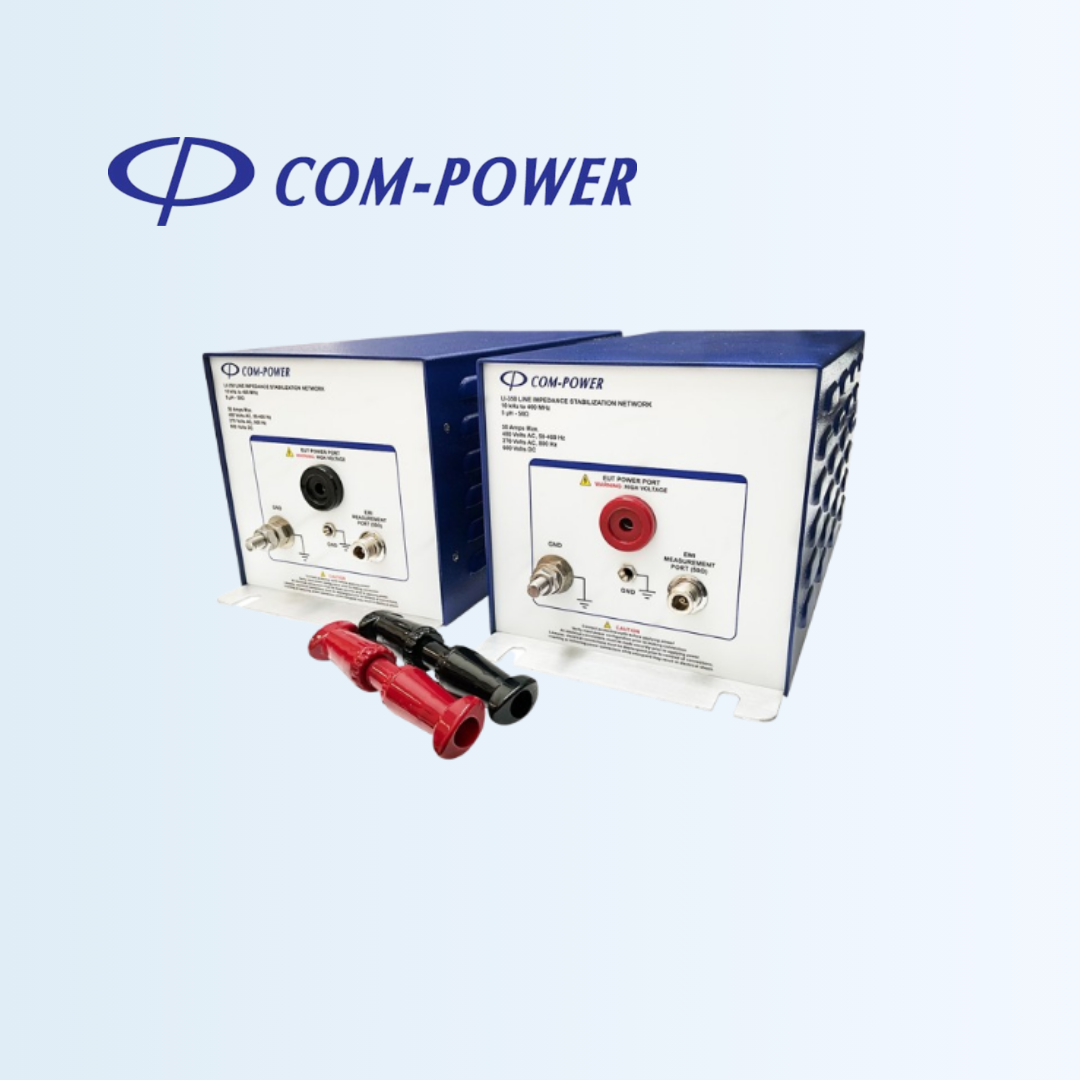

LI-3100
LISN (100 Amps) for DO-160, FAA, MIL-STD 461 & CISPR 25/16
The LI-3100 LISN is designed for power line conducted emissions compliance testing and complies with RTCA DO-160, MIL-STD-461F, CISPR 25, and CISPR 16-1-2. This 5 µH LISN provides stable, defined impedance and isolates the EUT from power source influences for accurate and repeatable measurements. It supports single-phase, dual-phase, DC, and 3-phase power systems, features SUPERCON shrouded sockets with color-coded plugs, uses air-core inductors to prevent saturation, and includes an unpainted mounting plate for effective grounding.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Product Name | Line Impedance Stabilization Network (LISN) |
| Specification | RTCA DO-160 / FAA / MIL-STD 461F / CISPR 25 / CISPR 16 |
| Application | Power Line conducted emission tests |
| Frequency Range | 10KHz - 400 MHz |
| RF Connector | 50 Ohms N-type (female) |
| Current Rating | 100 Amperes AC/DC |
| Voltage Rating | 480 VAC (Line to Ground), 600 VDC |
| Inductors | 5 microhenry (air-core) |
| Mains & EUT Connections | Superior Electric SUPERCON Shrouded sockets |
| Dimensions (each network) | 10 x 10 x 21 inches / 25.4 x 25.4 x 53.3 cm |
| Weight (each network) | 13 lbs / 5.9 kg |
| Insertion Loss | <0.5 dB (100 kHz to 108 MHz) |
