- Frequency range of 150 kHz to 30 MHz
- Fully compliant with CISPR 16-1-2 / ANSI C63.4
- “Air-core” inductors to prevent saturation
- Individual Calibration Included
- Three-Year Warranty

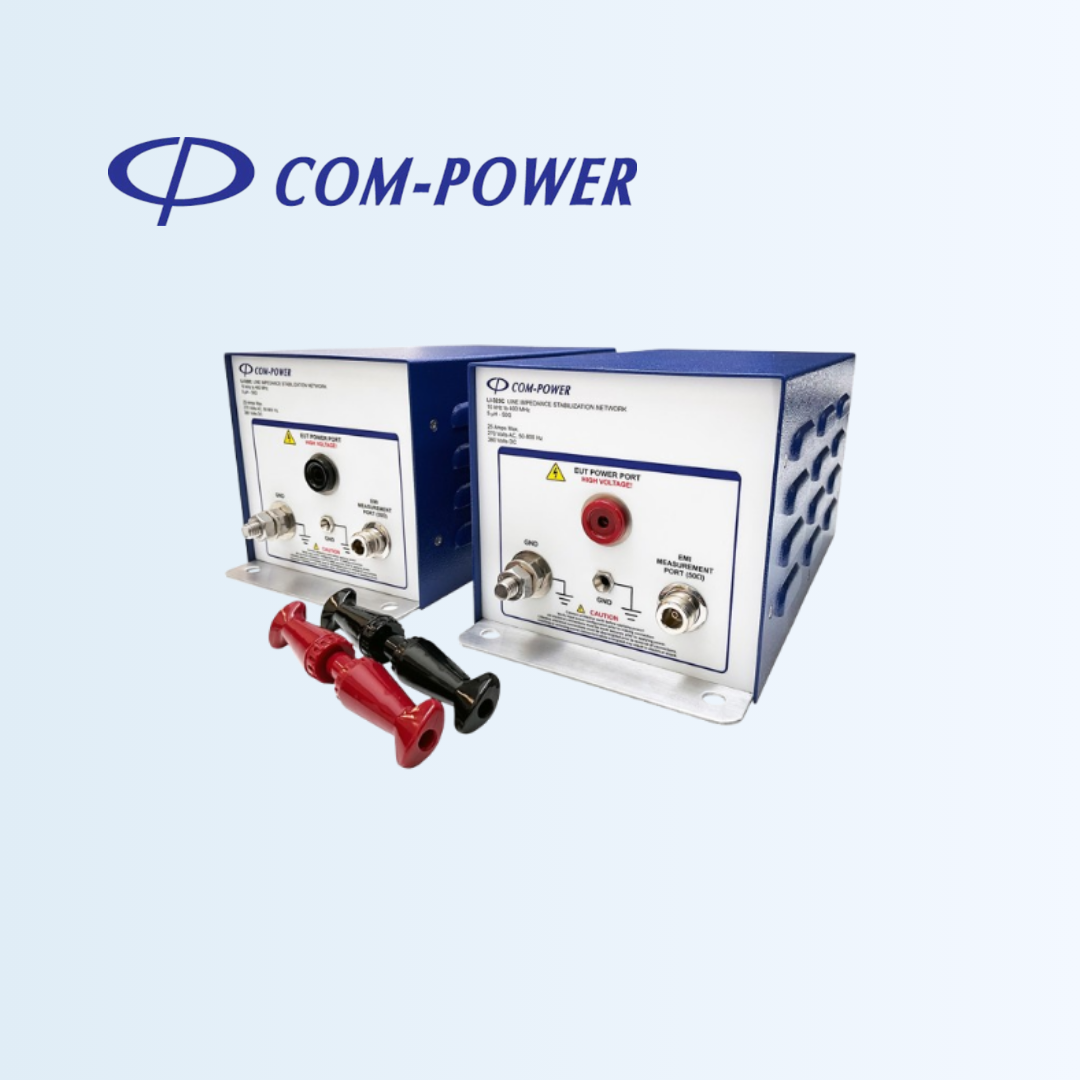

LI-150C
LISN 50 Amps for CISPR 16 & ANSI C63.4
The LI-150C LISN is designed for power line conducted emissions compliance testing and meets CISPR 16-1-2 and ANSI C63.4 standards. It provides stable, defined impedance and isolates the EUT from power source influences to ensure accurate and repeatable measurements. The system supports single-phase, dual-phase, DC, and 3-phase power configurations, features SUPERCON® shrouded sockets for safe connections, uses air-core inductors to prevent saturation, and includes an unpainted mounting plate for effective grounding.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Application | Power Line conducted emission tests |
| Frequency Range | 150KHz - 30 MHz |
| RF Connector | 50 Ohms N-type (female) |
| Current Rating | 50 Ampere AC, 35 Ampere DC |
| Voltage Rating | 270 VAC (Line to Ground), 380 VDC |
| Inductors | 50 microhenry (air-core) |
| Mains & EUT Connections | Superior Electric SUPERCON shrouded sockets |
| Dimensions (each network) | 15 x 10 x 10 inches / 38 x 25.4 x 25.4 cm |
| Weight (each network) | 14 lbs. / 6.3 kg |
| Insertion Loss | <0.5 dB (150 kHz - 30 MHz) |
| Isolation | > 40 dB (150 kHz - 30 MHz) |
