- Frequency range of 150 kHz to 30 MHz
- Fully compliant with CISPR 16-1-2 / ANSI C63.4
- “Air-core” inductors to prevent saturation
- Built-in Transient Limiter
- Individual Calibration Included
- Three-Year Warranty
LIN-120C

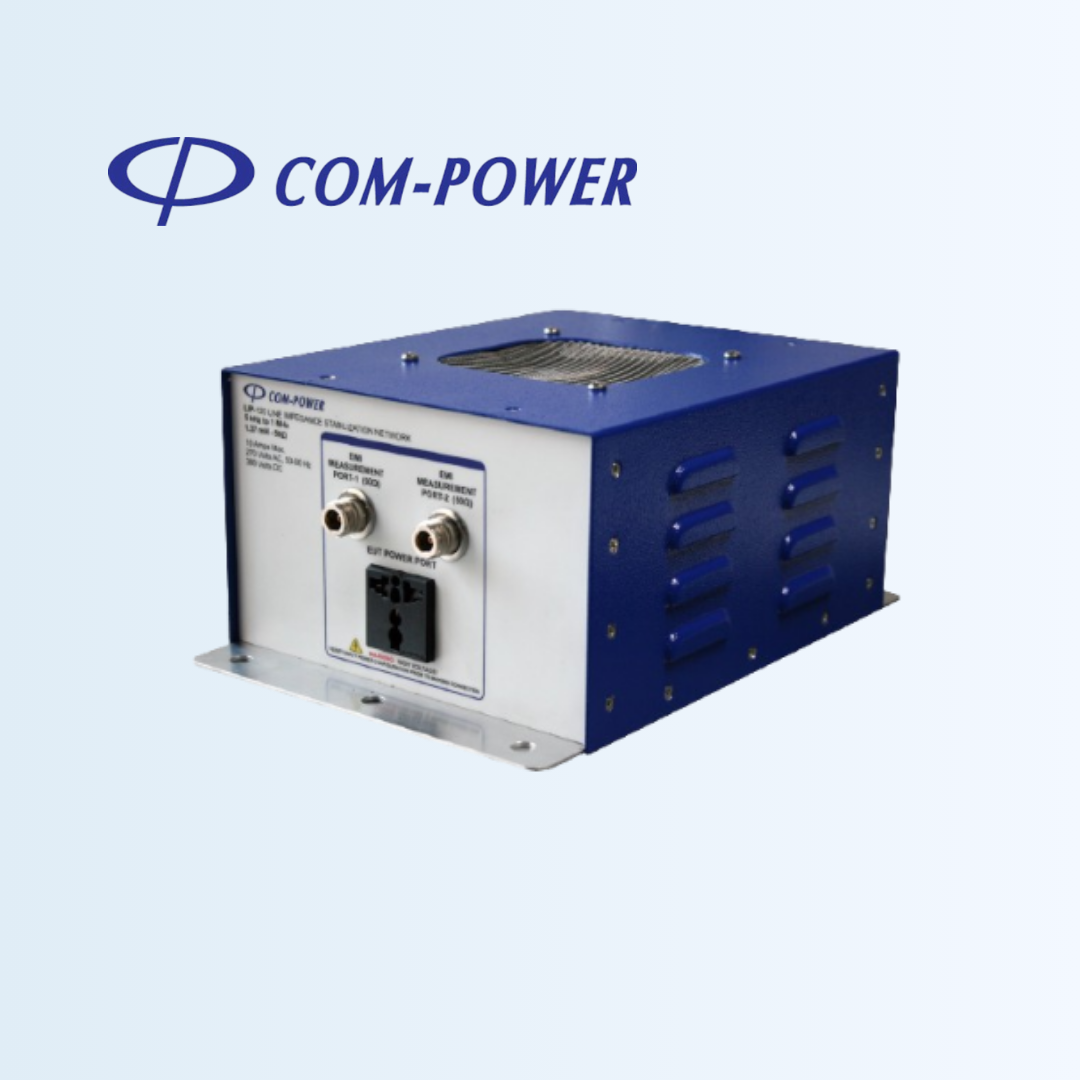

LISN 20 Amps for CISPR 16 & ANSI C63.4
The LIN-120C Line Impedance Stabilization Network (LISN) is in full compliance with both CISPR 16-1-2 and ANSI C63.4. It provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Product Name | Line Impedance Stabilization Network (LISN) |
| Specification | CISPR 16-1-2 / ANSI C63.4 |
| Application | Power Line conducted emission tests |
| Frequency Range | 150KHz - 30 MHz |
| RF Connector | 50 Ohms N-type (female) |
| Current Rating | 20 Amperes AC, 14 Amperes DC |
| Voltage Rating | 270 VAC (Line to Ground), 380 VDC |
| Inductors | 50 microhenry (air-core) |
| Mains & EUT Connections | IEC 60320, C-20 @Mains and Universal multi-configuration @ EUT |
| Dimensions (each network) | 14 x 13 x 6.5 inches / 35.5 x 33 x 16.5 cm |
| Weight (each network) | 10.5 lbs / 4.76 kg |
| Insertion Loss | <0.5 dB (150 kHz - 30 MHz) |
| Isolation | > 40 dB (150 kHz - 30 MHz) |
