- Designed for multicore fiber (MCF) testing in R&D, manufacturing, and field applications
- Industry-first 4-channel OTDR for measuring inter-core crosstalk
- Measures up to 4 cores simultaneously
- Visualizes loss, reflection, and crosstalk over distance
- Auto pass/fail function for quick fault identification
- Battery-powered for portable operation
- Single-ended measurement (only one side access required)
- No need to switch fiber connections during multi-core testing
- More efficient than conventional power meter methods
- Automatic pass/fail based on preset thresholds
- Improves testing efficiency, accuracy, and productivity

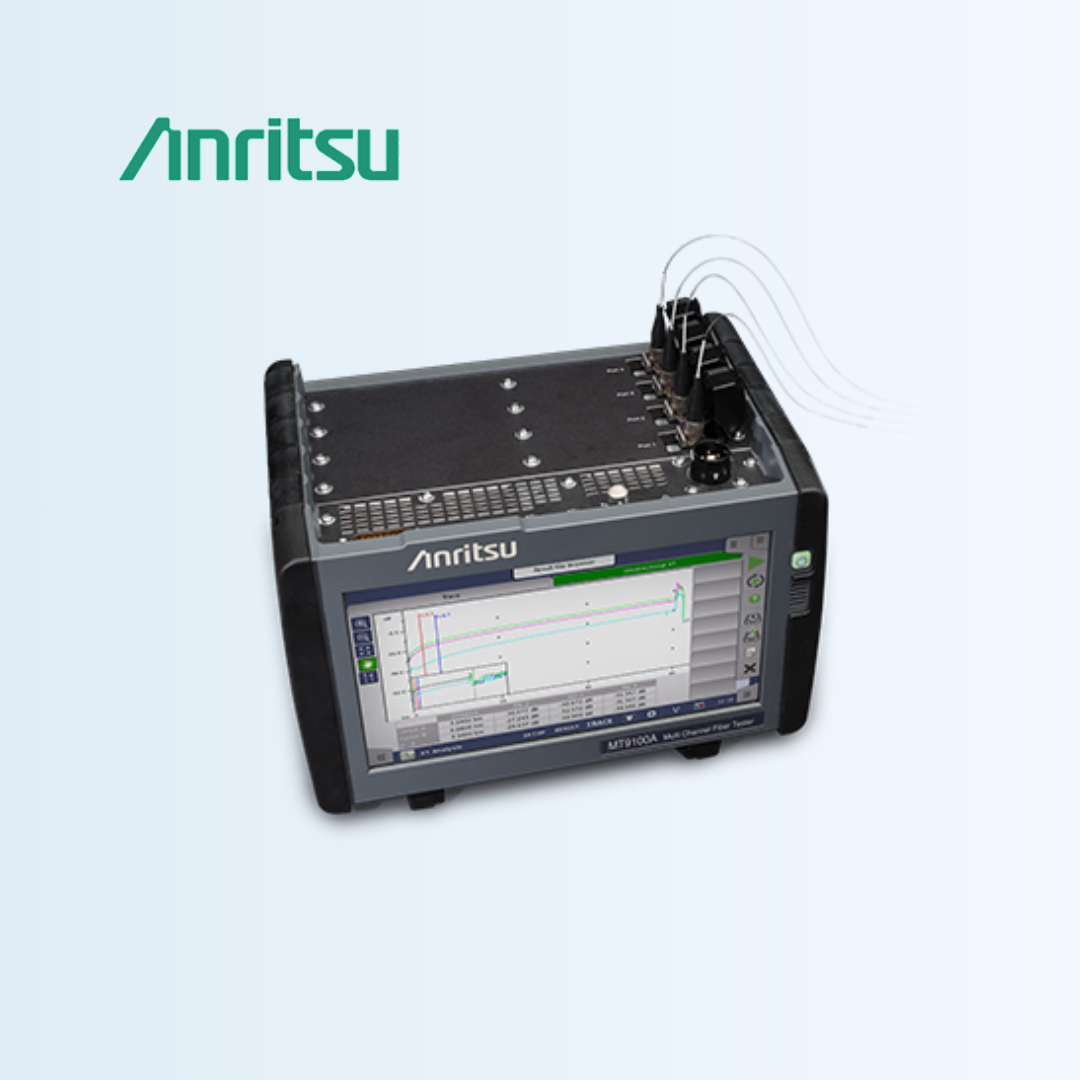

MT9100A
Multi Channel Fiber Tester
MT9100A enables simultaneous testing of up to four cores in a multicore optical fiber, supporting efficient and accurate evaluation from R&D and production to optical network building and operation.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Display | 9-inch WVGA (800 × 480) touchscreen |
| Interfaces | USB, Ethernet (RJ45) |
| Storage Capacity | 7 GB built-in memory |
| Battery | 10.80 V Li-ion, 18440 mAh |
| Operating Time | Approx. 6 hours |
| Charging Time | Approx. 9 hours |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤250 W |
| Dimensions | 257.5 × 163 × 185.3 mm |
| Weight | ≤5.9 kg (including battery) |
| Operating Temperature | 5°C to +45°C |
| Storage Temperature | -30°C to +60°C |
| Humidity | ≤85–90% RH (non-condensing) |
