TBLC08

50uH Line Impedance Stabilisation Network LISN CISPR 16

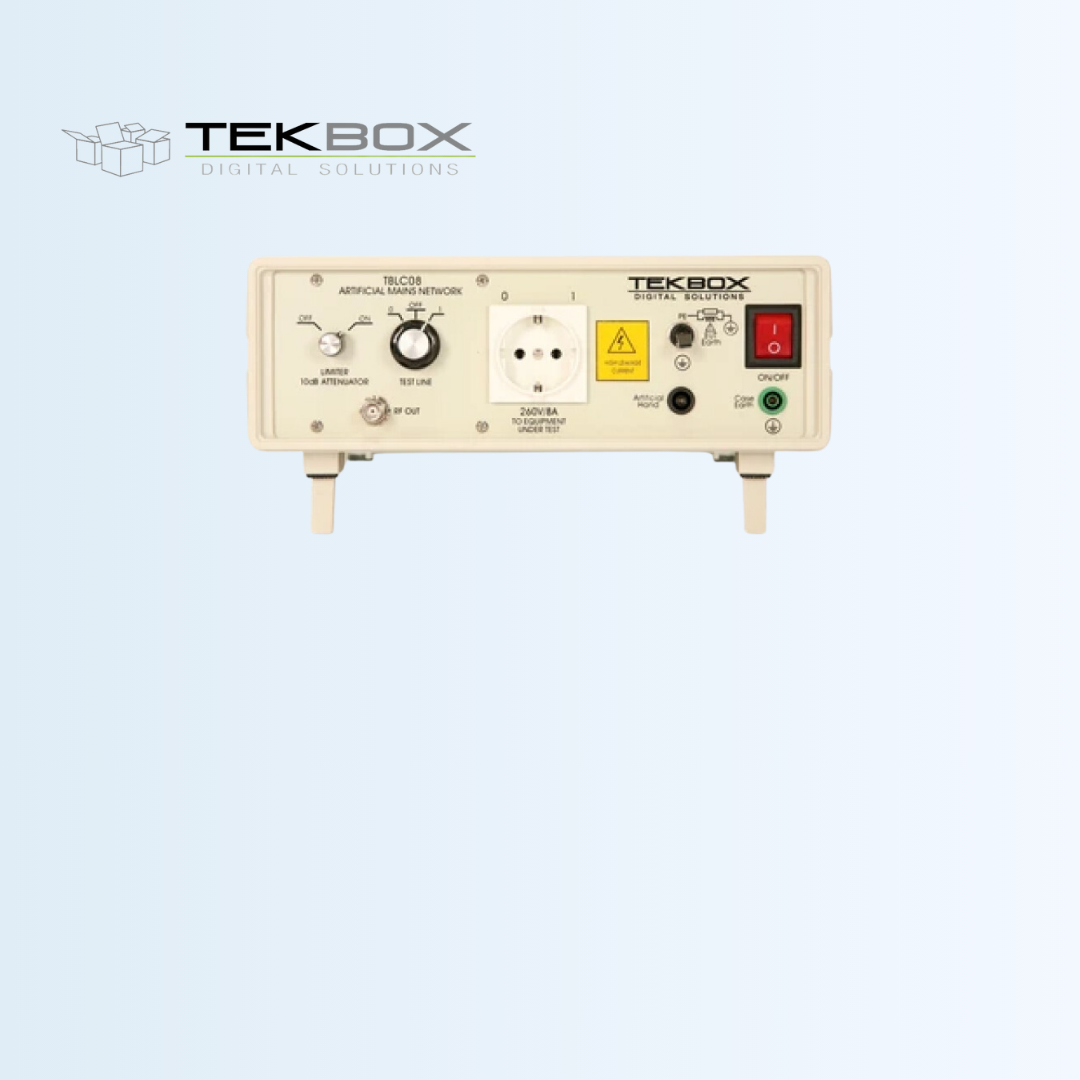

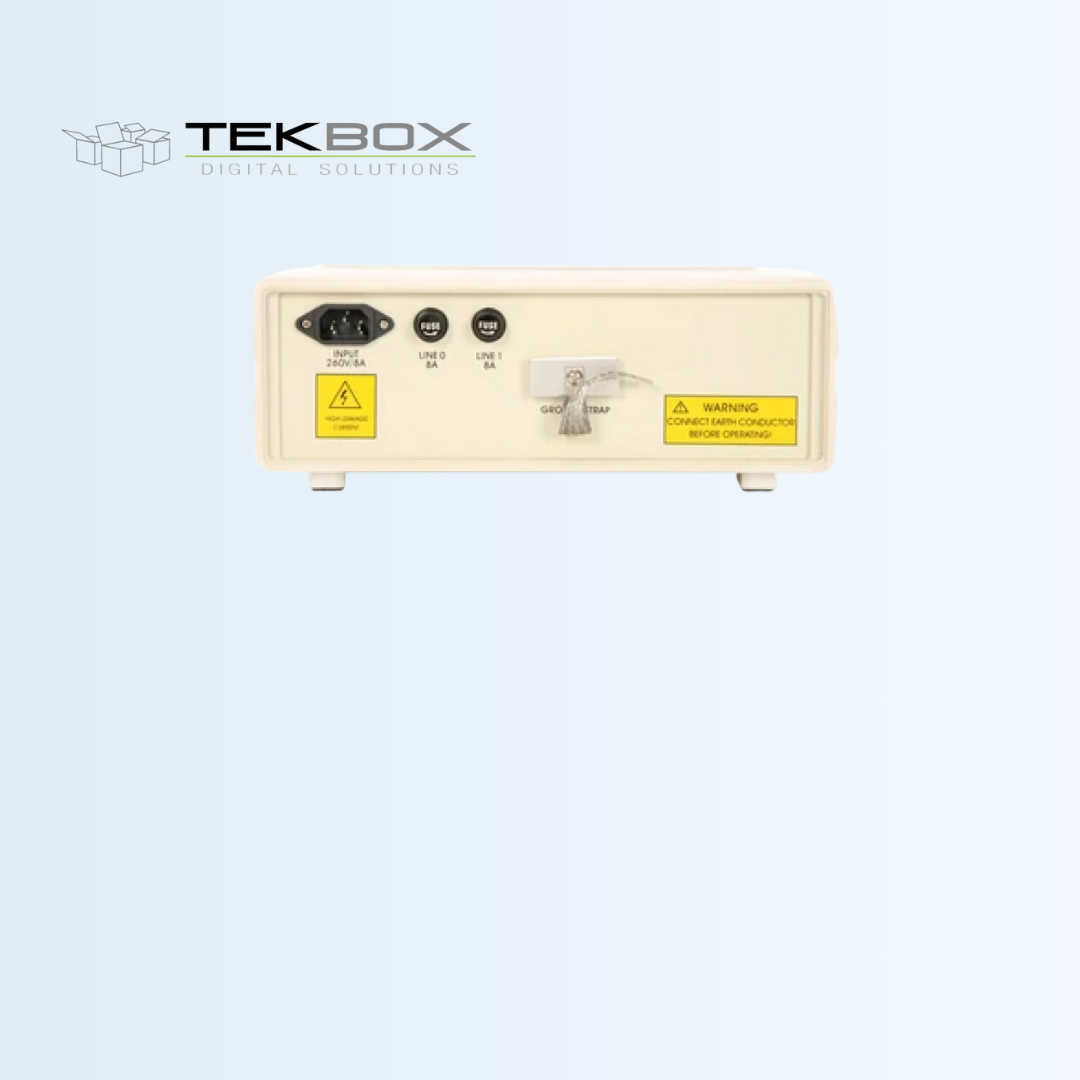

The TBLC08 is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR16 standard. The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 240V. Conducted noise can be measured on the phase and on the neutral conductor. The TBLC08 is equipped with a switchable limiter/attenuator and an artificial hand connection. The device is available with country-specific DUT connectors

  • Frequency range: 9 kHz to 30 MHz.
  • Impedance: 50 Ω ║ (50 µH + 5 Ω).
  • Artificial hand: 220 pF + 511 Ω.
  • Switchable PE: 50 Ω ║ 50 µH.
  • Limiter / attenuator: 150 kHz to 30 MHz; 10 dB.
  • Air core inductors.
  • Line voltage: max. 240V / 50 – 60 Hz, CAT ‖.
  • Max. current: 8A @ 23°C.
  • DUT socket: country specific.
  • Measurement connector: 50 Ω BNC.
  • Power connector: IEC 60320 C13.
  • Operating Temperature Range: +5°C + 40°C; 5% to 80% RH.
  • Safety: Safety Class I, IEC 1010-01.
